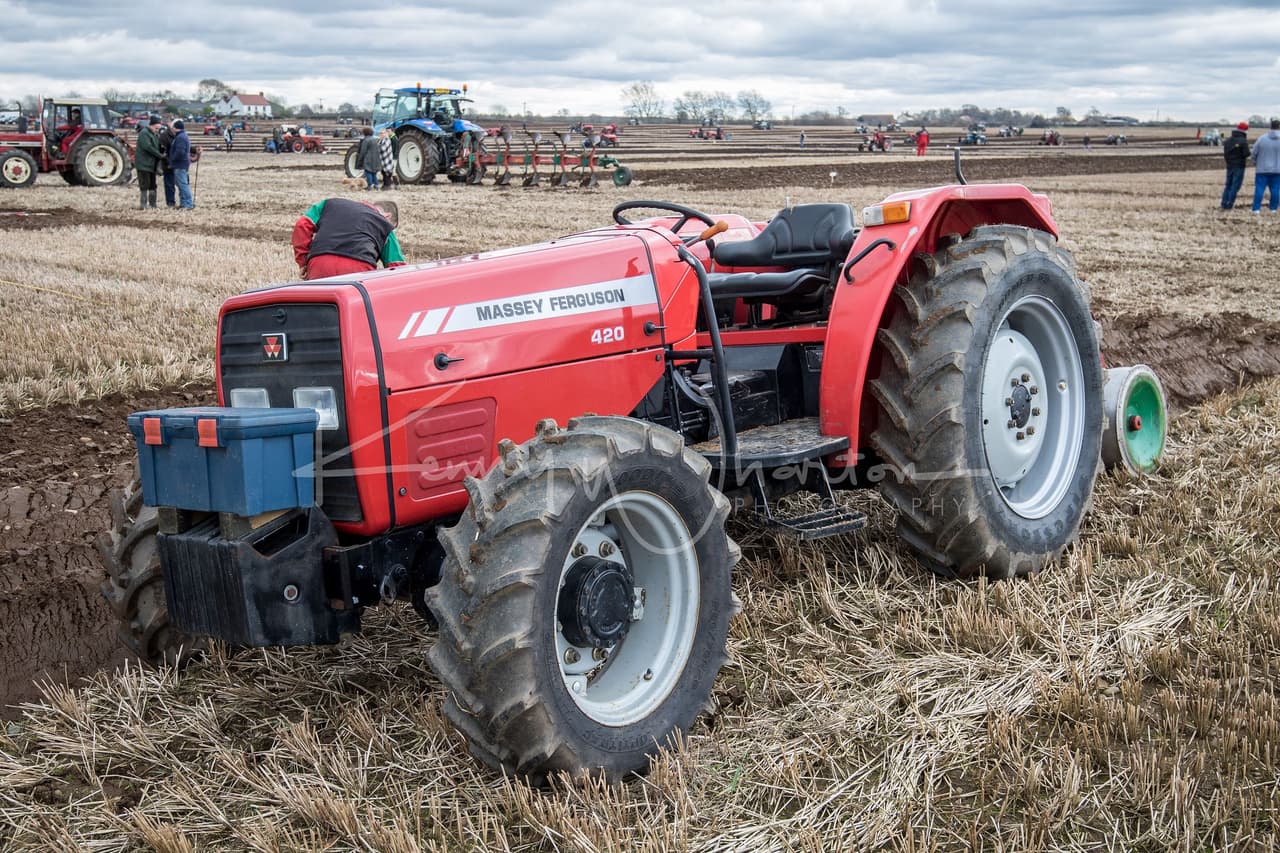

Massey Ferguson 420

Last Updated: June 2024

Overview

The Massey Ferguson 420 is a utility tractor that was manufactured from 2002 to 2012. It is equipped with a Perkins 1103C 33T engine that features a displacement of 201.4 cubic inches, produces 64 horsepower, and is both turbocharged and liquid-cooled. The tractor offers hydrostatic power steering and an 8-speed synchro shuttle transmission, providing 8 forward and reverse gears. Available in both 2WD and 4WD, the Massey Ferguson 420 has a wheelbase of 81.1 inches for 2WD models and 83.5 inches for 4WD models. The tractor's operating weight ranges from 5016 to 6338 pounds, depending on the configuration. It has standard ag tires with sizes 6.00-16 at the front and 13.6-28 for the 2WD rear. The height of the tractor is about 93.7 inches with ROPS and 93.5 inches with a cab. Overall, the Massey Ferguson 420 is designed for various utility tasks in farming and other agricultural operations.
Show more...

Key Specifications

Category: Utility

Power Output: 64

Transmission: Synchro shuttle

Drive Type: 2WD (assumed based on the chassis designation)

Operating Weight: 5016 to 6338 (provided range for all options)

Fuel Type: Diesel

Massey Ferguson 420 vs. Similar Tractors

Power Output
Average
Greater than 60% of similar tractors.
Operating Weight
Above Average
Greater than 88% of similar tractors.

Technical Specifications

Engine

Manufacturer
Perkins
Model
1103C 33T
Cooling Type
Liquid-cooled
Cylinder Orientation
Inline
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged
Cylinders
3
Displacement (ci)
201.4
Bore (in)
4.134
Stroke (in)
5
Rated RPM
2200
Power Output (hp)
64

Transmission

Type
Synchro shuttle
Forward Gears
8
Reverse Gears
8 (assumed based on the transmission's description as '8 forward and reverse')
Total Gears
-

Dimensions

Length (in)
138.2 (2WD) / 140.9 (4WD) (assuming the first value is for the 2WD version)
Width (in)
-
Height (in)
93.7 (ROPS) / 93.5 (cab) (assuming the height is universal)
Operating Weight (lb)
5016 to 6338 (provided range for all options)

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD (assumed chassis type for the 2WD option, as specific data for the 4WD chassis type is not provided)
Drive Type
2WD (assumed based on the chassis designation)
Steering Type
Hydrostatic power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
Unknown (assumed to be standard for a 6.00-16 tire)
Rear Tire Diameter (in)
-
Rear Tire Width (in)
Unknown (assumed to be standard for a 13.6-28 tire)
Front/Rear Rim Diameter (in)
-
Tire Type
Standard ag (based on the standard tires description)
Manufacture - End Year
2012
Hitch Type
Unknown (Based on the rear type '44958', it is not a standard hitch type code, such as Cat I, Cat II, etc.)
Hitch Category
Unknown (not explicitly provided, but Category 3 per instruction)
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
ROPS / Cab (both mentioned)
Starter Type
Electric
Brake Type
-
Hydraulic System Type
-
