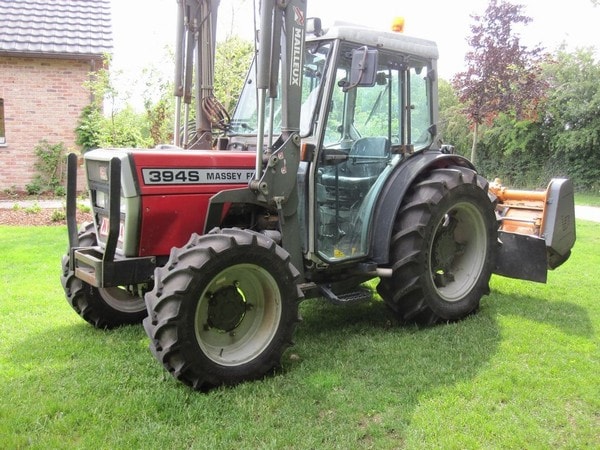

Massey Ferguson 394S

Last Updated: June 2024

Overview

The Massey Ferguson 394S is an Orchard/Vineyard tractor that was manufactured between 1994 and 1999. It features a 4-cylinder Perkins A4.248 diesel engine with a displacement of 248 cubic inches capable of delivering 81 horsepower and a peak-rated RPM of 2200. This tractor has a 4x2 2WD chassis and offers power steering for easier maneuverability. It is equipped with a synchro transmission with 12 forward and 4 reverse gears. The tractor's operating weight ranges from 5291 pounds for the 2WD variant to 5622 pounds for the 4WD version. With a length of 135.6 inches and width of 55.5 inches, the 394S fits well in its designated environment amongst orchards and vineyards, where tight spaces are common. The 394S's height to the top of the cab is 89.8 inches. The tractor runs on agricultural tires, with the front standard size being 7.5L-16 for the 2WD model, and the rear size 16.9-24 for both 2WD and 4WD variants.
Show more...

Key Specifications

Category: Agricultural, Orchard/Vineyard

Power Output: 81 hp

Transmission: Synchro

Drive Type: 2WD

Operating Weight: 5291 (2WD) | 5622 (4WD)

Fuel Type: Diesel

Massey Ferguson 394S vs. Similar Tractors

Power Output
Average
Greater than 57% of similar tractors.
Operating Weight
Excellent
Greater than 98% of similar tractors.

Technical Specifications

Engine

Manufacturer
Perkins
Model
A4.248
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Natural (assumed as “air cleaner: dry” usually indicates no forced induction)
Cylinders
4
Displacement (ci)
248
Bore (in)
3.975
Stroke (in)
5
Rated RPM
2200
Power Output (hp)
81 hp

Transmission

Type
Synchro
Forward Gears
12
Reverse Gears
4
Total Gears
-

Dimensions

Length (in)
135.6
Width (in)
55.5
Height (in)
89.8 (assumed to be the height to the top of the cab)
Operating Weight (lb)
5291 (2WD) | 5622 (4WD)

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
Unknown (standard size listed)
Front Tire Width (in)
Unknown (standard size listed)
Rear Tire Diameter (in)
Unknown (standard size listed)
Rear Tire Width (in)
Unknown (standard size listed)
Front/Rear Rim Diameter (in)
-
Tire Type
Ag (agricultural)
Manufacture - End Year
1999
Hitch Type
Three-Point Hitch (assumed from "Rear Type: II/I")
Hitch Category
Category 3
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
Unknown (expected to be ‘Open’ or 'Cab' based on heights provided)
Starter Type
Electric (from "Engine - Starter volts: 12")
Brake Type
-
Hydraulic System Type
-
