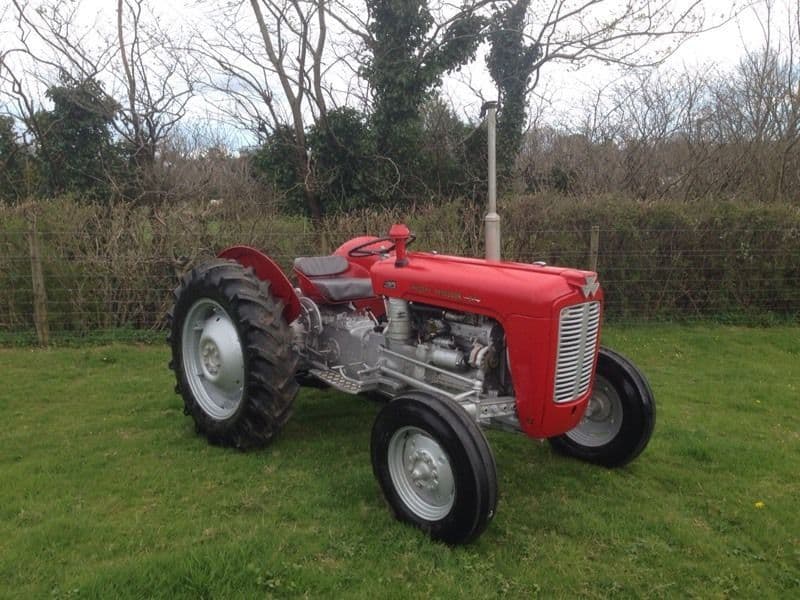

Massey Ferguson 37

Last Updated: June 2024

Overview

The Massey Ferguson 37 is a utility tractor known for its straightforward functionality and durability. With a 44.5 horsepower Perkins A3.152 diesel engine, this 2WD workhorse offers a gear drive transmission with 6 forward and 2 reverse gears, allowing for a variety of tasks from farming to landscaping. The engine displacement stands at 152.6 cubic inches with a bore and stroke of 3.60 and 5.00 inches, respectively, and operates at a rated RPM of 2150. Liquid-cooling systems maintain the optimal temperature for the engine during heavy use. With its operating weight of 3,179 pounds and a chassis configured as a 4x2 2WD, the Massey Ferguson 37 has been designed to handle a diverse range of agricultural needs efficiently. It exhibits an impressive ground clearance of 12.6 inches, indicating its usefulness in a variety of terrain. The size specifications show a length of 118.1 inches, a width of 63.8 inches, and a height of 54 inches, while the agricultural front tire measure 16 inches in diameter and 6 inches width, but the rear tire size specifics are not provided.
Show more...

Key Specifications

Category: Utility

Power Output: 44.5

Transmission: Gear

Drive Type: 2WD

Operating Weight: 3179

Fuel Type: Diesel

Massey Ferguson 37 vs. Similar Tractors

Power Output
Average
Greater than 41% of similar tractors.
Operating Weight
Below Average
Greater than 27% of similar tractors.

Technical Specifications

Engine

Manufacturer
Perkins
Model
A3.152
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
-
Cylinders
3
Displacement (ci)
152.6
Bore (in)
3.6
Stroke (in)
5
Rated RPM
2150
Power Output (hp)
44.5

Transmission

Type
Gear
Forward Gears
6
Reverse Gears
2
Total Gears
8

Dimensions

Length (in)
118.1
Width (in)
63.8
Height (in)
54
Operating Weight (lb)
3179

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
-
Coolant Capacity (qts)
10.8
Front Tire Diameter (in)
16
Front Tire Width (in)
6
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Agricultural
Manufacture - End Year
-
Hitch Type
-
Hitch Category
I
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric
Brake Type
-
Hydraulic System Type
-
