Massey Ferguson 3680

Last Updated: July 2024

Overview

The Massey Ferguson 3680 is a row-crop tractor produced between 1988 and 1991 by Massey Ferguson S.A., BP 307 Avenue Blaise Pascal 60026, Beauvais, France. It features a two-wheel-drive chassis with a wheelbase measurement of 115.7 inches. Equipped with a turbocharged Valmet Diesel engine, the 3680 generates a maximum power output of 161.9 HP at 2200 rpm and has a displacement of 452 cubic inches. The tractor boasts a 16-speed two-speed power shift transmission, which provides robust operational capabilities for various agricultural tasks. Additionally, the tractor has a lift capacity of 11,285 lbs at the hitch points and a maximum torque of 475.4 lb.-ft. at 1347 rpm with a 22.9% torque rise. The cab height reaches 115 inches, ensuring ample visibility for the operator. The tractor's hydraulic system delivers a maximum power of 18.0 HP at 2465 psi pressure with a pump delivery rate of 14.9 GPM.
Show more...

Key Specifications

Category: Row Crop

Power Output: 161.9 (Maximum Power)

Transmission: Two-speed power shift

Drive Type: 2WD

Operating Weight: 13525 (Unladen tractor mass)

Fuel Type: Diesel

Image Gallery

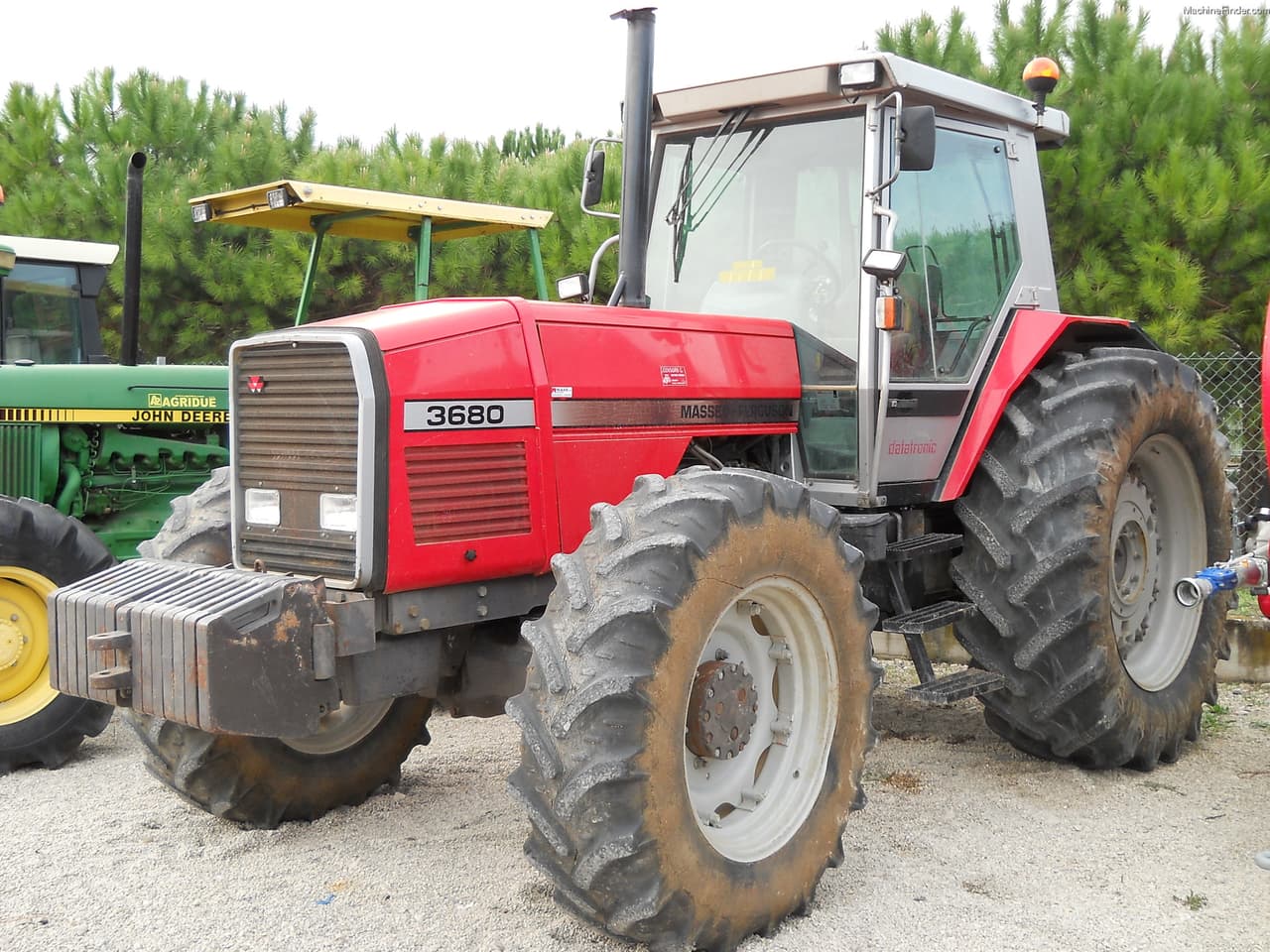

Massey Ferguson 3680 Tractor Massey Ferguson 3680 Tractor Massey Ferguson 3680 Tractor Massey Ferguson 3680 Tractor Massey Ferguson 3680 Tractor Massey Ferguson 3680 Tractor Massey Ferguson 3680 Tractor Massey Ferguson 3680 Tractor

Massey Ferguson 3680 vs. Similar Tractors

Power Output
Average
Greater than 66% of similar tractors.
Hitch Capacity
Average
Greater than 62% of similar tractors.
Operating Weight
Above Average
Greater than 86% of similar tractors.

Technical Specifications

Engine

Manufacturer
Valmet Diesel
Model
Valmet 612DS
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged
Cylinders
6
Displacement (ci)
452
Bore (in)
4.25
Stroke (in)
5.28
Rated RPM
2200
Power Output (hp)
161.9 (Maximum Power)

Transmission

Type
Two-speed power shift
Forward Gears
16
Reverse Gears
16
Total Gears
-

Dimensions

Length (in)
202.3 (2WD), 202 (4WD)
Width (in)
94.7
Height (in)
115 (cab height)
Operating Weight (lb)
13525 (Unladen tractor mass)

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
Hydrostatic power
Coolant Capacity (qts)
31.6
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Standard tires (ag)
Manufacture - End Year
1991
Hitch Type
-
Hitch Category
III
Hitch Position
Rear
Hitch Capacity (lb)
11285 lbs
Operator Station Type
Cab
Starter Type
Electric Starter
Brake Type
-
Hydraulic System Type
-

Test Results

Nebraska Tractor Test Laboratory - Test Date: March, 1989

Maximum Power and Fuel Consumption

  • Maximum Power: 161.9 HP (120.7 kW) at 2200 rpm
  • Fuel Consumption at Maximum Power: 9.55 Gal/hr (36.15 l/h) with a fuel efficiency of 0.414 lb/hp.hr (0.252 kg/kW.h)
  • Type of Fuel: No. 2 Diesel

Drawbar Performance

  • Drawbar Power in 8th Gear (4T): 131.05 HP (97.75 kW) with a drawbar pull of 9870 lbs (43.9 kN) and a speed of 5.66 mph (9.11 km/h)
  • Fuel Consumption in 8th Gear: 0.424 lb/hp.hr (0.258 kg/kW.h) with a fuel efficiency of 16.60 Hp.hr/gal (3.27 kW.h/l)

Torque and Engine Performance

  • Maximum Torque: 475.4 lb.-ft. (644.5 Nm) at 1347 rpm
  • Torque Rise: 22.9%

Hydraulic Performance

  • Maximum Force Exerted: 11285 lbs (50.2 kN) at hitch points
  • Pump Delivery Rate: 14.9 GPM (56.3 l/min) at minimum pressure
  • Hydraulic Power: 18.0 HP (13.4 kW) at delivery pressure of 2465 psi (170 bar)

Sound Level

  • Gear Closest to 4.7 mph: 5th Gear (2T + S)
  • Maximum Sound Level: 75.0 dB(A)
  • Transport Speed (No Load): 86.0 dB(A)
  • Bystander Sound Level: 75.0 dB(A)



Nebraska Tractor Test Lab.(1989).Nebraska Summary S072 for Massey Ferguson 3680 Diesel. Lincoln, NE: Nebraska Tractor Test Laboratory. Retrieved from https://digitalcommons.unl.edu/tractormuseumlit/2683
