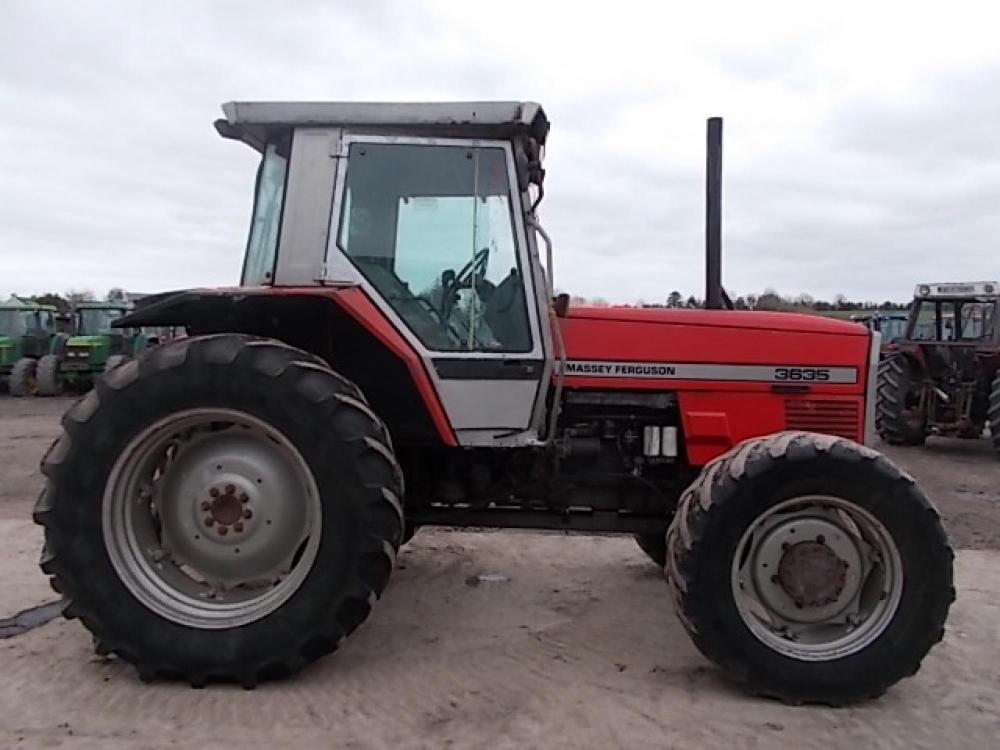

Massey Ferguson 3635

Last Updated: June 2024

Overview

The Massey Ferguson 3635 is a multi-purpose utility tractor that is versatile enough to handle various farming tasks. It comes with a choice of a 6-cylinder Perkins 1006.T engine or a 3-cylinder AGCO SisuDiesel 33 DT engine, both offering turbocharged diesel performance and liquid cooling to ensure reliable operation under a broad range of conditions. The tractor offers an 8-speed SynchroShuttle transmission which allows for smooth shifting and efficient power delivery. With its power steering and 2WD chassis, maneuverability is straightforward. This tractor's hydraulic system is based on an open-center design, providing adequate flow for operating implements. The tractor's operator station is designed with comfort in mind, available in both ROPS and cab configurations. An electric starter ensures reliable ignition, while the Category II/I hitch system makes it compatible with a variety of attachments. With a robust frame and a weight range between 5071 to 7056 pounds, the Massey Ferguson 3635 is designed to tackle a broad spectrum of agricultural requirements effectively.
Show more...

Key Specifications

Category: Utility

Power Output: 78 / 135

Transmission: SynchroShuttle

Drive Type: 2WD

Operating Weight: 5071 / 6174 / 5512 / 7056

Fuel Type: diesel

Massey Ferguson 3635 vs. Similar Tractors

Power Output
Excellent
Greater than 99% of similar tractors.
Hitch Capacity
Above Average
Greater than 78% of similar tractors.
Operating Weight
Excellent
Greater than 99% of similar tractors.

Technical Specifications

Engine

Manufacturer
Perkins / AGCO SisuDiesel
Model
1006.T / 33 DT
Cooling Type
liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
diesel
Induction Type
turbocharged
Cylinders
3-Jun
Displacement (ci)
365 / 201
Bore (in)
3.937 / 4.252
Stroke (in)
5.00 / 4.724
Rated RPM
2200
Power Output (hp)
78 / 135

Transmission

Type
SynchroShuttle
Forward Gears
8
Reverse Gears
8
Total Gears
-

Dimensions

Length (in)
148
Width (in)
76
Height (in)
101.18
Operating Weight (lb)
5071 / 6174 / 5512 / 7056

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
-
Hitch Type
Cat I & II
Hitch Category
II/I
Hitch Position
-
Hitch Capacity (lb)
5515 lbs
Operator Station Type
ROPS / Cab
Starter Type
electric
Brake Type
-
Hydraulic System Type
open center
