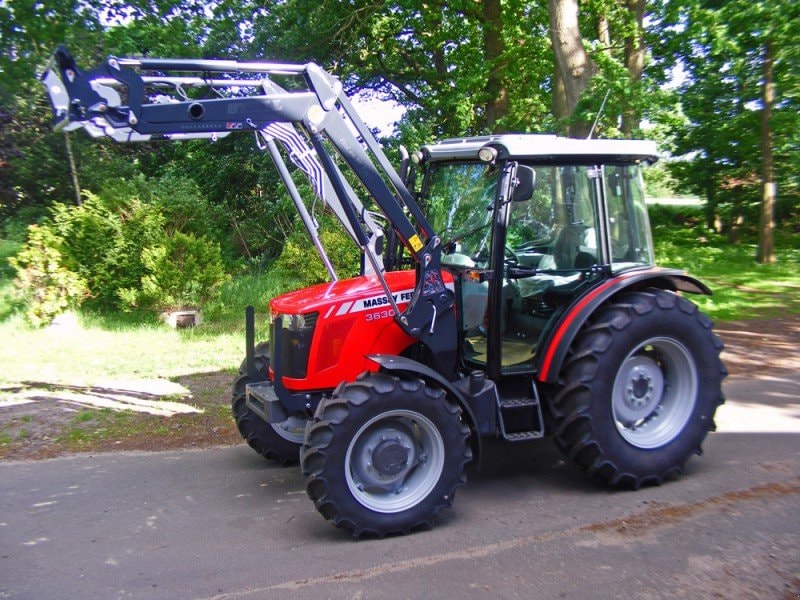

Massey Ferguson 3630A

Last Updated: September 2024

Overview

The Massey Ferguson 3630A is a versatile utility tractor designed for various farm tasks. It features a 2WD chassis with hydrostatic power steering, making it easy to maneuver. The tractor is powered by an AGCO Power 33CTA engine, which is a 3-cylinder, liquid-cooled diesel engine with common rail direct injection. This engine produces 76 hp at 2200 rpm, offering above-average power for its class.

The 3630A comes with a mechanical shuttle transmission that provides 12 forward and 12 reverse gears, giving operators plenty of options for different jobs. It has a rear Type II/I hitch with Category 2 compatibility, suitable for attaching various implements. The tractor's compact size, with a length of 147.3 inches and width of 65 inches, allows it to work in tight spaces. Weighing 6239 lb, it offers good stability without being too heavy. The 3630A is equipped with standard agricultural tires and features a ROPS (Roll-Over Protective Structure) for operator safety. Additional features include a cab height of 98.8 inches and a wheelbase of 81.9 inches, contributing to its overall stability and comfort.
Show more...

Key Specifications

Category: Utility

Power Output: 76 hp (56.7 kW)

Transmission: Mechanical shuttle

Drive Type: 2WD

Operating Weight: 6239 lb (2830 kg)

Fuel Type: Diesel

Massey Ferguson 3630A vs. Similar Tractors

Power Output

The Power Output for the Massey Ferguson 3630A is Above Average. It is greater than 73% of similar Utility tractors in our database.

Horsepower distribution of Utility tractors

(across 1.0K+ tractors in our database)

Operating Weight

The Operating Weight for the Massey Ferguson 3630A is Average. It is greater than 63% of similar Utility tractors in our database.

Operating weight distribution of Utility tractors

(across 1.0K+ tractors in our database)

Engine Displacement

The Engine Displacement for the Massey Ferguson 3630A is Average. It is greater than 58% of similar Utility tractors in our database.

Engine displacement distribution of Utility tractors

(across 1K+ tractors in our database)

Engine Rated RPM

The Engine Rated RPM for the Massey Ferguson 3630A is Below Average. It is greater than 29% of similar Utility tractors in our database.

Engine rated RPM distribution of Utility tractors

(across 1K+ tractors in our database)

Technical Specifications

Engine

Manufacturer
AGCO Power
Model
33CTA
Cooling Type
Liquid-cooled
Fuel Type
Diesel
Induction Type
Common rail direct injection
Cylinders
3
Displacement
201 ci (3.3 L)
Bore
4.25 in (108.0 mm)
Stroke
4.72 in (120.0 mm)
Rated RPM
2200
Power Output
76 hp (56.7 kW)

Transmission

Type
Mechanical shuttle
Forward Gears
12
Reverse Gears
12

Drivetrain

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
Hydrostatic power
