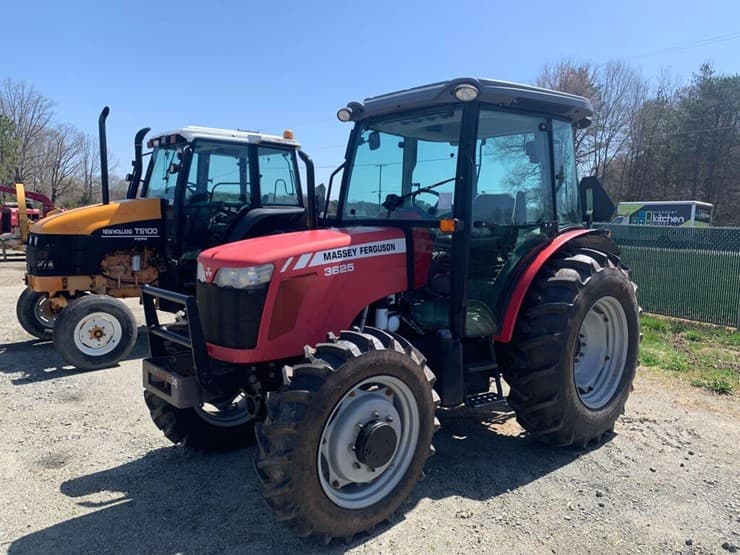

Massey Ferguson 3625F

Last Updated: June 2024

Overview

The Massey Ferguson 3625F is a utility tractor, designed for a variety of tasks around the farm or worksite. It is equipped with a 2WD chassis and a hydrostatic power steering system, which should provide easy maneuverability. The tractor operates with a 12-speed mechanical shuttle transmission, offering the same number of gears for forward and reverse motion, aiding in tasks that require frequent changes in direction. The engine, an AGCO Power 33DTA model, is a 3-cylinder, liquid-cooled, diesel unit with mechanical direct injection. It has a displacement of 201 cubic inches and can deliver a power output of 69 hp at 2200 rated RPM. The tractor's length is 156.9 inches, with a width of 57.1 inches, making it relatively nimble. The height is 90.6 inches when equipped with a cab. Operational weight varies between 6085 pounds with ROPS and 6559 pounds with a cab. It was manufactured from 2011 to 2017 and comes with standard ag tires. The tractor includes a three-point hitch system and is capable of accommodating both cab and ROPS station types, providing options for operator comfort and safety.
Show more...

Key Specifications

Category: Utility

Power Output: 69

Transmission: Mechanical shuttle

Drive Type: 2WD

Operating Weight: 6559 (with cab), 6085 (with ROPS)

Fuel Type: Diesel

Massey Ferguson 3625F vs. Similar Tractors

Power Output
Average
Greater than 63% of similar tractors.
Operating Weight
Average
Greater than 50% of similar tractors.

Technical Specifications

Engine

Manufacturer
AGCO Power
Model
33DTA
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Mechanical direct injection
Cylinders
3
Displacement (ci)
201
Bore (in)
4.252
Stroke (in)
4.724
Rated RPM
2200
Power Output (hp)
69

Transmission

Type
Mechanical shuttle
Forward Gears
12
Reverse Gears
12
Total Gears
-

Dimensions

Length (in)
156.9
Width (in)
57.1
Height (in)
90.6 (with cab)
Operating Weight (lb)
6559 (with cab), 6085 (with ROPS)

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
Hydrostatic power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag
Manufacture - End Year
2017
Hitch Type
Three-Point Hitch
Hitch Category
II/I
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
Cab (optional), ROPS (Roll Over Protection Structure)
Starter Type
Electric
Brake Type
-
Hydraulic System Type
-
