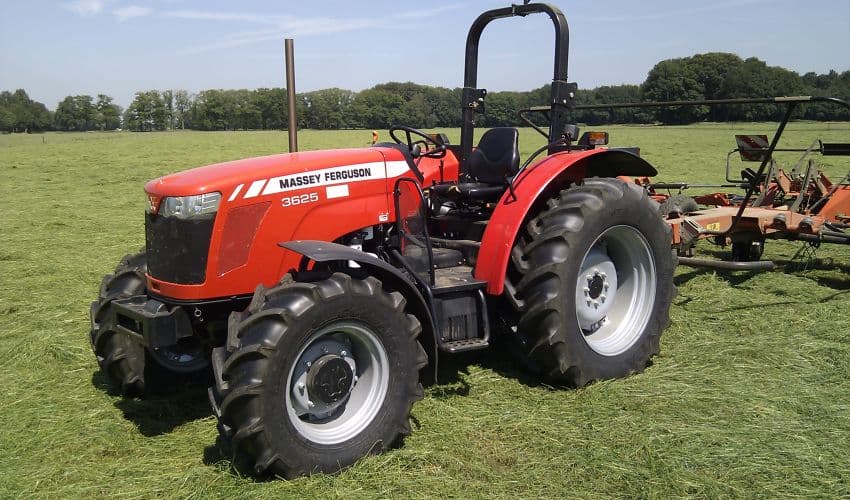

Massey Ferguson 3625

Last Updated: June 2024

Overview

The Massey Ferguson 3625 is a versatile utility tractor designed and manufactured by Agritalia for Massey Ferguson in Rovigo, Italy from 2007 to 2012. Equipped with the robust AGCO SisuDiesel 33 DT engine, this tractor features a lineup of transmission options including SynchroShuttle, PowerShuttle, and SpeedShift variants that provide a range of 8 to 24 forward and reverse gears. This model is offered both in 2WD and 4WD configurations and boasts a lift capacity hitch at the rear. Designed for ease of operation and maintenance, the tractor has a range of advanced features like power steering, hydraulic wet disc brakes, and optional cabin with heating. It is well-suited for various agricultural tasks, thanks to its reliable performance and sturdy build.
Show more...

Key Specifications

Category: Utility

Power Output: 68

Transmission: SynchroShuttle, Synchronized shuttle, Power shuttle, Synchronized shuttle with partial power shift

Operating Weight: 5071 (2WD ROPS), 6174 (2WD Cab), 5512 (4WD ROPS), 7056 (4WD Cab)

Fuel Type: Diesel

Lift Capacity: 5515 lbs

Image Gallery

Massey Ferguson 3625 Tractor Massey Ferguson 3625 Tractor Massey Ferguson 3625 Tractor Massey Ferguson 3625 Tractor Massey Ferguson 3625 Tractor Massey Ferguson 3625 Tractor Massey Ferguson 3625 Tractor Massey Ferguson 3625 Tractor

Massey Ferguson 3625 vs. Similar Tractors

Power Output
Average
Greater than 63% of similar tractors.
Hitch Capacity
Above Average
Greater than 78% of similar tractors.

Technical Specifications

Engine

Manufacturer
AGCO SisuDiesel
Model
33 DT
Cooling Type
Liquid-cooled
Cylinder Orientation
Inline
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged and intercooled
Cylinders
3
Displacement (ci)
201.0 cu·in
Bore (in)
4.25
Stroke (in)
4.72
Rated RPM
2200
Power Output (hp)
68

Transmission

Type
SynchroShuttle, Synchronized shuttle, Power shuttle, Synchronized shuttle with partial power shift
Forward Gears
8, 12, 24
Reverse Gears
8, 12, 24
Total Gears
-

Dimensions

Length (in)
148
Width (in)
76
Height (in)
99 (ROPS), 101.18 (Cab)
Operating Weight (lb)
5071 (2WD ROPS), 6174 (2WD Cab), 5512 (4WD ROPS), 7056 (4WD Cab)

Power Take-Off (PTO)

PTO Type
Independent with electro-hydraulic wet disc clutch
PTO Speed 1 (rpm)
540
PTO Speed 2 (rpm)
540E (optional), 540/1000 (optional)
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD or 4x4 MFWD 4WD
Drive Type
-
Steering Type
Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
16 (for 7.50-16 tires)
Front Tire Width (in)
7.5
Rear Tire Diameter (in)
30 (for 16.9R30 tires)
Rear Tire Width (in)
16.9
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
2012
Hitch Type
Category II/I
Hitch Category
Category 3
Hitch Position
Rear
Hitch Capacity (lb)
5515 lbs
Operator Station Type
Two-post foldable ROPS or Cab with heater (optional)
Starter Type
Electric
Brake Type
Hydraulic wet disc
Hydraulic System Type
Open center
