Massey Ferguson 360

Last Updated: July 2024

Overview

The Massey Ferguson 360 is a utility tractor powered by a 3-cylinder, 153 cubic inch, turbocharged Perkins diesel engine producing 46.1 horsepower at 2,250 RPM. Key specifications have been updated based on the Nebraska Tractor Test Laboratory results, including engine displacement, rated RPM, maximum power output, torque values, torque rise percentage, fuel consumption rates, hydraulic system performance details, operating weight for the 2WD unladen model, and transmission gear speeds. Additional details on drawbar performance, sound levels, weight distribution, tire specifications, fuel efficiency under varying conditions, drawbar height, test location, atmospheric conditions, fuel/oil data, tread widths, wheelbase, and fuel type have been added. The hitch category has been updated to Category I based on the test results.
Show more...

Key Specifications

Category: Utility

Power Output: 46.1 (at 2250 RPM)

Transmission: Gear, Mechanical Shuttle, Synchromesh

Drive Type: 2WD and 4WD available

Operating Weight: 5125 (2WD unladen)

Fuel Type: Diesel

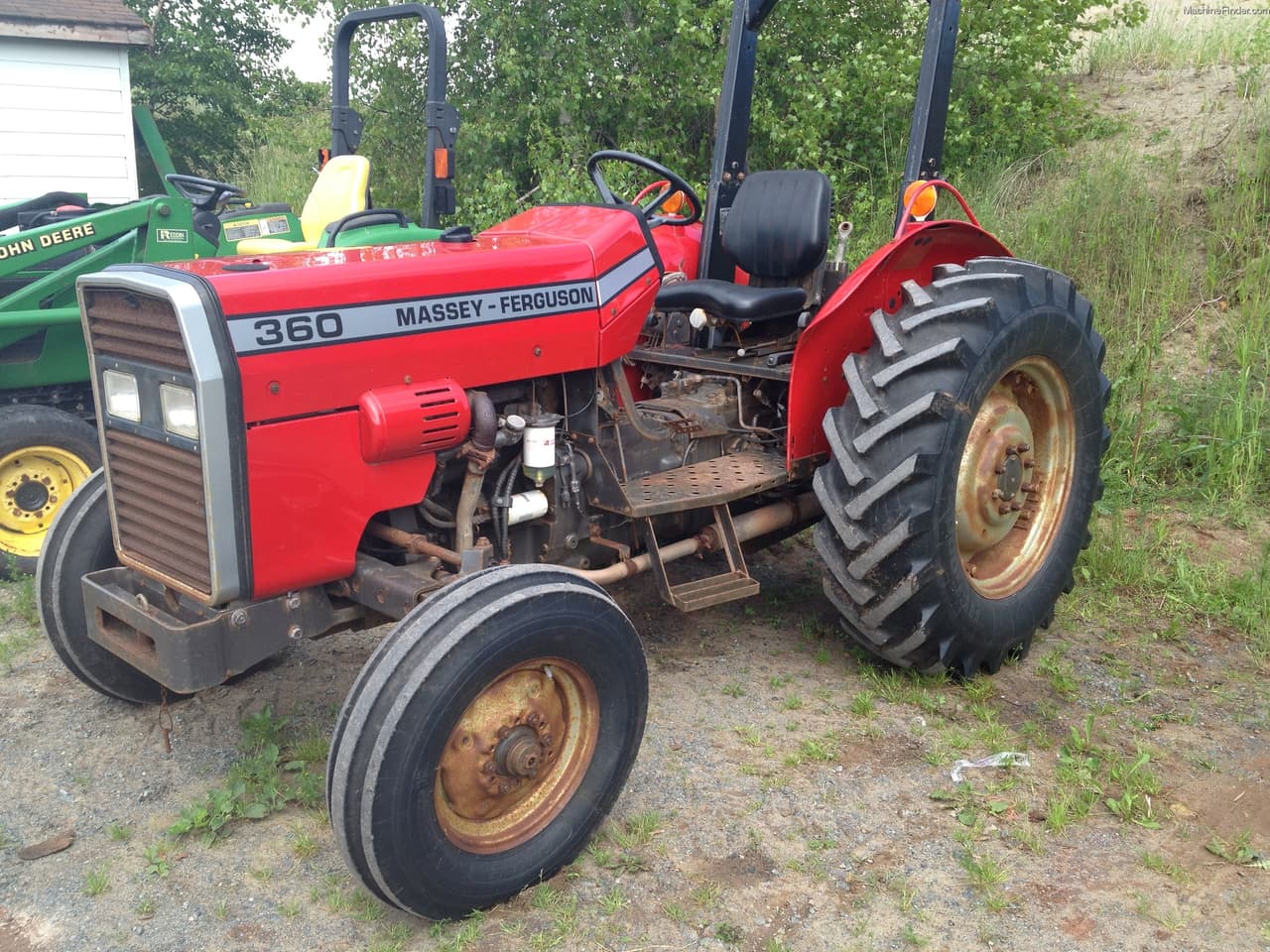

Image Gallery

Massey Ferguson 360 Tractor Massey Ferguson 360 Tractor Massey Ferguson 360 Tractor Massey Ferguson 360 Tractor Massey Ferguson 360 Tractor Massey Ferguson 360 Tractor Massey Ferguson 360 Tractor Massey Ferguson 360 Tractor Massey Ferguson 360 Tractor Massey Ferguson 360 Tractor

Massey Ferguson 360 vs. Similar Tractors

Power Output
Excellent
Greater than 100% of similar tractors.
Hitch Capacity
Average
Greater than 67% of similar tractors.
Operating Weight
Above Average
Greater than 76% of similar tractors.

Technical Specifications

Engine

Manufacturer
Perkins
Model
AT3.152.4
Cooling Type
Liquid-cooled
Cylinder Orientation
Inline
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged
Cylinders
3
Displacement (ci)
153
Bore (in)
3.58
Stroke (in)
5
Rated RPM
2250
Power Output (hp)
46.1 (at 2250 RPM)

Transmission

Type
Gear, Mechanical Shuttle, Synchromesh
Forward Gears
8 (Gear Type), 6 (Mechanical Shuttle), 12 (Synchromesh)
Reverse Gears
2 (Gear Type), 2 (Mechanical Shuttle), 4 (Synchromesh)
Total Gears
-

Dimensions

Length (in)
131.5 (2WD), 140.9 (4WD)
Width (in)
73.6
Height (in)
94.1 (2WD), 93.7 (4WD)
Operating Weight (lb)
5125 (2WD unladen)

Power Take-Off (PTO)

PTO Type
Live (2WD), Independent (optional for 4WD)
PTO Speed 1 (rpm)
540
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
2WD and 4WD available
Steering Type
Hydrostatic power
Coolant Capacity (qts)
10.4
Front Tire Diameter (in)
16 (2WD), 24 (4WD)
Front Tire Width (in)
-
Rear Tire Diameter (in)
28
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag
Manufacture - End Year
1991
Hitch Type
Three-Point Hitch
Hitch Category
I
Hitch Position
Rear
Hitch Capacity (lb)
3910 lbs
Operator Station Type
Two-post ROPS
Starter Type
Electric
Brake Type
Differential wet disc
Hydraulic System Type
Open center

Test Results

Nebraska Tractor Test Laboratory - Test Date: May to June, 1987 - Supplemental tests, October to November, 1988

Maximum Power and Fuel Consumption

  • Maximum Power: 46.1 HP (34.4 kW) at 2250 rpm
  • Fuel Consumption at Maximum Power: 2.95 Gal/hr (11.18 l/h) with a fuel efficiency of 0.446 lb/hp.hr (0.271 kg/kW.h)

Drawbar Performance

  • Power in 5th Gear (Hi): 41.0 HP (30.6 kW) with a drawbar pull of 3890 lbs (17.3 kN) and a speed of 7.37 mph (11.86 km/h)
  • Fuel Consumption in 5th Gear: 0.569 lb/hp.hr (0.346 kg/kW.h) with a fuel efficiency of 12.23 Hp.hr/gal (2.41 kW.h/l)

Torque and Engine Performance

  • Maximum Torque: 137.9 lb.-ft. (187.0 Nm) at 1450 rpm
  • Torque Rise: 28.3%

Hydraulic Performance

  • Maximum Force Exerted: 3910 lbs (17.4 kN) through the three-point hitch
  • Pump Delivery Rate: 5.4 GPM (20.5 l/min) at minimum pressure with a delivery pressure of 3425 psi (236 bar)
  • Hydraulic Power: 9.1 HP (6.8 kW) at maximum hydraulic power

Overall Efficiency

  • Fuel Efficiency at Standard PTO Speed (540 rpm): 17.72 Hp.hr/gal (3.49 kW.h/l)
  • Fuel Consumption at Standard PTO Speed: 2.69 Gal/hr (10.20 l/h) at 1795 rpm


NTTL.(1987). Nebraska Summary: S029 Massey Ferguson 360 Diesel (2WD). Lincoln, NE: Nebraska Tractor Test Laboratory. Retrieved from https://digitalcommons.unl.edu/tractormuseumlit/2659
