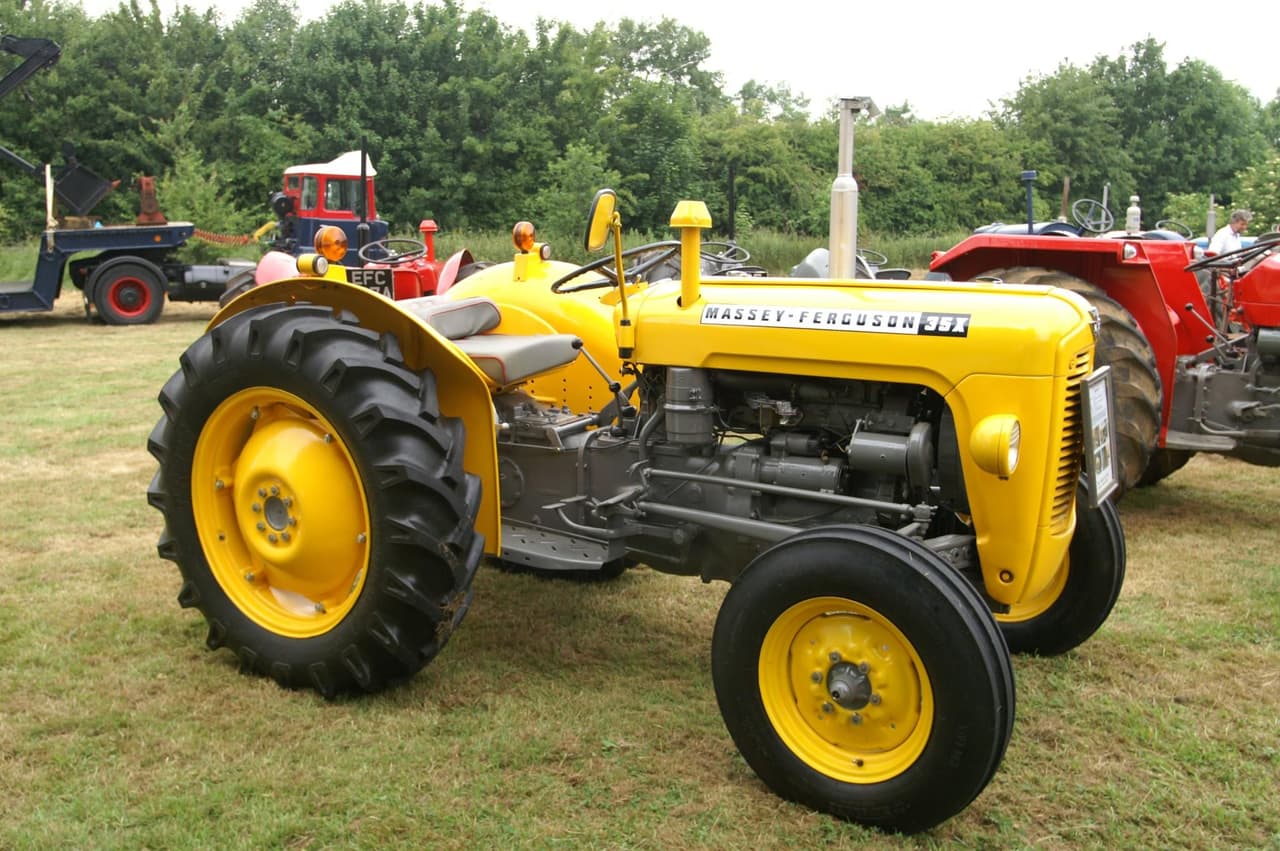

Massey Ferguson 35X

Last Updated: June 2024

Overview

The Massey Ferguson 35X is a utility tractor, featuring a robust Perkins A3.152 diesel engine with a displacement of 152.7 cubic inches and a power output of 44.5 horsepower. With a liquid-cooled design, it operates at a rated RPM of 2250. The tractor is equipped with two types of transmission: a gear transmission with 6 forward and 2 reverse gears, and a Multi-Power partial power shift transmission with 12 forward and 4 reverse gears. The Multi-Power system, one of the unique features of the 35X, allows the operator to shift on the move under load between high and low ratios in each gear. With a weight of 3265 lbs and dimensions of 115 inches in length and 64 inches in width, the Massey Ferguson 35X presents a sturdy and reliable solution for various agricultural applications. Its open operator station and the standard Category I hitch, combined with a hydraulic system type of open center, further complement the machine's utility and functionality on the field.
Show more...

Key Specifications

Category: Utility

Power Output: 44.5

Transmission: Gear / Partial Power Shift

Operating Weight: 3265

Fuel Type: Diesel

Massey Ferguson 35X vs. Similar Tractors

Power Output
Average
Greater than 41% of similar tractors.
Operating Weight
Below Average
Greater than 28% of similar tractors.

Technical Specifications

Engine

Manufacturer
Perkins
Model
A3.152
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Naturally Aspirated
Cylinders
3
Displacement (ci)
152.7
Bore (in)
3.6
Stroke (in)
5
Rated RPM
2250
Power Output (hp)
44.5

Transmission

Type
Gear / Partial Power Shift
Forward Gears
12
Reverse Gears
4
Total Gears
-

Dimensions

Length (in)
115
Width (in)
64
Height (in)
-
Operating Weight (lb)
3265

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
-
Drive Type
-
Steering Type
-
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Agricultural
Manufacture - End Year
-
Hitch Type
Category I
Hitch Category
Category 3
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
Open
Starter Type
Electric
Brake Type
-
Hydraulic System Type
Open Center
