Massey Ferguson 3545

Last Updated: June 2024

Overview

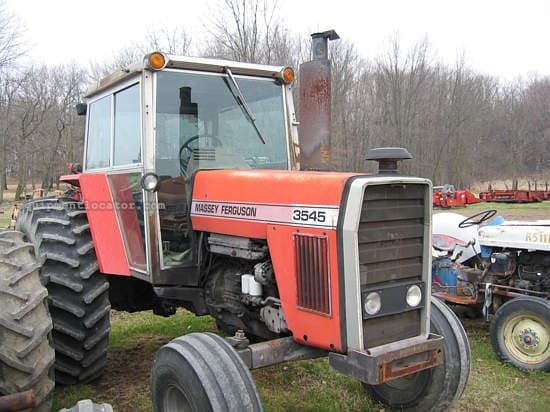

The Massey Ferguson 3545, manufactured from 1983 to 1987, is powered by a turbocharged intercooled Perkins diesel engine that delivers a power output of 147 horsepower with a displacement of 354 cubic inches. It features a liquid cooling system, dual paper element air cleaner, and has a compression ratio of 15.5:1. This tractor is equipped with a partial power shift transmission, providing 16 forward and 12 reverse gears. With a hydrostatic power steering, the operation is made more accessible and comfortable. The machine offers an operating weight of 13,300 pounds and a wheelbase measuring 107 inches, ensuring stability during heavy duty tasks. The distinct tire measurements for agricultural use are 11.00-16 in the front and 18.4-38 at the rear. It is assumed to have a three-point hitch based on the "Rear Type: II," but further specifics on the hitch's lift capacity or PTO speeds are not provided. The lengthy build and considerable operating weight indicate that this tractor was designed to handle extensive agricultural demands while providing the comfort of power steering and efficiency of a significant power shift transmission.
Show more...

Key Specifications

Power Output: 147

Transmission: Partial power shift

Operating Weight: 13,300

Fuel Type: Diesel

Technical Specifications

Engine

Manufacturer
Perkins
Model
-
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged intercooled
Cylinders
6
Displacement (ci)
354
Bore (in)
3.875
Stroke (in)
5
Rated RPM
2400
Power Output (hp)
147

Transmission

Type
Partial power shift
Forward Gears
16
Reverse Gears
12
Total Gears
-

Dimensions

Length (in)
185
Width (in)
94
Height (in)
-
Operating Weight (lb)
13,300

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
-
Drive Type
-
Steering Type
Hydrostatic power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag front: 11.00-16, Ag rear: 18.4-38
Manufacture - End Year
1987
Hitch Type
Three-point hitch (Assumed based on "Rear Type: II")
Hitch Category
II
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
12 volts
Brake Type
-
Hydraulic System Type
Open center
