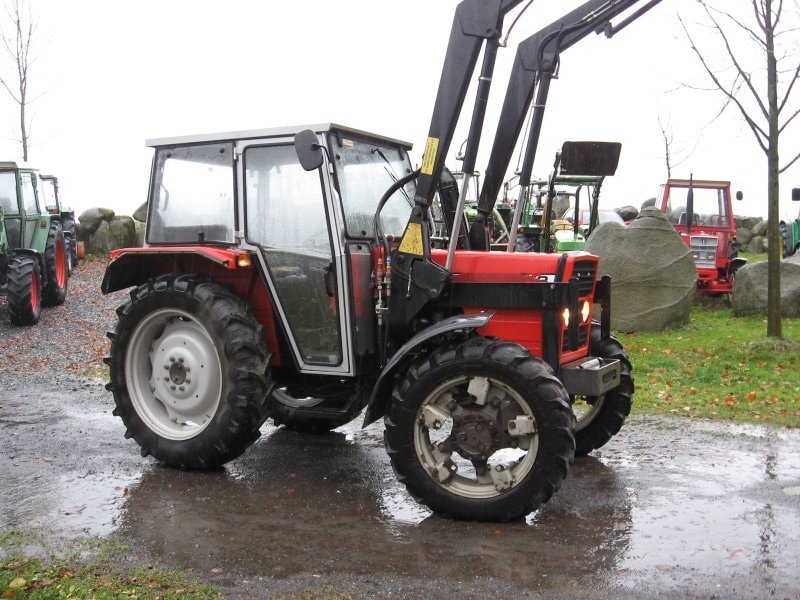

Massey Ferguson 353

Last Updated: June 2024

Overview

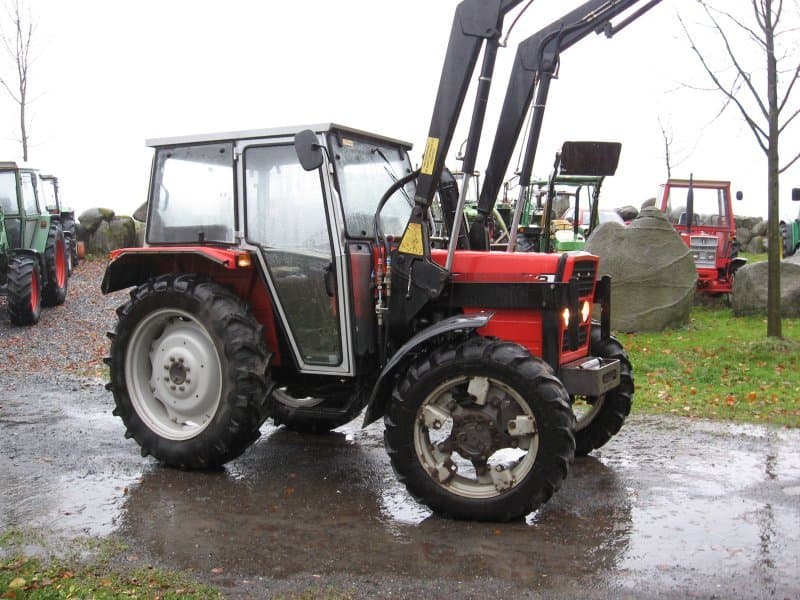

The Massey Ferguson 353 utility tractor is equipped with a robust 47 horsepower Perkins AD3.152 S three-cylinder diesel engine, ideally suited for a variety of farm tasks. The tractor operates with a 4x2 2WD chassis and utilizes a manual transmission with 12 forward and 4 reverse gears, providing flexibility and power for numerous agricultural applications. With hydrostatic power steering, the maneuverability of the 353 is smooth, allowing easier turns and improved handling. Its notable engine displacement of 152.7 cubic inches, paired with a rated RPM of 2250, ensures consistent and reliable operation. The physical dimensions of the tractor, including a length of 140.6 inches and a height of 87.4 inches, combined with its operating weight starting at 5568 pounds, define a mid-size machine that handles tasks efficiently without compromising on power. It sports front tires of size 7.50-16 and rear tires of size 14.9-28, indicative of its utility focus. The Massey Ferguson 353 was produced from 1987 to 1994 and remains a solid workhorse in the second-hand tractor market.
Show more...

Key Specifications

Category: Utility

Power Output: 47

Transmission: Manual

Drive Type: 2WD

Operating Weight: 5568

Fuel Type: Diesel

Massey Ferguson 353 vs. Similar Tractors

Power Output
Average
Greater than 45% of similar tractors.
Operating Weight
Average
Greater than 46% of similar tractors.

Technical Specifications

Engine

Manufacturer
Perkins
Model
AD3.152 S
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Naturally Aspirated
Cylinders
3
Displacement (ci)
152.7
Bore (in)
3.6
Stroke (in)
5
Rated RPM
2250
Power Output (hp)
47

Transmission

Type
Manual
Forward Gears
12
Reverse Gears
4
Total Gears
-

Dimensions

Length (in)
140.6
Width (in)
-
Height (in)
87.4
Operating Weight (lb)
5568

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
Hydrostatic power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
16
Front Tire Width (in)
7.5
Rear Tire Diameter (in)
28
Rear Tire Width (in)
14.9
Front/Rear Rim Diameter (in)
-
Tire Type
Ag
Manufacture - End Year
1994
Hitch Type
-
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
-
Brake Type
-
Hydraulic System Type
-
