Massey Ferguson 35

Last Updated: June 2024

Overview

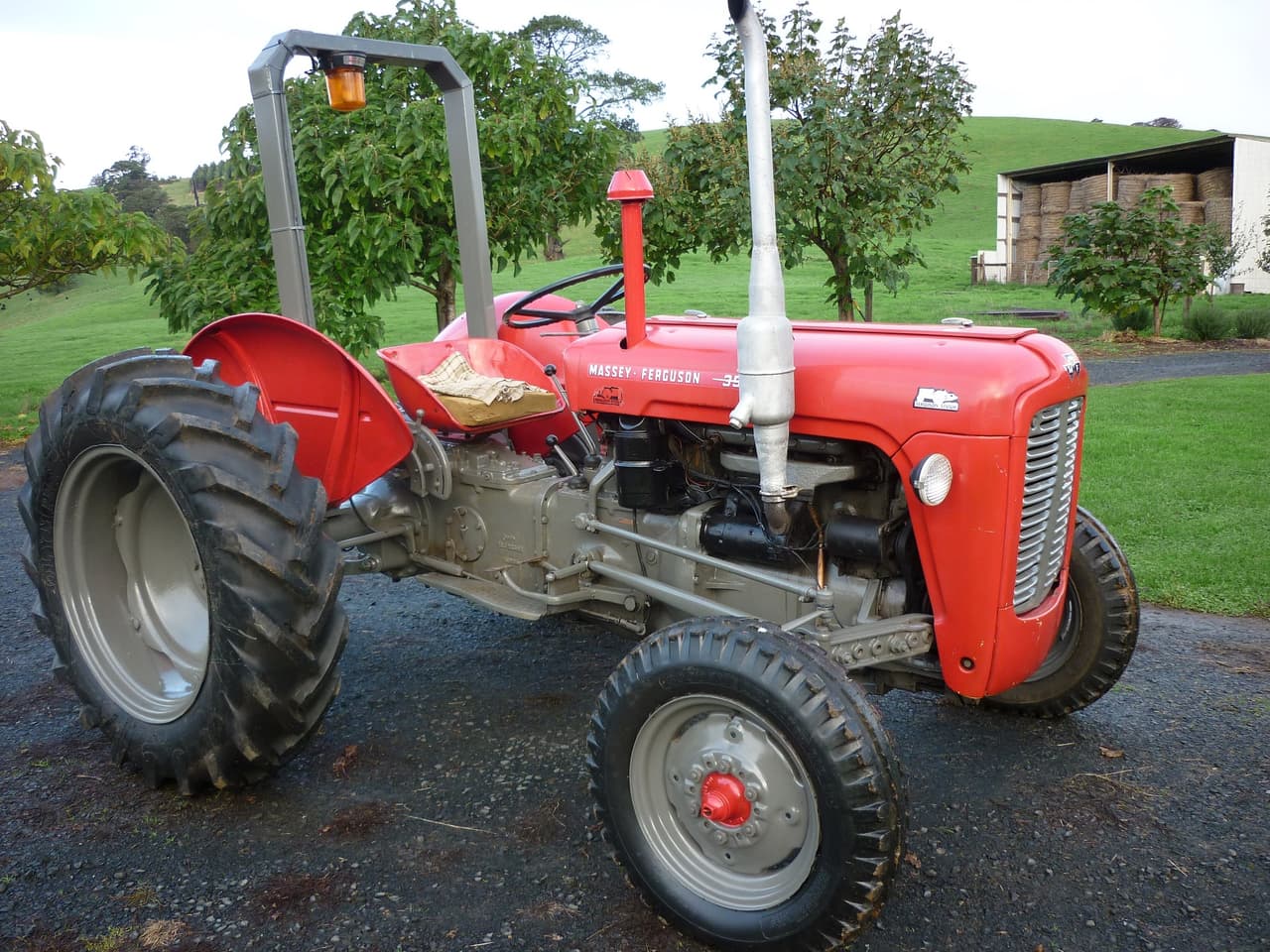

The Massey Ferguson 35 is a two-wheel drive utility tractor that was manufactured between 1960 and 1965. This model is known for its dependability and was commonly used in small farming operations. The tractor came equipped with either a three-cylinder Perkins diesel engine with a displacement of 2.5 liters or a four-cylinder Continental gasoline engine with a displacement of 2.2 liters, both known for their robust performance. The tractor had a manual steering system and a gear-type transmission with six forward and two reverse gears. Users could also opt for a partial power shift Multi-Power transmission offering more gear selection. It features an open operator station for accessibility and comfort. It rides on ag tires, and its drum brakes provide required stopping power for field operations. Standard equipment included a rear category I hitch with optional rear differential lock, enhancing its utility in various terrains.
Show more...

Key Specifications

Category: Utility

Power Output: 37 and 36.5

Transmission: Gear

Drive Type: 2WD

Operating Weight: 3093

Fuel Type: Diesel and Gasoline

Massey Ferguson 35 vs. Similar Tractors

Power Output
Excellent
Greater than 98% of similar tractors.
Operating Weight
Below Average
Greater than 26% of similar tractors.

Technical Specifications

Engine

Manufacturer
Perkins and Continental
Model
Perkins 3.152, Continental Unknown
Cooling Type
Liquid-cooled
Cylinder Orientation
Inline
Valve Configuration
-
Fuel Type
Diesel and Gasoline
Induction Type
Naturally aspirated
Cylinders
3 and 4
Displacement (ci)
152.7 and 134
Bore (in)
3.6 and 3.3125
Stroke (in)
5 and 3.875
Rated RPM
2000 and 2200
Power Output (hp)
37 and 36.5

Transmission

Type
Gear
Forward Gears
6
Reverse Gears
2
Total Gears
-

Dimensions

Length (in)
117
Width (in)
63.5
Height (in)
54
Operating Weight (lb)
3093

Power Take-Off (PTO)

PTO Type
Transmission
PTO Speed 1 (rpm)
540
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
Manual
Coolant Capacity (qts)
10
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag
Manufacture - End Year
1965
Hitch Type
-
Hitch Category
I
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
Open operator station
Starter Type
Electric
Brake Type
Independent manual shoe / drum
Hydraulic System Type
-
