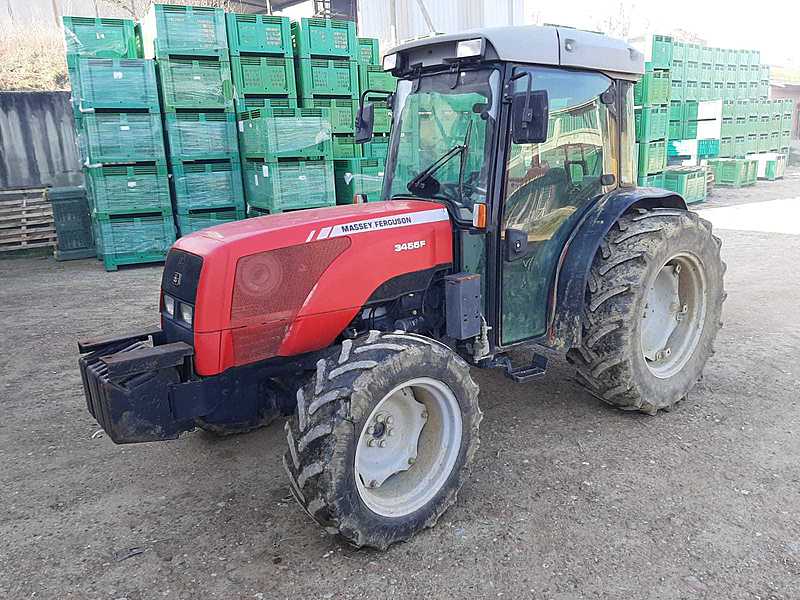

Massey Ferguson 3455

Last Updated: June 2024

Overview

The Massey Ferguson 3455 is an orchard/vineyard tractor that was manufactured between 2005 and 2010. It features a four-wheel drive (4WD) chassis with Massey Ferguson's MFWD system for enhanced traction and maneuverability in various agricultural scenarios typical in orchard and vineyard work. The tractor is powered by a 98 horsepower Perkins 1104C-44T turbocharged diesel engine and offers a liquid-cooling system to maintain engine temperature. The transmission includes a 20-speed synchronized shuttle with a creeper option, resulting in 30 forward and 15 reverse gears for a wide range of speed selection. Hydrostatic power steering facilitates improved handling and control. This model combines productivity with the compactness required for narrow-space work environments found in specialized farming. While exact dimensions for tires, height, and operating weight are not specified, a general understanding of the tractor's size can be gathered from its 147.64-inch length and 50.2-inch width.
Show more...

Key Specifications

Category: Agricultural, Orchard/Vineyard

Power Output: 98

Transmission: Synchronized shuttle, Synchro shuttle with creeper

Drive Type: 4WD

Fuel Type: Diesel

Massey Ferguson 3455 vs. Similar Tractors

Power Output
Above Average
Greater than 75% of similar tractors.

Technical Specifications

Engine

Manufacturer
Perkins
Model
1104C-44T
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged
Cylinders
4
Displacement (ci)
268.5
Bore (in)
-
Stroke (in)
-
Rated RPM
2200
Power Output (hp)
98

Transmission

Type
Synchronized shuttle, Synchro shuttle with creeper
Forward Gears
30 (due to creeper option)
Reverse Gears
15 (due to creeper option)
Total Gears
-

Dimensions

Length (in)
147.64
Width (in)
50.2
Height (in)
-
Operating Weight (lb)
-

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Hydrostatic power steering
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
2010
Hitch Type
-
Hitch Category
3
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric
Brake Type
-
Hydraulic System Type
-
