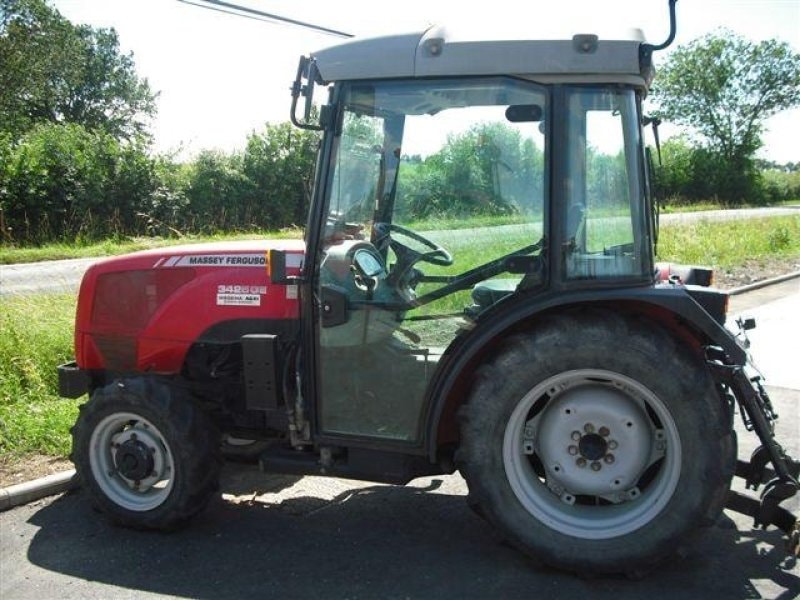

Massey Ferguson 3425

Last Updated: June 2024

Overview

The Massey Ferguson 3425 is an orchard/vineyard tractor produced from 2005 to 2010. It features a 4x4 MFWD 4WD chassis, powered by a 64 hp Perkins 1103C-33T turbocharged diesel engine with a displacement of 201.4 cubic inches, operating at a rated RPM of 2200. The 3425 is equipped with hydrostatic power steering and its transmission allows for 20 to 30 forward gears and 10 to 15 reverse gears, featuring both a synchronized shuttle and sync shuttle with creeper options. With a wheelbase of 78.74 inches and a width of 43.4 inches, the tractor's size is well-suited for maneuvering within the close confines of orchard rows or vineyards. Tire specifications indicate an agricultural type, with sizes of 6.50-16 for the front and 11.2R28 for the rear. The detailed specifications of the 3425 model make it a capable machine for a variety of tasks required in specialized agricultural settings.
Show more...

Key Specifications

Category: Agricultural, Orchard/Vineyard

Power Output: 64

Transmission: Syncronozed shuttle, Synch shuttle with creeper

Drive Type: 4WD

Fuel Type: Diesel

Massey Ferguson 3425 vs. Similar Tractors

Power Output
Average
Greater than 36% of similar tractors.

Technical Specifications

Engine

Manufacturer
Perkins
Model
1103C-33T
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged
Cylinders
3
Displacement (ci)
201.4
Bore (in)
-
Stroke (in)
-
Rated RPM
2200
Power Output (hp)
64

Transmission

Type
Syncronozed shuttle, Synch shuttle with creeper
Forward Gears
30
Reverse Gears
15
Total Gears
-

Dimensions

Length (in)
145.64
Width (in)
43.4
Height (in)
-
Operating Weight (lb)
-

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Hydrostatic power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag (V)
Manufacture - End Year
2010
Hitch Type
-
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric
Brake Type
-
Hydraulic System Type
-
