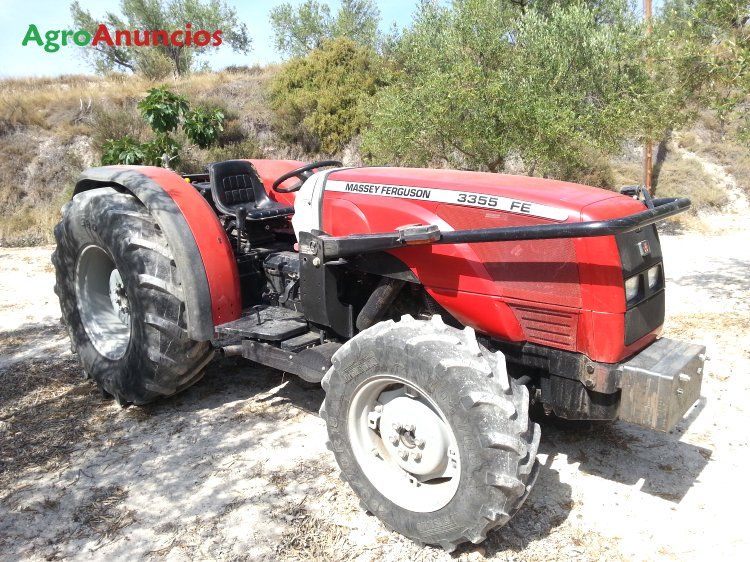

Massey Ferguson 3355

Last Updated: June 2024

Overview

The Massey Ferguson 3355 tractor serves the specialized needs of orchards and vineyards, with variants such as the 3355S, 3355F, 3355FE, and 3355GE, which accommodate different working environments. The tractor is equipped with a versatile set of transmission options including a sync shuttle, tripleshift, and even a power shift, topped with up to 36 forward speeds. It operates a turbocharged Perkins diesel engine, the 1004.40T, which provides 93.7 horsepower and substantial torque at 274.4 lb-ft, suitable for various tasks. The open-center hydraulic system and the three-point hitch categorized II/I add to its functionality. It's available in both 2WD and 4WD configurations, affecting its operating weight and wheelbase, and offers a height ranging from the steering wheel at 51.6 inches to a cab height of 87.8 inches. Options for open station with ROPS or a more enclosed cab cater to different operator preferences, highlighting its versatility in recreational farming contexts while promising a powerhouse performance for commercial activities.
Show more...

Key Specifications

Category: Agricultural, Orchard/Vineyard

Power Output: 93.7 hp

Transmission: Sync shuttle / Tripleshift / Power shift

Drive Type: 2WD

Operating Weight: Range: 4740 lbs - 5512 lbs depending on configuration (2WD/4WD and ROPS/Cab)

Fuel Type: Diesel

Massey Ferguson 3355 vs. Similar Tractors

Power Output
Average
Greater than 70% of similar tractors.
Operating Weight
Excellent
Greater than 96% of similar tractors.

Technical Specifications

Engine

Manufacturer
Perkins
Model
1004.40T
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged
Cylinders
4
Displacement (ci)
243.5 ci
Bore (in)
3.937 in
Stroke (in)
5.00 in
Rated RPM
2200
Power Output (hp)
93.7 hp

Transmission

Type
Sync shuttle / Tripleshift / Power shift
Forward Gears
36
Reverse Gears
-
Total Gears
-

Dimensions

Length (in)
151.6 in
Width (in)
Range: 47.2 in - 59.1 in depending on the sub-model (3355S/3355F/3355FE/3355GE)
Height (in)
Range: 51.6 in - 89 in, depending on presence of ROPS or Cab
Operating Weight (lb)
Range: 4740 lbs - 5512 lbs depending on configuration (2WD/4WD and ROPS/Cab)

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
Power steering
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Standard tires (ag)
Manufacture - End Year
-
Hitch Type
Three-Point Hitch (Categories II/I)
Hitch Category
Category 3
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
Cab or ROPS
Starter Type
Electric
Brake Type
-
Hydraulic System Type
Open center
