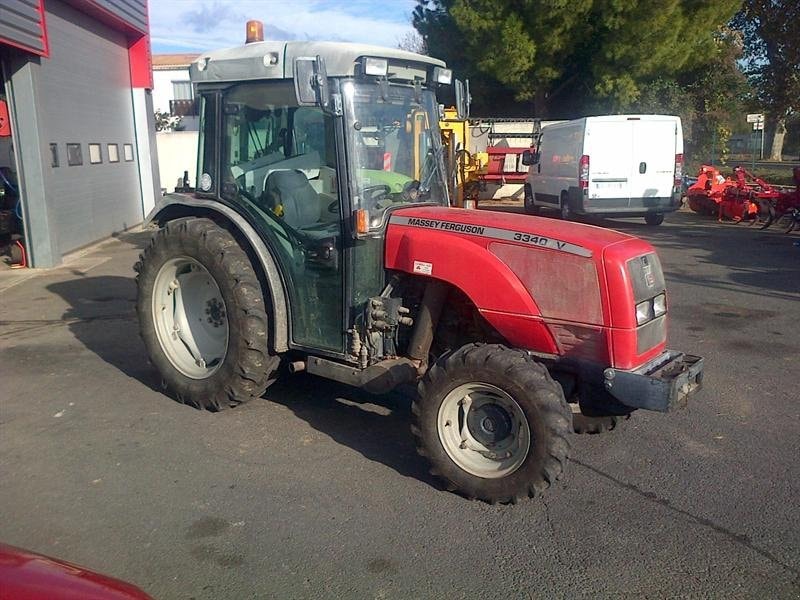

Massey Ferguson 3340

Last Updated: June 2024

Overview

The Massey Ferguson 3340 tractor is designed primarily for orchard and vineyard applications, indicating its suitability for tasks within tighter spaces and under low-hanging branches. With a power output of 79.1 horsepower and a four-cylinder, liquid-cooled Perkins 1004.42 diesel engine, it demonstrates sufficient power for various agricultural tasks. The engine is rated for 2200 RPM and delivers up to 208 lb-ft of torque at 1400 RPM, suggesting strong pulling capabilities. It comes with multiple transmission configurations, with up to 36 forward and reverse gears. This range confirms an ability to handle distinct speed requirements for a variety of uses. The open center hydraulic system complements the tractor's functionality by providing reliable hydraulic power for attachments and implements.
Show more...

Key Specifications

Category: Agricultural, Orchard/Vineyard

Power Output: 79.1

Transmission: Sync Shuttle / Tripleshift / Power Shift (assuming these listed are all part of the possible configurations)

Drive Type: 2WD assuming the 4x2 2WD listed indicate two-wheel drive

Operating Weight: 4740 to 5512

Fuel Type: Diesel

Image Gallery

Massey Ferguson 3340 Tractor Massey Ferguson 3340 Tractor Massey Ferguson 3340 Tractor Massey Ferguson 3340 Tractor Massey Ferguson 3340 Tractor Massey Ferguson 3340 Tractor Massey Ferguson 3340 Tractor Massey Ferguson 3340 Tractor Massey Ferguson 3340 Tractor Massey Ferguson 3340 Tractor Massey Ferguson 3340 Tractor Massey Ferguson 3340 Tractor

Massey Ferguson 3340 vs. Similar Tractors

Power Output
Average
Greater than 54% of similar tractors.
Operating Weight
Above Average
Greater than 78% of similar tractors.

Technical Specifications

Engine

Manufacturer
Perkins
Model
1004.42
Cooling Type
Liquid-cooled
Cylinder Orientation
Vertical (Common for the majority of tractor engines)
Valve Configuration
OHV (Overhead Valve) (common valve configuration given the engine information)
Fuel Type
Diesel
Induction Type
Naturally Aspirated (assuming since not specified as turbocharged or supercharged)
Cylinders
4
Displacement (ci)
258
Bore (in)
4.05
Stroke (in)
5
Rated RPM
2200
Power Output (hp)
79.1

Transmission

Type
Sync Shuttle / Tripleshift / Power Shift (assuming these listed are all part of the possible configurations)
Forward Gears
36 (assuming the highest number of gears as the correct specification)
Reverse Gears
36 (assuming an equal number of reverse gears as forward for the Power Shift transmission)
Total Gears
-

Dimensions

Length (in)
151.6
Width (in)
Unknown (specifications vary based on tractor version)
Height (in)
Unknown (only provided for steering wheel and ROPS/Cab)
Operating Weight (lb)
4740 to 5512

Power Take-Off (PTO)

PTO Type
Unknown (not specified in the data)
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
-
Drive Type
2WD assuming the 4x2 2WD listed indicate two-wheel drive
Steering Type
Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
Unknown (specifications vary based on tractor version)
Front Tire Width (in)
Unknown (specifications vary based on tractor version)
Rear Tire Diameter (in)
Unknown (specifications vary based on tractor version)
Rear Tire Width (in)
Unknown (specifications vary based on tractor version)
Front/Rear Rim Diameter (in)
-
Tire Type
Ag (assuming agricultural type given the context)
Manufacture - End Year
-
Hitch Type
II/I (assuming this refers to a three-point hitch with two categories based on description)
Hitch Category
3
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
Cab / ROPS (Both types mentioned)
Starter Type
Electric
Brake Type
-
Hydraulic System Type
Open Center
