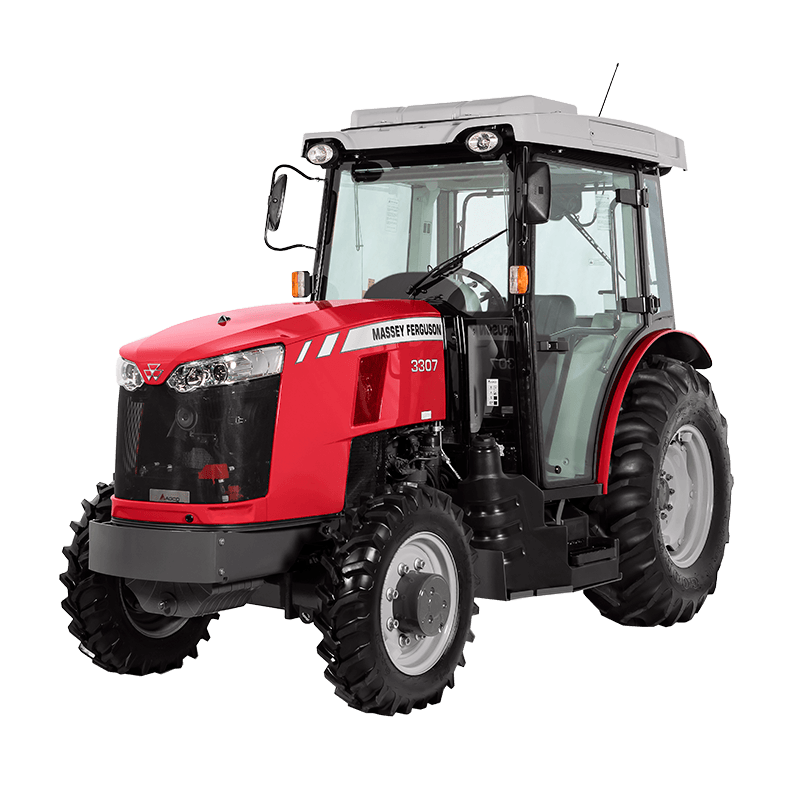

Massey Ferguson 3307

Last Updated: June 2024

Overview

The Massey Ferguson 3307 is an orchard/vineyard tractor that sports a turbocharged 3-cylinder AGCO Power 33 CWIC3 diesel engine with a displacement of 201 cubic inches, capable of delivering 75 horsepower. It operates at a rated RPM of 2200 and offers a 12-speed transmission with the option for an 18-speed creeper transmission, tailored for optimal performance in specialty farming tasks. The tractor's 4x2 2WD chassis and power steering provide maneuverability in tight vineyard rows and orchard spaces. With a wheelbase of 90.6 inches and a height with the cab reaching 92.8 inches, the tractor balances stability and visibility. Key physical dimensions include a length of 148.2 inches. Owners of the 4WD cab version should be aware the tractor weighs in at 6715 pounds. The standard tire fitment includes a 7.50-16 size for the front and 14.9x24 for the rear, which is common in agricultural settings for maintaining traction while minimizing soil compaction.
Show more...

Key Specifications

Category: Agricultural, Orchard/Vineyard

Power Output: 75

Transmission: Creeper

Drive Type: 2WD

Operating Weight: 6715 (With cab)

Fuel Type: Diesel

Massey Ferguson 3307 vs. Similar Tractors

Power Output
Average
Greater than 52% of similar tractors.
Operating Weight
Average
Greater than 40% of similar tractors.

Technical Specifications

Engine

Manufacturer
AGCO Power
Model
33 CWIC3
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged
Cylinders
3
Displacement (ci)
201
Bore (in)
4.252
Stroke (in)
4.724
Rated RPM
2200
Power Output (hp)
75

Transmission

Type
Creeper
Forward Gears
18
Reverse Gears
4
Total Gears
-

Dimensions

Length (in)
148.2
Width (in)
-
Height (in)
92.8 (With cab)
Operating Weight (lb)
6715 (With cab)

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Standard (ag)
Manufacture - End Year
-
Hitch Type
-
Hitch Category
Category 3
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric
Brake Type
-
Hydraulic System Type
-
