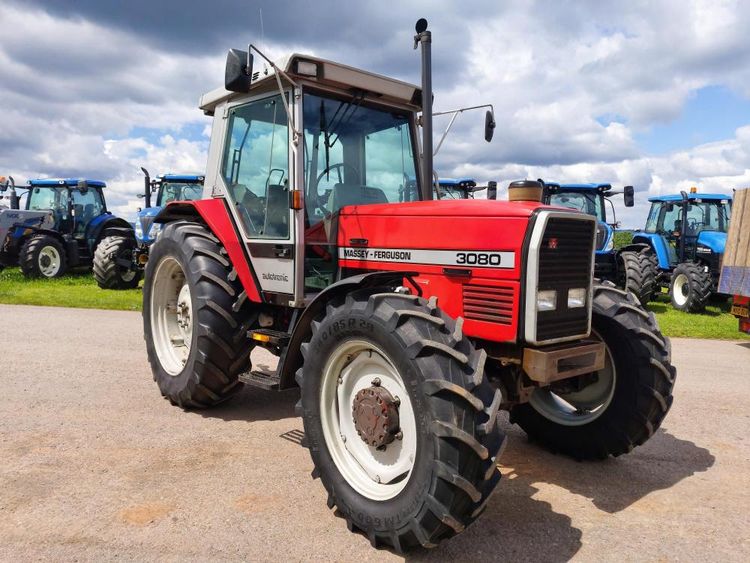

Massey Ferguson 3080

Last Updated: June 2024

Overview

The Massey Ferguson 3080 tractor is a versatile row-crop tractor that was produced by Massey Ferguson from 1986 to 1988. This model can come in either a two-wheel drive (2WD) or a four-wheel drive (4WD) configuration, featuring standard power steering and wet disc brakes. The tractor is powered by a 5.8-liter Perkins A6.354 six-cylinder liquid-cooled diesel engine that delivers 95.7 horsepower at 2200 RPM. The utility of the MF 3080 is enhanced by a transmission that boasts an impressive 32 forward and 32 reverse gears, accommodating a variety of agricultural tasks. The power take-off system supports speeds of 540 and 1000 rpm, catering to different implement’s needs. It is designed with operators in mind, offering a standard cab for improved comfort during long working hours. The MF 3080 also has a substantial fuel capacity of 50 US gallons, allowing for extended operation times between refills.
Show more...

Key Specifications

Category: Row Crop

Power Output: 95.7

Operating Weight: 9200 (2WD) / 9700 (4WD)

Fuel Type: Diesel

Massey Ferguson 3080 vs. Similar Tractors

Power Output
Below Average
Greater than 18% of similar tractors.
Operating Weight
Excellent
Greater than 98% of similar tractors.

Technical Specifications

Engine

Manufacturer
Perkins
Model
A6.354
Cooling Type
Liquid-cooled
Cylinder Orientation
Inline
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Natural Aspiration
Cylinders
6
Displacement (ci)
353.8
Bore (in)
3.86
Stroke (in)
5
Rated RPM
2200
Power Output (hp)
95.7

Transmission

Type
-
Forward Gears
32
Reverse Gears
32
Total Gears
-

Dimensions

Length (in)
176
Width (in)
-
Height (in)
109.1
Operating Weight (lb)
9200 (2WD) / 9700 (4WD)

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
540
PTO Speed 2 (rpm)
1000
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD/4x4 MFWD 4WD
Drive Type
-
Steering Type
Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag
Manufacture - End Year
1988
Hitch Type
-
Hitch Category
Category 3
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
Cab (standard)
Starter Type
Electric
Brake Type
Wet disc
Hydraulic System Type
-
