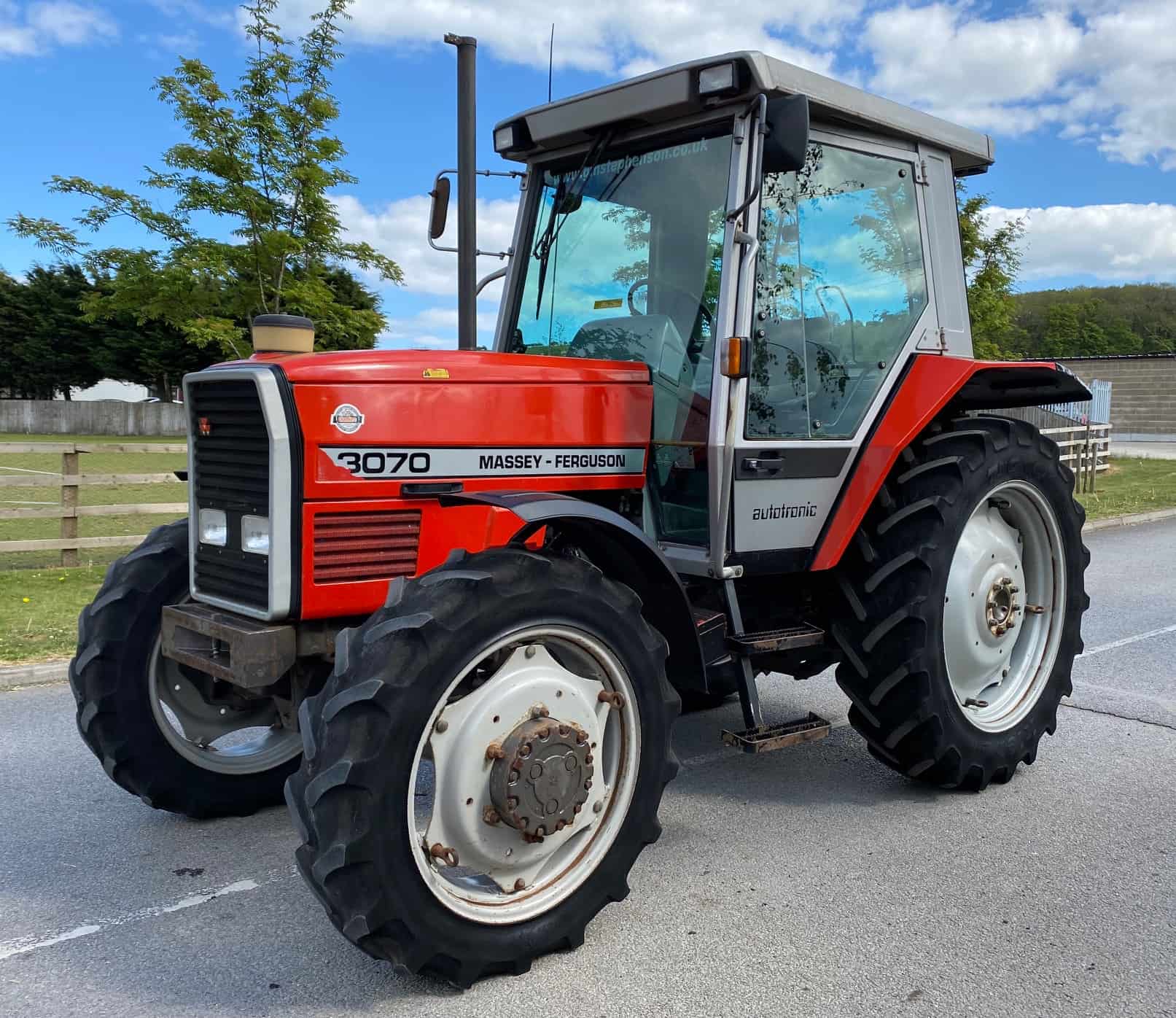

Massey Ferguson 3070

Last Updated: July 2024

Overview

The Massey Ferguson 3070 is a row-crop tractor powered by a turbocharged 4-cylinder Perkins AT4.236 diesel engine with a displacement of 236 cubic inches. The engine is liquid-cooled and features an oil cooler heat exchanger for crankcase oil cooling. It produces a rated power of 82.2 HP at 2200 RPM and a maximum torque of 241 lb-ft at 1318 RPM with a 22.8% torque rise. The tractor is equipped with a fully synchronized transmission with 32 forward and 8 reverse gears, totaling 40 gears. It has a 2WD chassis with power steering. Independent test results show strong drawbar performance, with a maximum drawbar pull of 7,060 lbs at rated speed. The hydraulic system is an open-center type, capable of exerting up to 6,790 lbs of force with a pump delivery rate of 13.5 GPM. Fuel consumption figures and sound levels under various operating conditions are also provided. The tractor's dimensions, including height, length, and width, are specified, along with unladen operating weights for 2WD and 4WD configurations.
Show more...

Key Specifications

Category: Row Crop

Transmission: Fully synchronized

Drive Type: 2WD

Operating Weight: 8985 (2WD unladen) / 9500 (4WD unladen)

Fuel Type: Diesel

Image Gallery

Massey Ferguson 3070 Tractor Massey Ferguson 3070 Tractor Massey Ferguson 3070 Tractor Massey Ferguson 3070 Tractor Massey Ferguson 3070 Tractor Massey Ferguson 3070 Tractor Massey Ferguson 3070 Tractor Massey Ferguson 3070 Tractor

Massey Ferguson 3070 vs. Similar Tractors

Operating Weight
Excellent
Greater than 99% of similar tractors.

Technical Specifications

Engine

Manufacturer
Perkins
Model
AT4.236
Cooling Type
Liquid-cooled with oil cooler engine coolant heat exchanger for crankcase oil
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged
Cylinders
4
Displacement (ci)
236
Bore (in)
-
Stroke (in)
-
Rated RPM
2200
Power Output (hp)
-

Transmission

Type
Fully synchronized
Forward Gears
32
Reverse Gears
-
Total Gears
40

Dimensions

Length (in)
160.8 (2WD) / 164.6 (4WD)
Width (in)
78.2
Height (in)
108.5 (Cab) / 106.6 (Exhaust)
Operating Weight (lb)
8985 (2WD unladen) / 9500 (4WD unladen)

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag
Manufacture - End Year
-
Hitch Type
Category II
Hitch Category
-
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
Cab
Starter Type
12V
Brake Type
-
Hydraulic System Type
Open center

Test Results

Nebraska Tractor Test Laboratory - Test Date: April, 1987

Maximum Power and Fuel Consumption

  • Maximum Power: 82.2 HP (61.3 kW) at 2200 rpm
  • Fuel Consumption at Maximum Power: 5.02 Gal/hr (18.99 l/h) with a fuel efficiency of 0.427 lb/hp.hr (0.260 kg/kW.h)
  • Fuel Weight: 7.03 lbs/gal (0.842 kg/l)

Drawbar Performance

  • Power at Rated Engine Speed (22nd Gear): 67.9 HP (50.6 kW) with a drawbar pull of 7,060 lbs (31.4 kN) and a speed of 5.70 mph (9.17 km/h)
  • Fuel Consumption at Rated Speed: 0.618 lb/hp.hr (0.376 kg/kW.h) with a fuel efficiency of 11.37 Hp.hr/gal (2.24 kW.h/l)
  • Maximum Torque: 241.0 lb.-ft. (326.7 Nm) at 1318 rpm

Hydraulic Performance

  • Maximum Force Exerted: 6790 lbs (30.2 kN)
  • Pump Delivery Rate: 13.5 GPM (51.1 l/min) at minimum pressure
  • Hydraulic Power: 16.8 HP (12.5 kW) at delivery pressure of 2540 psi (175 bar)

Overall Efficiency

  • Maximum Power at PTO Speed (1000 rpm): 82.2 HP (61.3 kW) at 2200 engine rpm
  • Fuel Efficiency at Standard PTO Speed (540 rpm): 17.21 Hp.hr/gal (3.39 kW.h/l)

Tractor Sound Level (with cab)

  • Maximum Sound Level in Gear: 78.0 dB(A) in 25th gear
  • Bystander Sound Level: 82.0 dB(A) in 32nd gear



Nebraska Tractor Test Lab.(1987).Nebraska Summary: S011-S012 Massey Ferguson 3070. Lincoln, NE: University of Nebraska-Lincoln. Retrieved from https://digitalcommons.unl.edu/tractormuseumlit/2668
