Massey Ferguson 3060

Last Updated: July 2024

Overview

The Massey Ferguson 3060 is a robust row-crop tractor powered by a 69.7 hp Perkins A4.248 liquid-cooled diesel engine with a rated speed of 2200 RPM. It features a 32-speed fully synchronized transmission with power shift and SpeedShift capabilities. The engine produces a maximum torque of 200.6 lb-ft at 1288 RPM with a 20.7% torque rise. At rated speed, it consumes 4.42 gal/hr of fuel with an efficiency of 0.446 lb/hp.hr. The tractor is available in 2WD and 4WD configurations with operating weights of 8420 lbs and 8985 lbs, respectively. It achieves a maximum drawbar power of 55.5 hp at 6.66 mph with a 3125 lbs pull, and a fuel efficiency of 12.79 Hp.hr/gal at this power level. The hydraulic system can exert a maximum force of 5530 lbs with a pump delivery rate of 13.6 GPM at minimum pressure and 12.4 GPM at 2540 psi. The tractor features power steering, a three-point hitch (Category II), and an open-center hydraulic system.
Show more...

Key Specifications

Category: Row Crop

Power Output: 69.7

Transmission: Fully synchronized | Two-speed power shift | SpeedShift

Drive Type: 2WD | 4WD

Operating Weight: 8420 (2WD) | 8985 (4WD)

Fuel Type: Diesel

Image Gallery

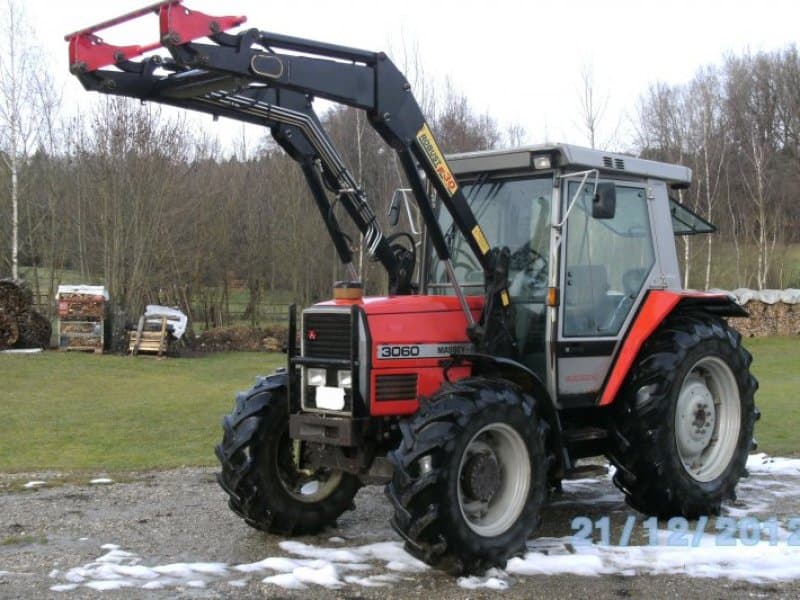

Massey Ferguson 3060 Tractor Massey Ferguson 3060 Tractor Massey Ferguson 3060 Tractor Massey Ferguson 3060 Tractor Massey Ferguson 3060 Tractor Massey Ferguson 3060 Tractor

Massey Ferguson 3060 vs. Similar Tractors

Power Output
Below Average
Greater than 10% of similar tractors.
Operating Weight
Above Average
Greater than 90% of similar tractors.

Technical Specifications

Engine

Manufacturer
Perkins
Model
A4.248
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Naturally aspirated
Cylinders
4
Displacement (ci)
248
Bore (in)
-
Stroke (in)
-
Rated RPM
2200
Power Output (hp)
69.7

Transmission

Type
Fully synchronized | Two-speed power shift | SpeedShift
Forward Gears
32
Reverse Gears
32
Total Gears
-

Dimensions

Length (in)
157.3 (2WD) | 158.4 (4WD)
Width (in)
72.1
Height (in)
76.2 (2WD Steering wheel) | 76.8 (4WD Steering wheel) | 103.6 (Cab) | 103 (Exhaust)
Operating Weight (lb)
8420 (2WD) | 8985 (4WD)

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD | 4x4 4WD
Drive Type
2WD | 4WD
Steering Type
Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Rear: Two 18.4-30; 6: 15 psi (100 kPa) | Front (2WD): Two 7.50-16; 8: 36 psi (250 kPa) | Front (4WD): Two 12.4-24; 6: 16 psi (110 kPa)
Manufacture - End Year
-
Hitch Type
Three-Point Hitch
Hitch Category
II
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
ROPS | Cab
Starter Type
Electric
Brake Type
-
Hydraulic System Type
Open center

Test Results

Nebraska Tractor Test Laboratory - Test Date: March to April, 1987

Maximum Power and Fuel Consumption

  • Maximum Power: 69.7 HP (52.0 kW) at 2200 rpm
  • Fuel Consumption at Rated Engine Speed: 4.42 Gal/hr (16.74 l/h) with a fuel efficiency of 0.446 lb/hp.hr (0.271 kg/kW.h)
  • Specific Fuel Consumption at Standard PTO Speed (540 rpm): 0.424 lb/hp.hr (0.258 kg/kW.h) with a fuel efficiency of 16.50 Hp.hr/gal (3.25 kW.h/l)

Drawbar Performance

  • Maximum Drawbar Power: 55.5 HP (41.4 kW) with a drawbar pull of 3125 lbs (13.9 kN) at a speed of 6.66 mph (10.71 km/h)
  • Fuel Consumption at Maximum Drawbar Power: 0.547 lb/hp.hr (0.333 kg/kW.h) with a fuel efficiency of 12.79 Hp.hr/gal (2.52 kW.h/l)

Torque and Engine Performance

  • Maximum Torque: 200.6 lb.-ft. (272.0 Nm) at 1288 rpm
  • Torque Rise: 20.7%

Hydraulic Performance

  • Maximum Force Exerted Through Whole Range: 5530 lbs (24.6 kN)
  • Pump Delivery Rate at Minimum Pressure: 13.6 GPM (51.5 l/min)
  • Hydraulic Power: 18.4 HP (13.7 kW) at a delivery pressure of 2540 psi (175 bar)

Overall Efficiency

  • Fuel Efficiency at Varying Power: Achieved a fuel efficiency of 15.79 Hp.hr/gal (3.11 kW.h/l) at rated engine speed

    Nebraska Tractor Test Lab. (1987). Nebraska Summary: S009-S010 Massey Ferguson 3060. Lincoln, NE: Nebraska Tractor Test Laboratory. Retrieved from https://digitalcommons.unl.edu/tractormuseumlit/2669
