Massey Ferguson 30

Last Updated: September 2024

Overview

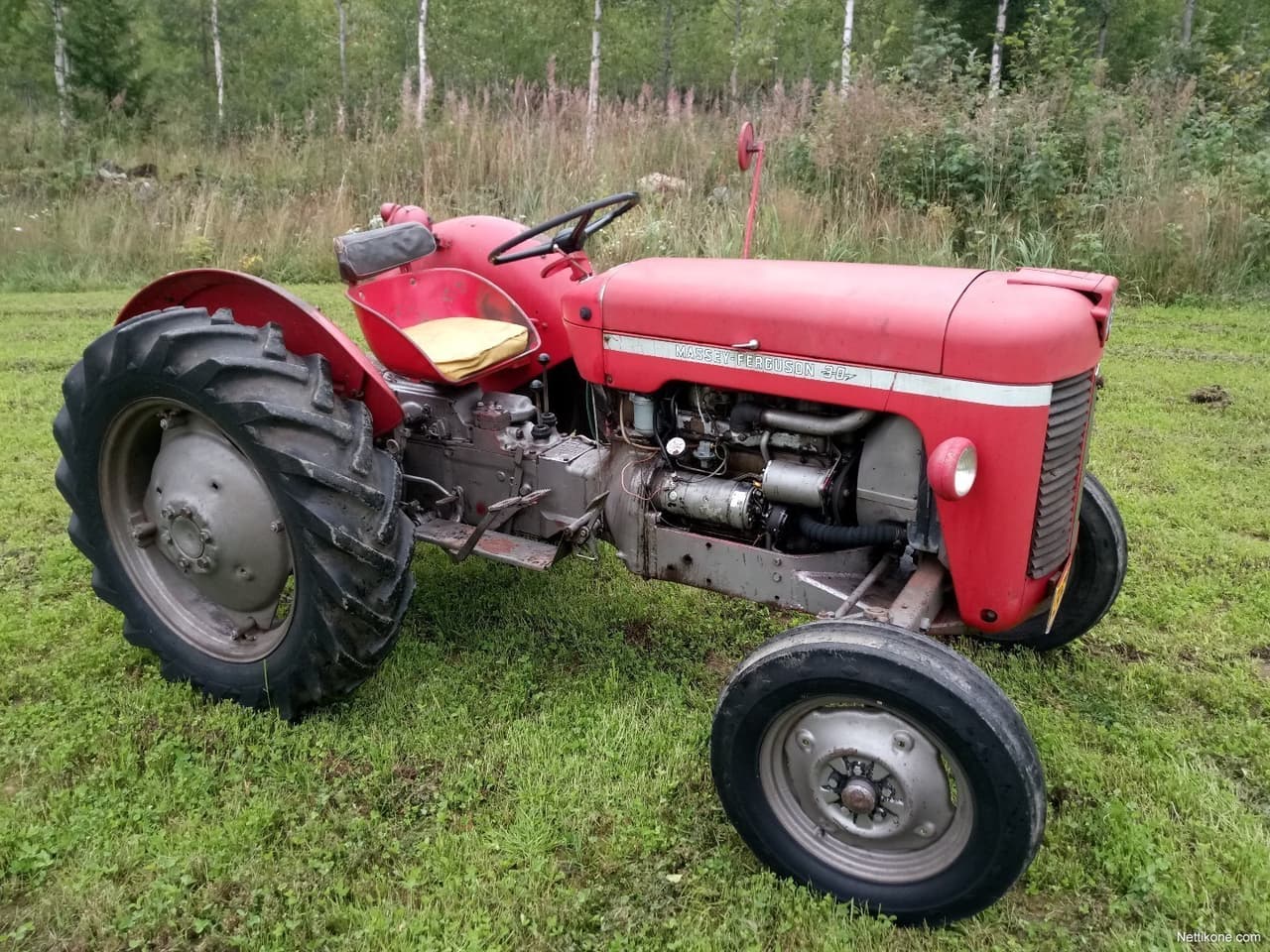

The Massey Ferguson 30 is a utility tractor that was made from 1963 to 1964. It's a small, simple tractor with a 2-wheel drive system and manual steering. The tractor has a 10-speed manual transmission with 8 forward gears and 2 reverse gears, giving farmers good control over their work speed.

This tractor is powered by a Perkins A4.107 diesel engine. The engine has 4 cylinders and is liquid-cooled, which helps it run smoothly. It produces 30 horsepower, which is below average for tractors but enough for many farm tasks. The engine size is also below average, but it's designed to be fuel-efficient. The tractor weighs 3000 pounds, making it lighter than many other tractors. It has a Category I hitch that can lift up to 2270 pounds, which is above average and good for attaching various tools. The Massey Ferguson 30 also has a rear PTO (Power Take-Off) that spins at 54 rpm, useful for running attachments.
Show more...

Key Specifications

Category: Utility

Power Output: 30 hp (22.4 kW)

Transmission: Manual

Drive Type: 2WD

Operating Weight: 3000 lb (1361 kg)

Fuel Type: Diesel

Massey Ferguson 30 vs. Similar Tractors

Power Output

The Power Output for the Massey Ferguson 30 is Below Average. It is greater than 25% of similar Utility tractors in our database.

Horsepower distribution of Utility tractors

(across 4.7K+ tractors in our database)

Operating Weight

The Operating Weight for the Massey Ferguson 30 is Below Average. It is greater than 26% of similar Utility tractors in our database.

Operating weight distribution of Utility tractors

(across 4.4K+ tractors in our database)

Engine Displacement

The Engine Displacement for the Massey Ferguson 30 is Below Average. It is greater than 28% of similar Utility tractors in our database.

Engine displacement distribution of Utility tractors

(across 1K+ tractors in our database)

Engine Rated RPM

The Engine Rated RPM for the Massey Ferguson 30 is Average. It is greater than 51% of similar Utility tractors in our database.

Engine rated RPM distribution of Utility tractors

(across 1K+ tractors in our database)

Technical Specifications

Engine

Manufacturer
Perkins
Model
A4.107
Cooling Type
Liquid-cooled
Cylinder Orientation
Inline
Fuel Type
Diesel
Induction Type
Naturally aspirated
Cylinders
4
Displacement
107 ci (1.8 L)
Bore
3.13 in (79.5 mm)
Stroke
3.50 in (88.9 mm)
Rated RPM
2400
Power Output
30 hp (22.4 kW)

Transmission

Type
Manual
Forward Gears
8
Reverse Gears
2
Total Gears
10

Drivetrain

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
Manual
