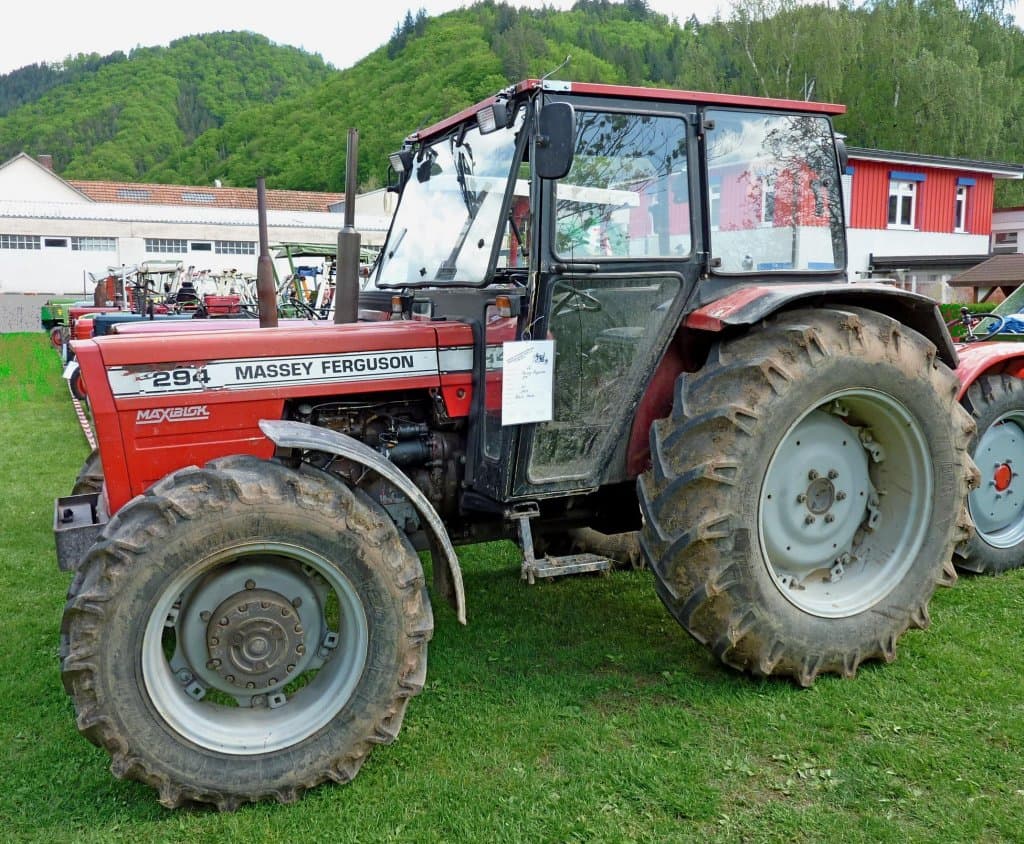

Massey Ferguson 294

Last Updated: June 2024

Overview

The Massey Ferguson 294 is a utility tractor that was designed for a variety of agricultural tasks. This model comes equipped with a four-wheel-drive chassis, specifically a 4x4 MFWD 4WD configuration, which means that it provides power to all four wheels, improving traction in difficult conditions. It's powered by a reliable Perkins A4.248 four-cylinder diesel engine with a 248 cubic-inch displacement. The cooling system is liquid-based to manage engine heat efficiently. It features hydrostatic power steering for easier maneuverability. The tractor is outfitted with a 12-speed synchromesh transmission, featuring 12 forward and 4 reverse gears, making it versatile for different farming operations. The tractor has a wheelbase of 87.2 inches, with standard front ag tires of 12.4x24 and rear ag tires of 18.4x30. The open operator station type indicates simplicity in design and lower cost of maintenance, while the electric starter system ensures quick and reliable engine startups. As for hitching capabilities, it comes with a Category II hitch, which is common for tractors of this size and indicates a good lifting capacity.
Show more...

Key Specifications

Category: Utility

Transmission: Synchromesh

Drive Type: MFWD (Mechanical Front Wheel Drive)

Operating Weight: 6720

Fuel Type: Diesel

Massey Ferguson 294 vs. Similar Tractors

Operating Weight
Average
Greater than 51% of similar tractors.

Technical Specifications

Engine

Manufacturer
Perkins
Model
A4.248
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Direct injection
Cylinders
4
Displacement (ci)
248
Bore (in)
3.975
Stroke (in)
5
Rated RPM
2100
Power Output (hp)
-

Transmission

Type
Synchromesh
Forward Gears
12
Reverse Gears
4
Total Gears
-

Dimensions

Length (in)
-
Width (in)
-
Height (in)
-
Operating Weight (lb)
6720

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
MFWD (Mechanical Front Wheel Drive)
Steering Type
Hydrostatic power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
24
Front Tire Width (in)
12.4
Rear Tire Diameter (in)
30
Rear Tire Width (in)
18.4
Front/Rear Rim Diameter (in)
-
Tire Type
Standard (ag)
Manufacture - End Year
-
Hitch Type
Category II
Hitch Category
II
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
Open
Starter Type
Electric (12 volts)
Brake Type
-
Hydraulic System Type
-
