Massey Ferguson 284S

Last Updated: June 2024

Overview

The Massey Ferguson 284S is a utility tractor that was manufactured by Massey Ferguson. It features a 4x2 2WD chassis and is powered by a 66 hp Perkins A4.236 four-cylinder diesel engine, which offers a displacement of 235.5 cubic inches and a power output of 66 hp at 2150 RPM. The transmission is a manual type, offering 12 forward and 4 reverse gears. With a wheelbase of 97.6 inches for the 2WD model, the tractor has a length of 158.3 inches and a height of 100.8 inches. Its operating weight ranges from 7144 to 7505 pounds, depending on specific configurations and options. This model is equipped with hydrostatic power steering and a direct injection fuel system, enhancing its efficiency and maneuverability in a variety of agricultural tasks. The tire setup includes 7.50-20 front tires (for the 2WD variant) and 16.9-30 rear tires, suitable for a range of field conditions.
Show more...

Key Specifications

Category: Utility

Power Output: 66

Transmission: Manual

Drive Type: 2WD

Operating Weight: 7144 (2WD) to 7505 lbs (assuming range accounts for additional options or configurations)

Fuel Type: Diesel

Image Gallery

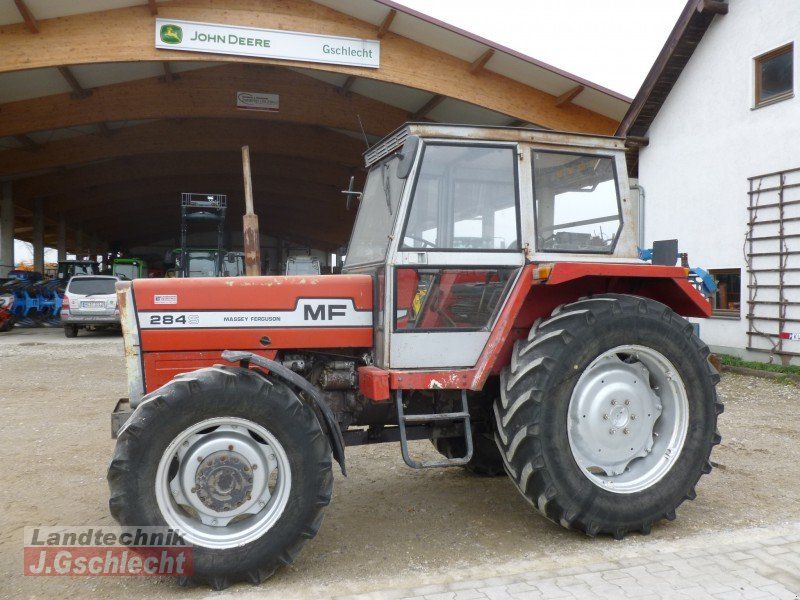

Massey Ferguson 284S Tractor Massey Ferguson 284S Tractor Massey Ferguson 284S Tractor Massey Ferguson 284S Tractor Massey Ferguson 284S Tractor Massey Ferguson 284S Tractor Massey Ferguson 284S Tractor Massey Ferguson 284S Tractor Massey Ferguson 284S Tractor Massey Ferguson 284S Tractor

Massey Ferguson 284S vs. Similar Tractors

Power Output
Average
Greater than 62% of similar tractors.
Operating Weight
Excellent
Greater than 93% of similar tractors.

Technical Specifications

Engine

Manufacturer
Perkins
Model
A4.236
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Direct injection
Cylinders
4
Displacement (ci)
235.5
Bore (in)
3.875
Stroke (in)
5
Rated RPM
2150
Power Output (hp)
66

Transmission

Type
Manual
Forward Gears
12
Reverse Gears
4
Total Gears
-

Dimensions

Length (in)
158.3
Width (in)
-
Height (in)
100.8
Operating Weight (lb)
7144 (2WD) to 7505 lbs (assuming range accounts for additional options or configurations)

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
Hydrostatic power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
20
Front Tire Width (in)
-
Rear Tire Diameter (in)
30
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag (Agricultural)
Manufacture - End Year
-
Hitch Type
Three-Point Hitch (assumed from "Rear Type: II")
Hitch Category
II (Two)
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
-
Brake Type
-
Hydraulic System Type
-
