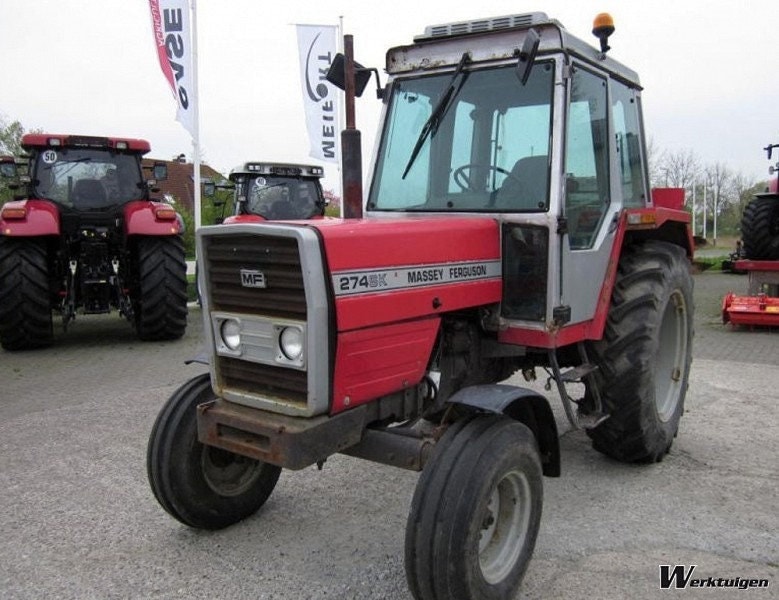

Massey Ferguson 274SK

Last Updated: June 2024

Overview

The Massey Ferguson 274SK is a medium horsepower tractor specifically built with a 4x2 2WD chassis, making it suitable for a variety of farm tasks that don't require four-wheel drive. It's powered by a 60-63 horsepower Perkins A4.236 diesel engine, with a displacement of 235.5 cubic inches, and is capable of delivering significant torque at low RPMs. The tractor includes a manual 12-speed transmission, with 12 forward gears and 4 reverse gears, facilitating a range of speed options for different working conditions. Hydrostatic power steering aids maneuverability. The 274SK model's wheelbase is 93.3 inches, supporting stable operation. Standard tire fitment includes 7.50-18 front tires and 12.4-36 rear tires, optimized for agricultural tasks. This tractor has an operating weight ranging from 6439 to 6880 pounds and should serve well for various moderate farm work.
Show more...

Key Specifications

Power Output: 60-63

Transmission: Manual

Drive Type: 2WD

Operating Weight: 6439 - 6880

Fuel Type: Diesel

Technical Specifications

Engine

Manufacturer
Perkins
Model
A4.236
Cooling Type
-
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Naturally aspirated
Cylinders
4
Displacement (ci)
235.5
Bore (in)
3.875
Stroke (in)
5
Rated RPM
2000
Power Output (hp)
60-63

Transmission

Type
Manual
Forward Gears
12
Reverse Gears
4
Total Gears
16

Dimensions

Length (in)
155.9
Width (in)
-
Height (in)
103.5
Operating Weight (lb)
6439 - 6880

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
Hydrostatic power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
18
Front Tire Width (in)
7.5
Rear Tire Diameter (in)
36
Rear Tire Width (in)
12.4
Front/Rear Rim Diameter (in)
-
Tire Type
Agricultural
Manufacture - End Year
-
Hitch Type
-
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
-
Brake Type
-
Hydraulic System Type
-
