Massey Ferguson 2745

Last Updated: June 2024

Overview

The Massey Ferguson 2745 is a 2WD row-crop tractor from the 2000 series, manufactured by Massey Ferguson between 1978 and 1983. Equipped with a Perkins 8.540 eight-cylinder diesel engine capable of producing 140 horsepower at 2600 RPM and a 3-speed power shift transmission with 24 forward and 6 reverse gears or alternatively, a mechanical shuttle transmission with 8 forward and 6 reverse. This robust tractor features hydrostatic power steering, hydraulic wet disc brakes, and can be outfitted with either a standard cab with air-conditioning or a platform with a four-post ROPS. Intended for demanding field work, the MF 2745 has proven to be a reliable and powerful asset on the farm.
Show more...

Key Specifications

Category: Row Crop

Power Output: 140 HP

Drive Type: 2WD

Operating Weight: 15190 lbs

Fuel Type: Diesel

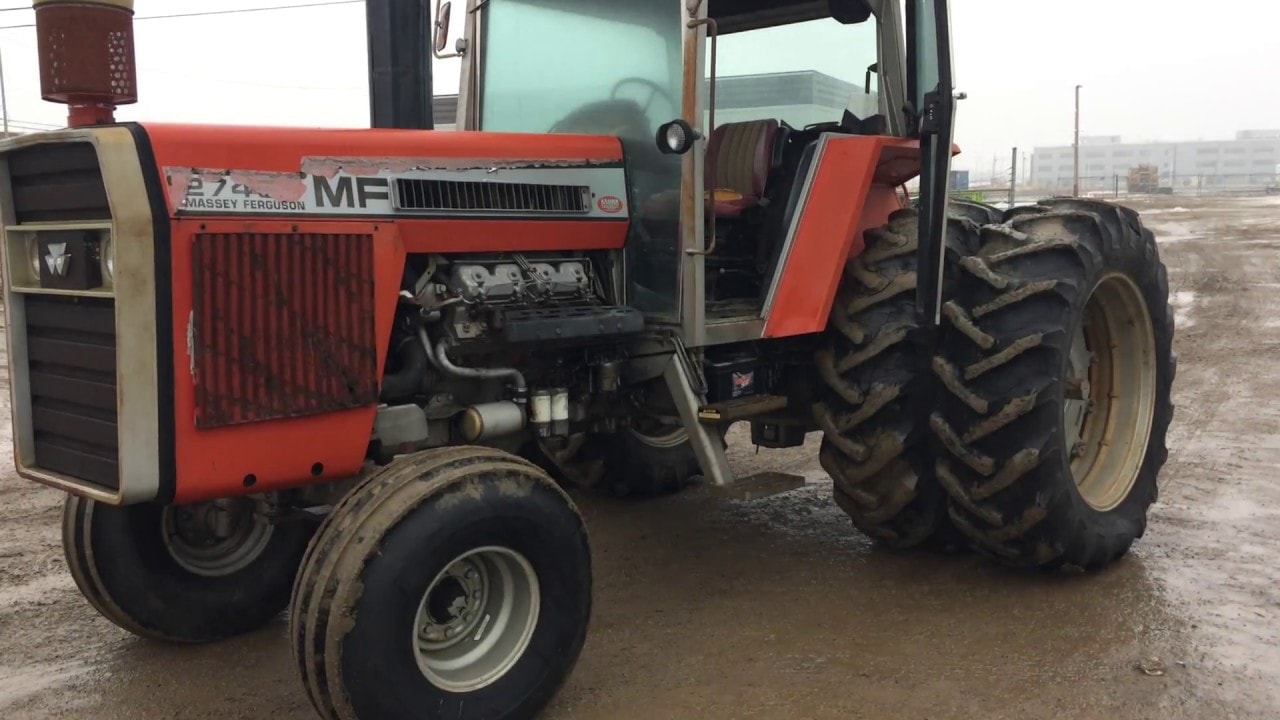

Image Gallery

Massey Ferguson 2745 Tractor Massey Ferguson 2745 Tractor Massey Ferguson 2745 Tractor Massey Ferguson 2745 Tractor Massey Ferguson 2745 Tractor Massey Ferguson 2745 Tractor

Massey Ferguson 2745 vs. Similar Tractors

Power Output
Average
Greater than 48% of similar tractors.
Operating Weight
Average
Greater than 61% of similar tractors.

Technical Specifications

Engine

Manufacturer
Perkins
Model
8.54
Cooling Type
Liquid-cooled
Cylinder Orientation
Inline
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Natural aspiration
Cylinders
8
Displacement (ci)
539 ci
Bore (in)
4.25 inches
Stroke (in)
4.76 inches
Rated RPM
2600 RPM
Power Output (hp)
140 HP

Transmission

Type
-
Forward Gears
24
Reverse Gears
6
Total Gears
-

Dimensions

Length (in)
181.6 inches
Width (in)
91.6 inches (standard axle)
Height (in)
112 inches (cab)
Operating Weight (lb)
15190 lbs

Power Take-Off (PTO)

PTO Type
Independent with hydraulic clutch
PTO Speed 1 (rpm)
540 rpm
PTO Speed 2 (rpm)
1000 rpm
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
Hydrostatic power
Coolant Capacity (qts)
50 qts
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag
Manufacture - End Year
1983
Hitch Type
Three-Point Hitch
Hitch Category
Category 2
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
Cab standard with air-conditioning or four-post ROPS
Starter Type
Electric
Brake Type
Hydraulic wet disc
Hydraulic System Type
Open Center
