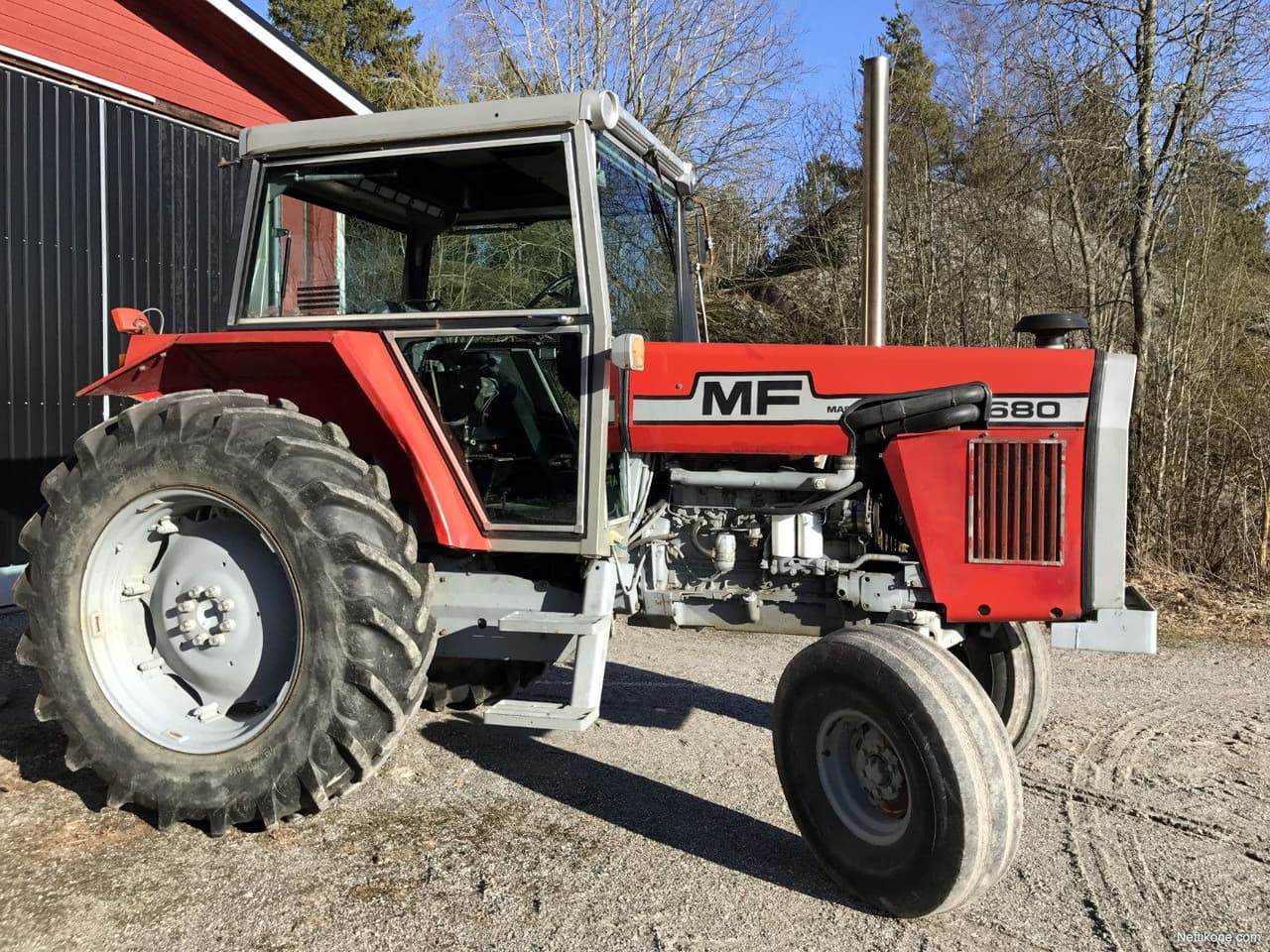

Massey Ferguson 2680 HD

Last Updated: June 2024

Overview

The Massey Ferguson 2680 HD is a utility tractor designed for a variety of tasks. It features a two-wheel drive (2WD) chassis with a 4x2 configuration and power steering for easier maneuverability. This tractor utilizes a synchronized shuttle transmission with 12 forward and 4 reverse gears to facilitate efficient field work and transport. The tractor is powered by a 269 cubic inch, turbocharged Perkins diesel engine with a liquid cooling system. It has an engine power output of 97 horsepower and operates at a rated RPM of 2200. The robust open center hydraulic system aids in implementing operations and attachments, and the tractor is well-equipped for heavy-use conditions. Designed with functionalities such as glow plugs for better cold starts and meeting Tier III emissions standards, the Massey Ferguson 2680 HD is a reliable machine for farmers seeking solid performance in a utility tractor.
Show more...

Key Specifications

Category: Utility

Power Output: 97

Transmission: Synchronized shuttle

Drive Type: 2WD

Operating Weight: 6812 (2WD ROPS), 8505 (4WD Cab Operating)

Fuel Type: Diesel

Image Gallery

Massey Ferguson 2680 HD Tractor Massey Ferguson 2680 HD Tractor Massey Ferguson 2680 HD Tractor Massey Ferguson 2680 HD Tractor Massey Ferguson 2680 HD Tractor Massey Ferguson 2680 HD Tractor Massey Ferguson 2680 HD Tractor Massey Ferguson 2680 HD Tractor Massey Ferguson 2680 HD Tractor Massey Ferguson 2680 HD Tractor Massey Ferguson 2680 HD Tractor Massey Ferguson 2680 HD Tractor

Massey Ferguson 2680 HD vs. Similar Tractors

Power Output
Above Average
Greater than 80% of similar tractors.
Operating Weight
Above Average
Greater than 79% of similar tractors.

Technical Specifications

Engine

Manufacturer
Perkins
Model
1104D-44T
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged
Cylinders
4
Displacement (ci)
269
Bore (in)
4.134
Stroke (in)
5
Rated RPM
2200
Power Output (hp)
97

Transmission

Type
Synchronized shuttle
Forward Gears
12
Reverse Gears
4
Total Gears
-

Dimensions

Length (in)
155
Width (in)
83.7
Height (in)
103.1 (ROPS), 106.5 (Cab)
Operating Weight (lb)
6812 (2WD ROPS), 8505 (4WD Cab Operating)

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Standard ag
Manufacture - End Year
2013
Hitch Type
Three-Point Hitch
Hitch Category
II
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
ROPS, Cab
Starter Type
Electric
Brake Type
-
Hydraulic System Type
Open center
