Massey Ferguson 2640

Last Updated: June 2024

Overview

The Massey Ferguson 2640, produced between 1980 and 1985, was designed to meet the needs of row-crop farmers requiring a robust and versatile tractor. It comes in both 2WD and 4WD versions, with a heavy-duty Perkins 6-cylinder, 354 cubic inch diesel engine producing a solid 110 horsepower at 2400 RPM. Equipped with a partial power shift transmission, the machine offers 16 forward and 12 reverse gears for efficient field operations. The tractor has a rated operating weight of 12,435 pounds, hydrostatic power steering for easier maneuverability, and hydraulic wet disc brakes for effective and safe stopping power. Its dimensions ensure it is suitable for a variety of tasks while maintaining stability. The Massey Ferguson 2640 has a three-point hitch with a lifting capacity of 9,920 pounds at the ends, an independent PTO, and hydrostatic power steering, fulfilling the daily demands of rigorous field work.
Show more...

Key Specifications

Category: Row Crop

Power Output: 110 (confirmed by other data, higher figure of 120 hp likely due to rounding or different testing standards)

Transmission: Partial power shift with dry disc clutch

Drive Type: 2WD or 4WD

Operating Weight: 12,435

Fuel Type: Diesel

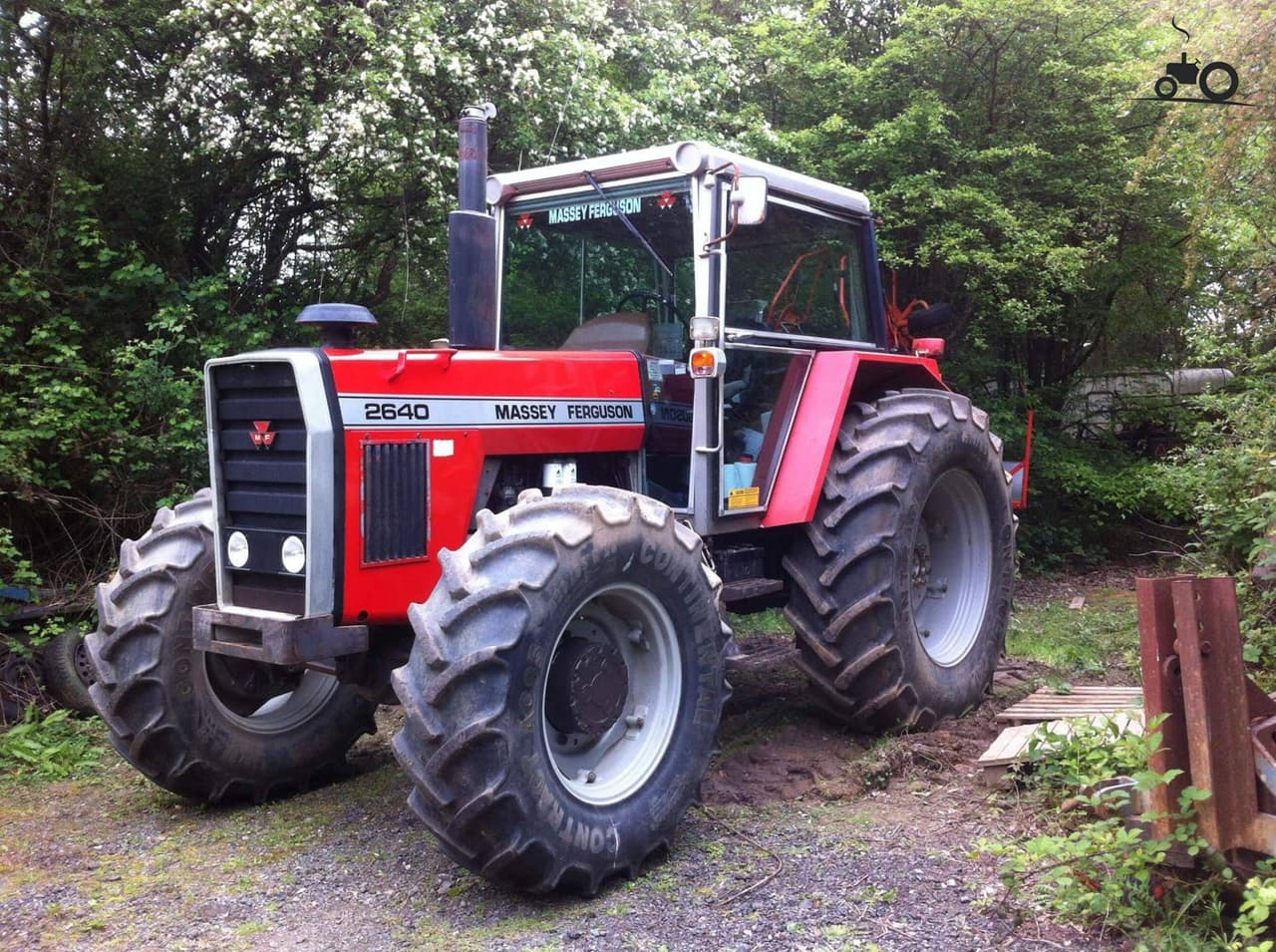

Image Gallery

Massey Ferguson 2640 Tractor Massey Ferguson 2640 Tractor Massey Ferguson 2640 Tractor Massey Ferguson 2640 Tractor Massey Ferguson 2640 Tractor Massey Ferguson 2640 Tractor Massey Ferguson 2640 Tractor Massey Ferguson 2640 Tractor Massey Ferguson 2640 Tractor Massey Ferguson 2640 Tractor

Massey Ferguson 2640 vs. Similar Tractors

Power Output
Below Average
Greater than 29% of similar tractors.
Hitch Capacity
Below Average
Greater than 13% of similar tractors.
Operating Weight
Poor
Greater than 6% of similar tractors.

Technical Specifications

Engine

Manufacturer
Perkins
Model
A6.354.4
Cooling Type
Liquid-cooled
Cylinder Orientation
Inline
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Natural aspirated
Cylinders
6
Displacement (ci)
354
Bore (in)
3.875
Stroke (in)
5
Rated RPM
2400
Power Output (hp)
110 (confirmed by other data, higher figure of 120 hp likely due to rounding or different testing standards)

Transmission

Type
Partial power shift with dry disc clutch
Forward Gears
16
Reverse Gears
12
Total Gears
-

Dimensions

Length (in)
200.4
Width (in)
83.5
Height (in)
112.2
Operating Weight (lb)
12,435

Power Take-Off (PTO)

PTO Type
Independent
PTO Speed 1 (rpm)
540
PTO Speed 2 (rpm)
1000
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD or 4x4 MFWD
Drive Type
2WD or 4WD
Steering Type
Hydrostatic power
Coolant Capacity (qts)
28.5
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag tires (agricultural)
Manufacture - End Year
1985
Hitch Type
Three-Point Hitch Rear Type II
Hitch Category
Category 3
Hitch Position
Rear
Hitch Capacity (lb)
9,920 lbs (at ends); differs between countries
Operator Station Type
-
Starter Type
Electric
Brake Type
Hydraulic wet disc
Hydraulic System Type
-
