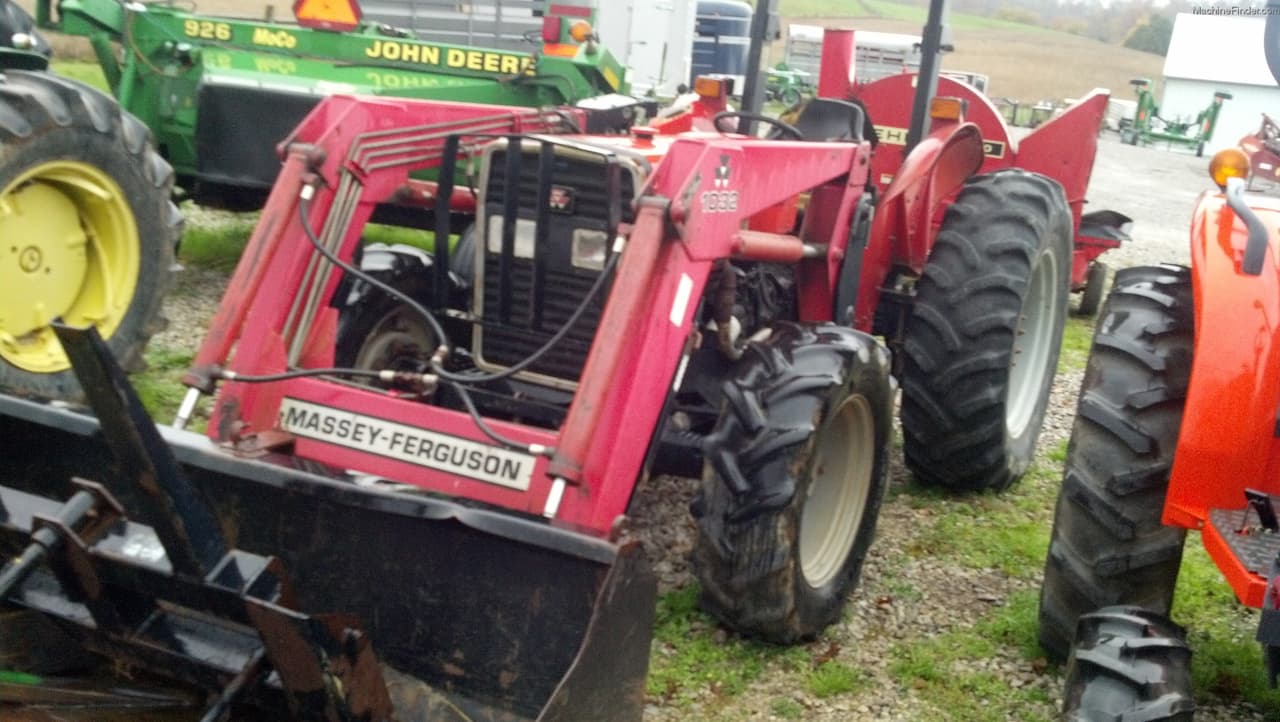

Massey Ferguson 263

Last Updated: June 2024

Overview

The Massey Ferguson 263 is a multi-purpose utility tractor that was manufactured between 1998 and 1999. It offers both 2WD and 4WD options and is powered by a reliable Perkins 903.27T, a turbocharged diesel engine, ensuring efficient performance with 60 horsepower output. With an engine displacement of 165 cubic inches, it is equipped to handle a variety of tasks. This model features a sliding gear and synchro shuttle transmission system, which includes 8 forward gears and 2 reverse gears to offer versatility in various farming and pulling operations. The tractor has a three-point hitch system for attachments, rear hitch position, and liquid-cooled engine technology for durability. The operator station is designed with ROPS, and starting is facilitated with a 12-volt electric system. However, specific details like the size of the front and rear tires or PTO speeds remain unknown.
Show more...

Key Specifications

Category: Utility

Power Output: 60

Transmission: Sliding gear, Synchro shuttle

Drive Type: 4WD, 2WD

Operating Weight: 2WD: 4915, 4WD: 5315

Fuel Type: Diesel

Image Gallery

Massey Ferguson 263 Tractor Massey Ferguson 263 Tractor Massey Ferguson 263 Tractor Massey Ferguson 263 Tractor Massey Ferguson 263 Tractor Massey Ferguson 263 Tractor Massey Ferguson 263 Tractor Massey Ferguson 263 Tractor

Massey Ferguson 263 vs. Similar Tractors

Power Output
Average
Greater than 58% of similar tractors.
Operating Weight
Above Average
Greater than 71% of similar tractors.

Technical Specifications

Engine

Manufacturer
Perkins
Model
903.27T
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged
Cylinders
3
Displacement (ci)
165
Bore (in)
3.74
Stroke (in)
5
Rated RPM
2250
Power Output (hp)
60

Transmission

Type
Sliding gear, Synchro shuttle
Forward Gears
8
Reverse Gears
2
Total Gears
-

Dimensions

Length (in)
2WD: 132, 4WD: 134
Width (in)
71.5
Height (in)
ROPS: 74.5, Folded ROPS: 72.5
Operating Weight (lb)
2WD: 4915, 4WD: 5315

Power Take-Off (PTO)

PTO Type
Optional Transmission or Live PTO
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
-
Drive Type
4WD, 2WD
Steering Type
-
Coolant Capacity (qts)
10.8
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag, Lawn/Turf
Manufacture - End Year
1999
Hitch Type
Three-Point Hitch
Hitch Category
II/I
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
ROPS
Starter Type
Electric
Brake Type
-
Hydraulic System Type
Open center
