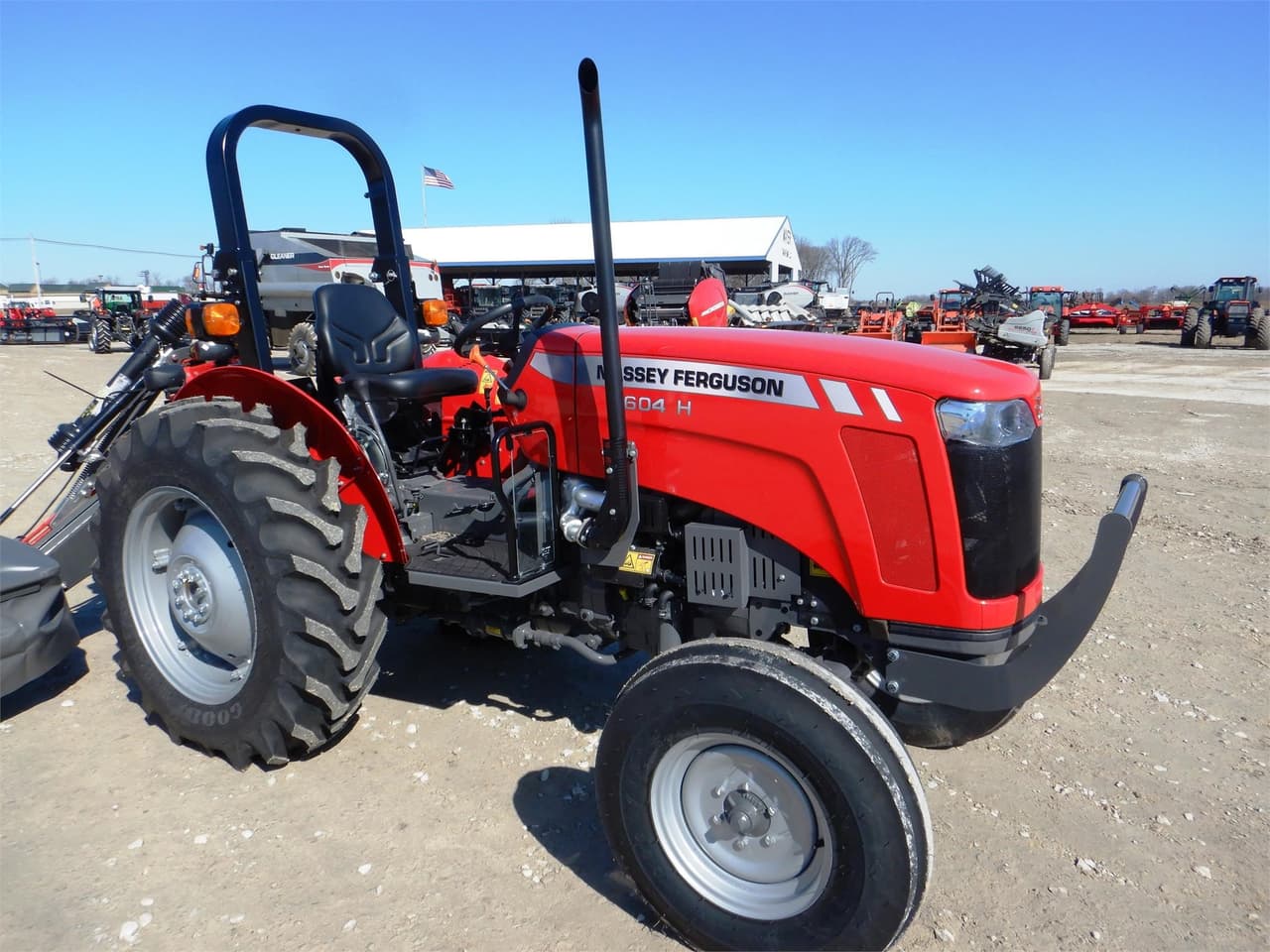

Massey Ferguson 2604H

Last Updated: June 2024

Overview

The Massey Ferguson 2604H is a utility tractor designed for various agricultural tasks, equipped with a Simpson turbocharged intercooled diesel engine that produces 45 horsepower. It operates on a power steering system and has an 8-speed gear transmission with 8 forward gears and 2 reverse gears. The chassis is a 4x2 two-wheel drive with a wheelbase measured at 80.7 inches for 2WD versions and 81.5 inches for 4WD models. It has standard agricultural tires, with optional sizes available for different applications. The tractor's operating weight ranges between 4597 pounds (for 2WD) and 4927 pounds (for 4WD), indicating a robust build suitable for its utility category. Production of the MF 2604H started in 2016 and features a Category I and II hitch with a rear positioned lift capable of handling 2204.7 pounds. Its hydraulic system is of an open center and modified closed-center type, indicative of its adaptability to various attachments and implements.
Show more...

Key Specifications

Category: Utility

Power Output: 45

Transmission: Gear

Drive Type: 2WD

Operating Weight: 4597 for 2WD, 4927 for 4WD

Fuel Type: Diesel

Massey Ferguson 2604H vs. Similar Tractors

Power Output
Average
Greater than 43% of similar tractors.
Hitch Capacity
Average
Greater than 38% of similar tractors.
Operating Weight
Above Average
Greater than 76% of similar tractors.

Technical Specifications

Engine

Manufacturer
Simpson
Model
-
Cooling Type
Liquid-cooled
Cylinder Orientation
Inline
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged intercooled
Cylinders
3
Displacement (ci)
157.9
Bore (in)
3.66
Stroke (in)
5
Rated RPM
2000
Power Output (hp)
45

Transmission

Type
Gear
Forward Gears
8
Reverse Gears
2
Total Gears
-

Dimensions

Length (in)
138 for 2WD, 139 for 4WD
Width (in)
64.6
Height (in)
90.6
Operating Weight (lb)
4597 for 2WD, 4927 for 4WD

Power Take-Off (PTO)

PTO Type
Live, Optional Dry Dual Disc
PTO Speed 1 (rpm)
540
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag
Manufacture - End Year
-
Hitch Type
Category I and II Cross Drilled Ball Ends
Hitch Category
II/I
Hitch Position
Rear
Hitch Capacity (lb)
2204.7 lbs
Operator Station Type
-
Starter Type
Electric
Brake Type
Drum brakes
Hydraulic System Type
Open Center and Modified Closed Center
