Massey Ferguson 254S

Last Updated: June 2024

Overview

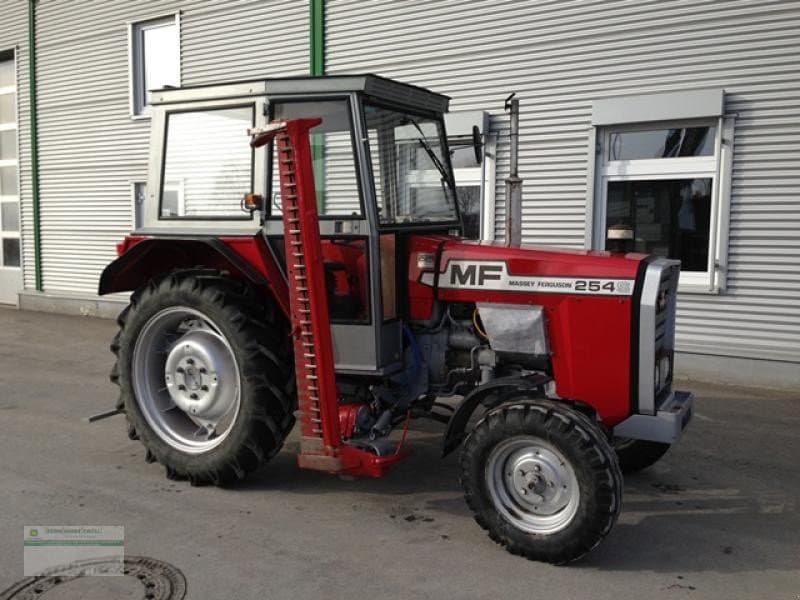

The Massey Ferguson 254S is a utility tractor that offers a balance of efficiency and simplicity for various farming tasks. This model is characterized by its 2WD (4x2) chassis and is powered by a Perkins AD3.152 turbocharged diesel engine with three cylinders and a displacement of 152.7 ci. At its core, this 56 hp engine with liquid-cooling maintains a consistent performance with a rated RPM of 2200 and a torque of 131.3 lb-ft at 1200 RPM. The manual transmission offers 12 forward gears and 4 reverse gears, combined with hydrostatic power steering for easier maneuverability. Practical features include a wheelbase of 81.1 inches, an operating weight of 4674 pounds for the 2WD model, and agricultural tires described by sizes (7.50-16 for front and 12.4-32 for rear). With a total length of 144.1 inches and a height of 94.5 inches, the 254S is built to handle a range of tasks with efficiency and reliability. While the manufacture start and end years are unspecified, the Massey Ferguson 254S retains a significant presence in the utility tractor market due to its versatile applications and robust build quality.
Show more...

Key Specifications

Category: Utility

Power Output: 56

Transmission: Manual

Drive Type: 2WD

Operating Weight: 4674 (2WD)

Fuel Type: Diesel

Massey Ferguson 254S vs. Similar Tractors

Power Output
Average
Greater than 54% of similar tractors.
Operating Weight
Above Average
Greater than 76% of similar tractors.

Technical Specifications

Engine

Manufacturer
Perkins
Model
AD3.152
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged
Cylinders
3
Displacement (ci)
152.7
Bore (in)
3.6
Stroke (in)
5
Rated RPM
2200
Power Output (hp)
56

Transmission

Type
Manual
Forward Gears
12
Reverse Gears
4
Total Gears
-

Dimensions

Length (in)
144.1
Width (in)
-
Height (in)
94.5
Operating Weight (lb)
4674 (2WD)

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
Hydrostatic power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag
Manufacture - End Year
-
Hitch Type
-
Hitch Category
Category 3
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
-
Brake Type
-
Hydraulic System Type
-
