Massey Ferguson 253

Last Updated: July 2024

Overview

The Massey Ferguson 253 is a utility tractor with a 3-cylinder turbocharged Perkins diesel engine (Serial No. CN 31219U8264 15S) producing 45.9 hp at 2250 rpm. Key specs: 153 ci displacement, 3.60 in bore, 15.2:1 compression ratio. 8-speed selective gear fixed ratio transmission. 2WD operating weight 4535 lbs. Rear tread width 56.3-83.9 in, front 48.3-72.3 in, 76 in wheelbase. Maximum torque 125 lb-ft at 1600 rpm with 16.9% rise. 41.2 hp PTO power at 540 rpm. 36.2 hp maximum drawbar power with 2450 lbs pull. Hydraulics: 2765 lbs maximum force, 5.3 GPM pump flow rate, 8.3 hp at 2900 psi. Wet disc brakes.
Show more...

Key Specifications

Category: Utility

Power Output: 45.9

Transmission: Selective gear fixed ratio

Operating Weight: 4535 (2WD)

Fuel Type: Diesel

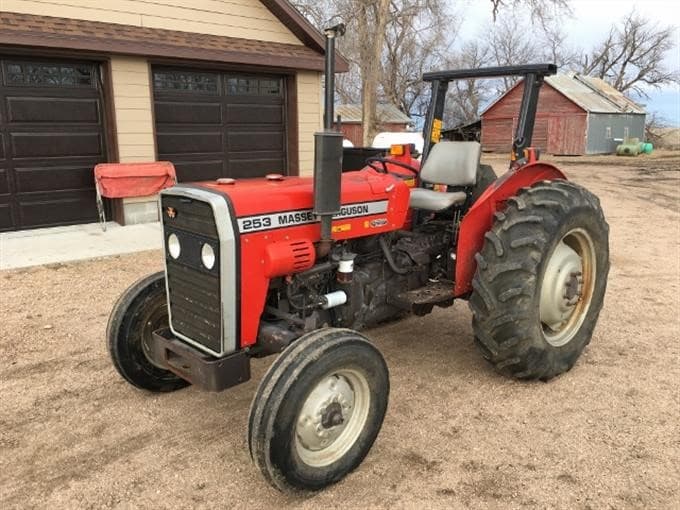

Image Gallery

Massey Ferguson 253 Tractor Massey Ferguson 253 Tractor Massey Ferguson 253 Tractor Massey Ferguson 253 Tractor Massey Ferguson 253 Tractor Massey Ferguson 253 Tractor Massey Ferguson 253 Tractor Massey Ferguson 253 Tractor Massey Ferguson 253 Tractor Massey Ferguson 253 Tractor Massey Ferguson 253 Tractor Massey Ferguson 253 Tractor

Massey Ferguson 253 vs. Similar Tractors

Power Output
Average
Greater than 55% of similar tractors.
Operating Weight
Excellent
Greater than 96% of similar tractors.

Technical Specifications

Engine

Manufacturer
Perkins
Model
Diesel, Serial No. CN 31219U8264 15S
Cooling Type
Liquid-cooled
Cylinder Orientation
Inline
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged
Cylinders
3
Displacement (ci)
153
Bore (in)
3.60
Stroke (in)
5
Rated RPM
2250
Power Output (hp)
45.9

Transmission

Type
Selective gear fixed ratio
Forward Gears
8
Reverse Gears
2 / 8 (with synchronized manual shuttle)
Total Gears
-

Dimensions

Length (in)
125.2 (2WD) / 128 (4WD)
Width (in)
69.7 (2WD) / 73.2 (4WD)
Height (in)
86.6
Operating Weight (lb)
4535 (2WD)

Power Take-Off (PTO)

PTO Type
Live with two-stage clutch or independent (4WD)
PTO Speed 1 (rpm)
540
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD or 4x4 MFWD 4WD
Drive Type
-
Steering Type
Hydrostatic power
Coolant Capacity (qts)
10.8
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag
Manufacture - End Year
1998
Hitch Type
-
Hitch Category
II
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
Two-post ROPS
Starter Type
Electric
Brake Type
Multiple wet disc operated by foot pedals
Hydraulic System Type
Open center

Test Results

Nebraska Tractor Test Laboratory - Test Date: November 1988 to January 1989

Maximum Power and Fuel Consumption

  • Maximum Power: 45.9 HP (34.2 kW) at 2250 rpm
  • Fuel Consumption at Maximum Power: 2.82 Gal/hr (10.66 l/h) with a fuel efficiency of 0.427 lb/hp.hr (0.260 kg/kW.h)
  • Standard PTO Speed (540 rpm): 41.2 HP (30.7 kW) at 1789 rpm with 2.38 Gal/hr (9.01 l/h) consumption and 0.395 lb/hp.hr (0.240 kg/kW.h) efficiency

Drawbar Performance

  • Maximum Drawbar Power: 36.2 HP (27.0 kW) with a drawbar pull of 2450 lbs (10.9 kN) and a speed of 5.54 mph (8.91 km/h) at 1789 engine rpm
  • Fuel Consumption: 0.566 lb/hp.hr (0.344 kg/kW.h) with a fuel efficiency of 12.28 Hp.hr/gal (2.42 kW.h/l)

Torque and Engine Performance

  • Maximum Torque: 125.0 lb.-ft. (169.5 Nm) at 1600 rpm
  • Maximum Torque Rise: 16.9%

Hydraulic Performance

  • Maximum Force Exerted: 2765 lbs (12.3 kN)
  • Pump Delivery Rate: 5.3 GPM (20.1 l/min) at minimum pressure
  • Hydraulic Power at Maximum Pressure: 8.3 HP (6.2 kW) at 2900 psi (200 bar)

Overall Efficiency

  • Fuel Efficiency at Rated Engine Speed (2250 rpm): 16.29 Hp.hr/gal (3.21 kW.h/l)
  • Fuel Consumption: 2.82 Gal/hr (10.66 l/h) at this speed



NTTL.(1989).Nebraska Tractor Test S071 for Massey Ferguson 253 Diesel. Lincoln, NE:Nebraska Tractor Test Laboratory. Retrieved from https://digitalcommons.unl.edu/tractormuseumlit/2684
