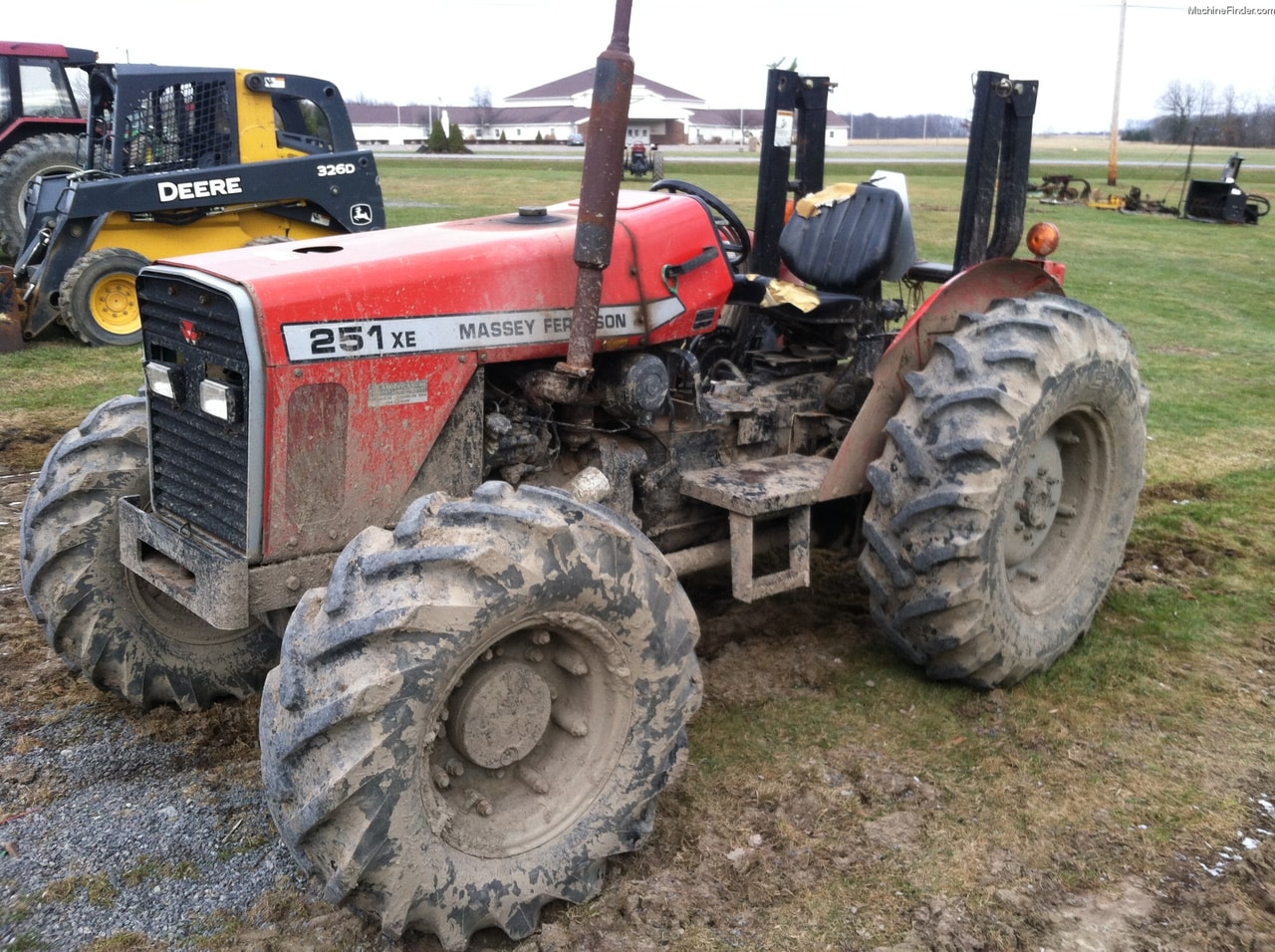

Massey Ferguson 251XE

Last Updated: June 2024

Overview

The Massey Ferguson 251XE is a multipurpose tractor equipped with the versatility to handle a variety of tasks in different farming environments. With a 48 horsepower (35.8 kW) engine manufactured by Perkins, the 251XE operates with a liquid-cooled diesel engine, facilitating efficient performance with a displacement of 165 cubic inches and rated RPM of 2250. The tractor is available in both 2WD and 4WD configurations, catering to different traction needs. It employs an 8 forward and 2 reverse gear transmission for good maneuverability and precision in movement. The 251XE maintains a practical stance in terms of design, equipped with an open center hydraulic system and rear PTO with a 540 rpm rating. The durable tractor features a dry disc clutch and electric starter, ensuring reliability and ease of operation. The tractor's measurements and weight make it suitable for tasks that require stability and strength, with a wheelbase of 78.3 inches (2WD) or 78.7 inches (4WD), width of 72 inches, and an operating weight of either 4738 lbs (2WD) or 5238 lbs (4WD). The model also supports an open station with a Roll Over Protection Structure (ROPS) to ensure operator safety.
Show more...

Key Specifications

Power Output: 48

Transmission: Gear

Drive Type: 2WD / 4WD

Operating Weight: 4738 (2WD) / 5238 (4WD)

Fuel Type: Diesel

Technical Specifications

Engine

Manufacturer
Perkins
Model
903.27
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Naturally aspirated
Cylinders
3
Displacement (ci)
165
Bore (in)
3.7
Stroke (in)
5
Rated RPM
2250
Power Output (hp)
48

Transmission

Type
Gear
Forward Gears
8
Reverse Gears
2
Total Gears
-

Dimensions

Length (in)
132.7 (2WD) / 135 (4WD)
Width (in)
72
Height (in)
96.7 (ROPS) / 93.1 (Folded ROPS)
Operating Weight (lb)
4738 (2WD) / 5238 (4WD)

Power Take-Off (PTO)

PTO Type
Rear PTO Type: 540
PTO Speed 1 (rpm)
540
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 (2WD) / 4x4 (4WD)
Drive Type
2WD / 4WD
Steering Type
-
Coolant Capacity (qts)
9.9
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag (Agricultural)
Manufacture - End Year
-
Hitch Type
Rear Type: I
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
ROPS
Starter Type
Electric
Brake Type
-
Hydraulic System Type
Open Center
