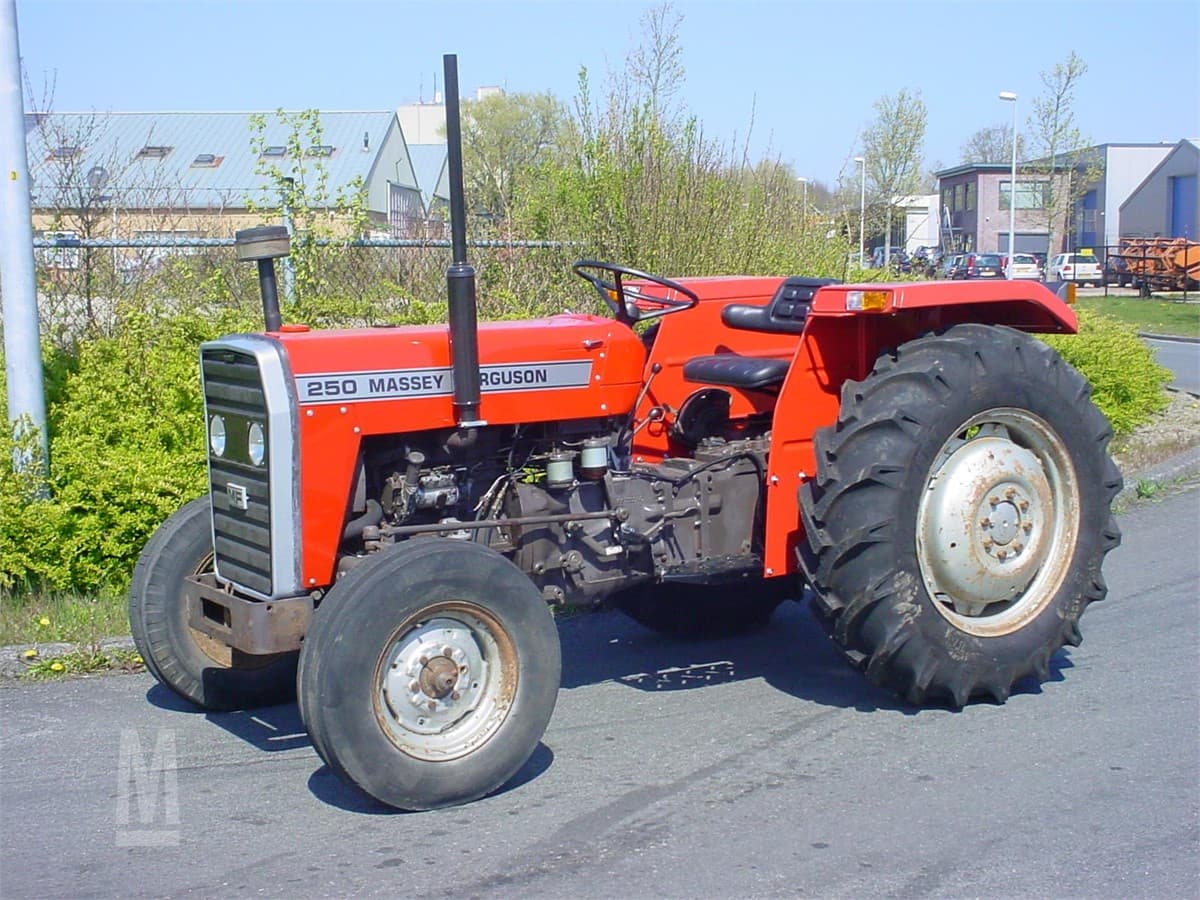

Massey Ferguson 250

Last Updated: June 2024

Overview

The Massey Ferguson 250 is a straightforward, utility-focused 2WD tractor produced in Coventry, England. Known for its robustness and simplicity, it features a three-cylinder liquid-cooled Perkins AD3.152 diesel engine, with a displacement of 152 cubic inches and an engine power output of 40 hp at 2250 rpm. Transmission includes 8 forward and 2 reverse gears. It is equipped with a differential mechanical wet disc brake system and open operator station with 2-post ROPS. The chassis is 4x2 2WD, and steering is power-assisted, making it easier to maneuver. This model is outfitted with a three-point hitch of category I and has a 540 rpm live PTO. This tractor's size and features are suitable for a variety of tasks in a small farm, orchard, or ranch setting.
Show more...

Key Specifications

Category: Utility

Power Output: 40

Drive Type: 2WD

Operating Weight: 4585

Fuel Type: Diesel

Massey Ferguson 250 vs. Similar Tractors

Power Output
Average
Greater than 37% of similar tractors.
Operating Weight
Average
Greater than 41% of similar tractors.

Technical Specifications

Engine

Manufacturer
Perkins
Model
AD3.152
Cooling Type
Liquid-cooled
Cylinder Orientation
Horizontal
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Natural aspiration
Cylinders
3
Displacement (ci)
152
Bore (in)
3.58
Stroke (in)
5
Rated RPM
2250
Power Output (hp)
40

Transmission

Type
-
Forward Gears
8
Reverse Gears
2
Total Gears
-

Dimensions

Length (in)
132.3
Width (in)
73.6
Height (in)
-
Operating Weight (lb)
4585

Power Take-Off (PTO)

PTO Type
Live
PTO Speed 1 (rpm)
540
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
Power assist
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag
Manufacture - End Year
1986
Hitch Type
Three-Point Hitch
Hitch Category
I
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
Open with two-post ROPS
Starter Type
Electric
Brake Type
Differential mechanical wet disc
Hydraulic System Type
Open center
