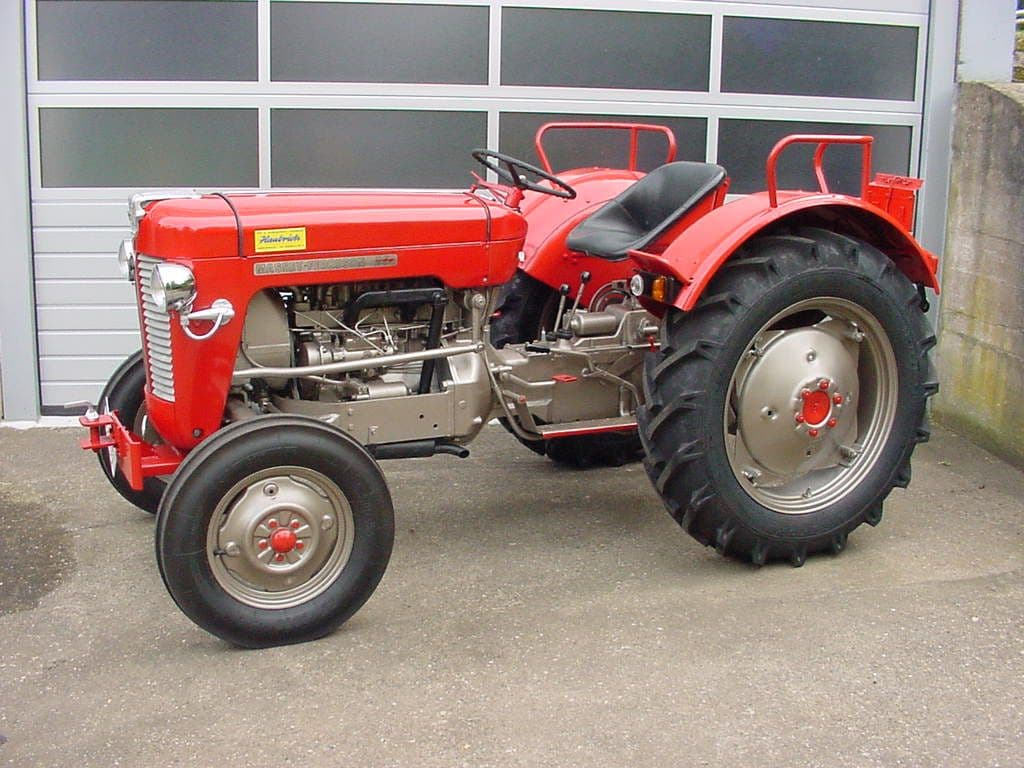

Massey Ferguson 25

The Massey Ferguson 25 is a utility tractor, identifiable by its 4x2 2WD chassis and manual steering. It is powered by a Perkins A4-107 diesel engine, which is a 4-cylinder, liquid-cooled design with a displacement of 107 cubic inches. The bore and stroke measure 3.125 inches and 3.5 inches respectively. The engine produces a power output of 25 horsepower and achieves a maximum rated RPM of 2000, with a torque rating of 75 lb-ft at 1200 RPM. The tractor utilizes an 8-speed gear transmission with 8 forward and 2 reverse gears. The weight of the tractor in operating condition is 3115 pounds, with a lighter shipping weight of 2600 pounds. Its wheelbase stands at 72 inches, ensuring stability during operation. The height to the steering wheel is 56 inches while the height to the hood is 50 inches, giving the operator a comfortable working position. The tractor's height clearance is 20 inches in the front and 19 inches at the rear, coupled with an adjustable front tread of 48 to 72 inches and rear tread of 48 to 76 inches, providing versatility across various terrains. The operator station type, PTO details, specific tire sizes, and brake types, among others, remain unspecified, reflecting typical specifications of tractors from the era when the MF 25 was produced.
