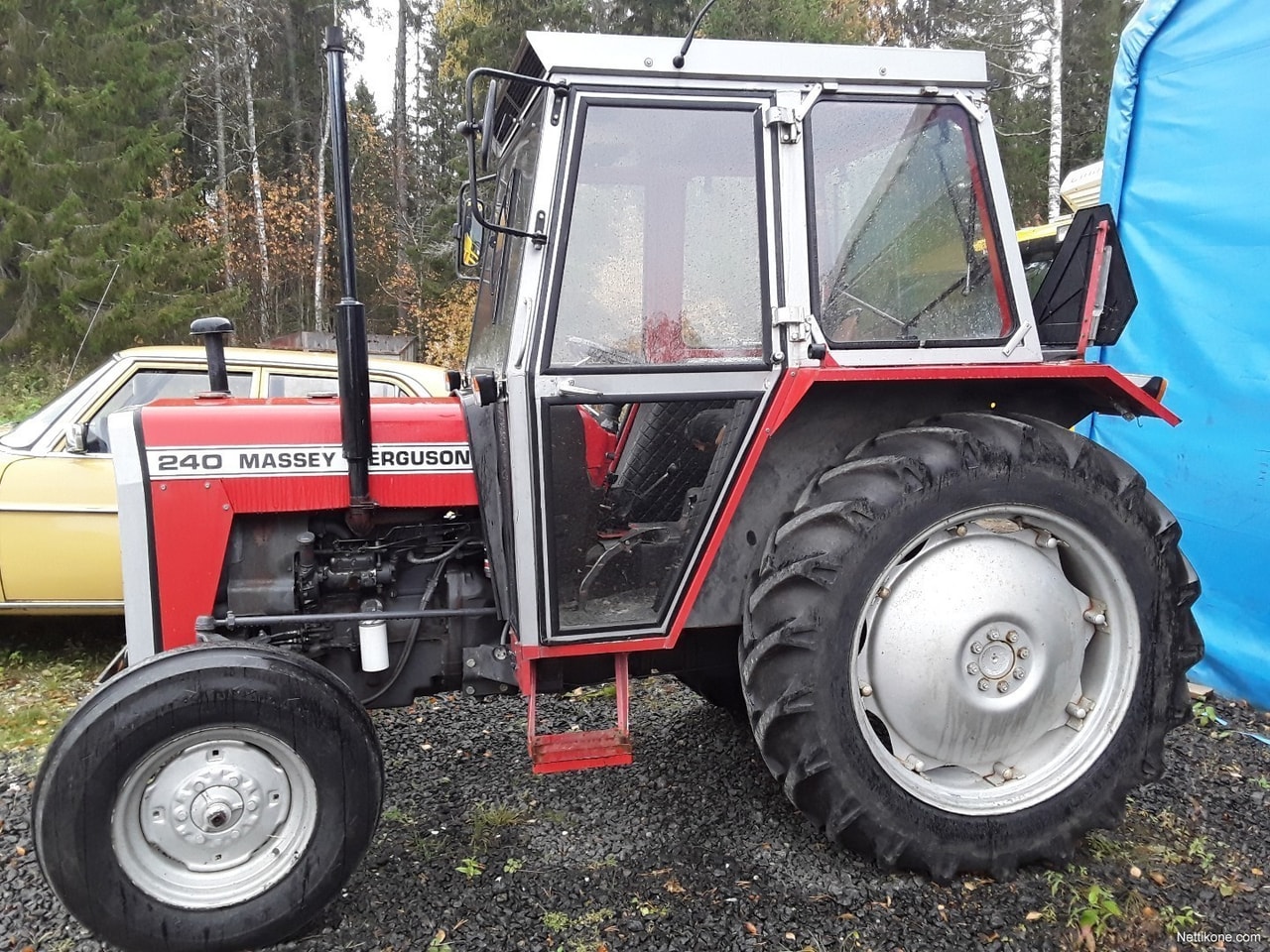

Massey Ferguson 240 Xtra

Last Updated: June 2024

Overview

The Massey Ferguson 240 Xtra is a utility tractor known for its reliability and versatility. It features a straightforward 4x2 2WD chassis and is powered by a robust Simpson S325 diesel engine, which is liquid-cooled and naturally aspirated. The engine delivers 47 horsepower and provides strong performance, with a displacement of 152 cubic inches. Hydrostatic power steering facilitates easy maneuverability. This model was designed with practicality in mind, utilizing an 8-forward and 2-reverse gear shift transmission system and a rear, live type PTO running at 540 rpm. The three-point hitch at the rear has a Category II rating with a lifting capacity of up to 3,196 pounds. The open operator station ensures that the user remains in touch with the working environment. The overall length of the tractor is 122.8 inches, with a height of 85.4 inches. It has an operational weight of 3,814 pounds, signaling a strong and durable build for various agricultural tasks.
Show more...

Key Specifications

Category: Utility

Power Output: 47

Transmission: Gear shift

Drive Type: 2WD

Operating Weight: 3814

Fuel Type: Diesel

Massey Ferguson 240 Xtra vs. Similar Tractors

Power Output
Average
Greater than 45% of similar tractors.
Hitch Capacity
Average
Greater than 57% of similar tractors.
Operating Weight
Average
Greater than 34% of similar tractors.

Technical Specifications

Engine

Manufacturer
Simpson
Model
S325
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Naturally aspirated
Cylinders
3
Displacement (ci)
152
Bore (in)
3.6
Stroke (in)
5
Rated RPM
2250
Power Output (hp)
47

Transmission

Type
Gear shift
Forward Gears
8
Reverse Gears
2
Total Gears
-

Dimensions

Length (in)
122.8
Width (in)
-
Height (in)
85.4
Operating Weight (lb)
3814

Power Take-Off (PTO)

PTO Type
Rear, live type
PTO Speed 1 (rpm)
540
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
Hydrostatic power steering
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
-
Hitch Type
Three-Point Hitch
Hitch Category
Category II
Hitch Position
Rear
Hitch Capacity (lb)
3196
Operator Station Type
Open
Starter Type
Electric starter
Brake Type
-
Hydraulic System Type
-
