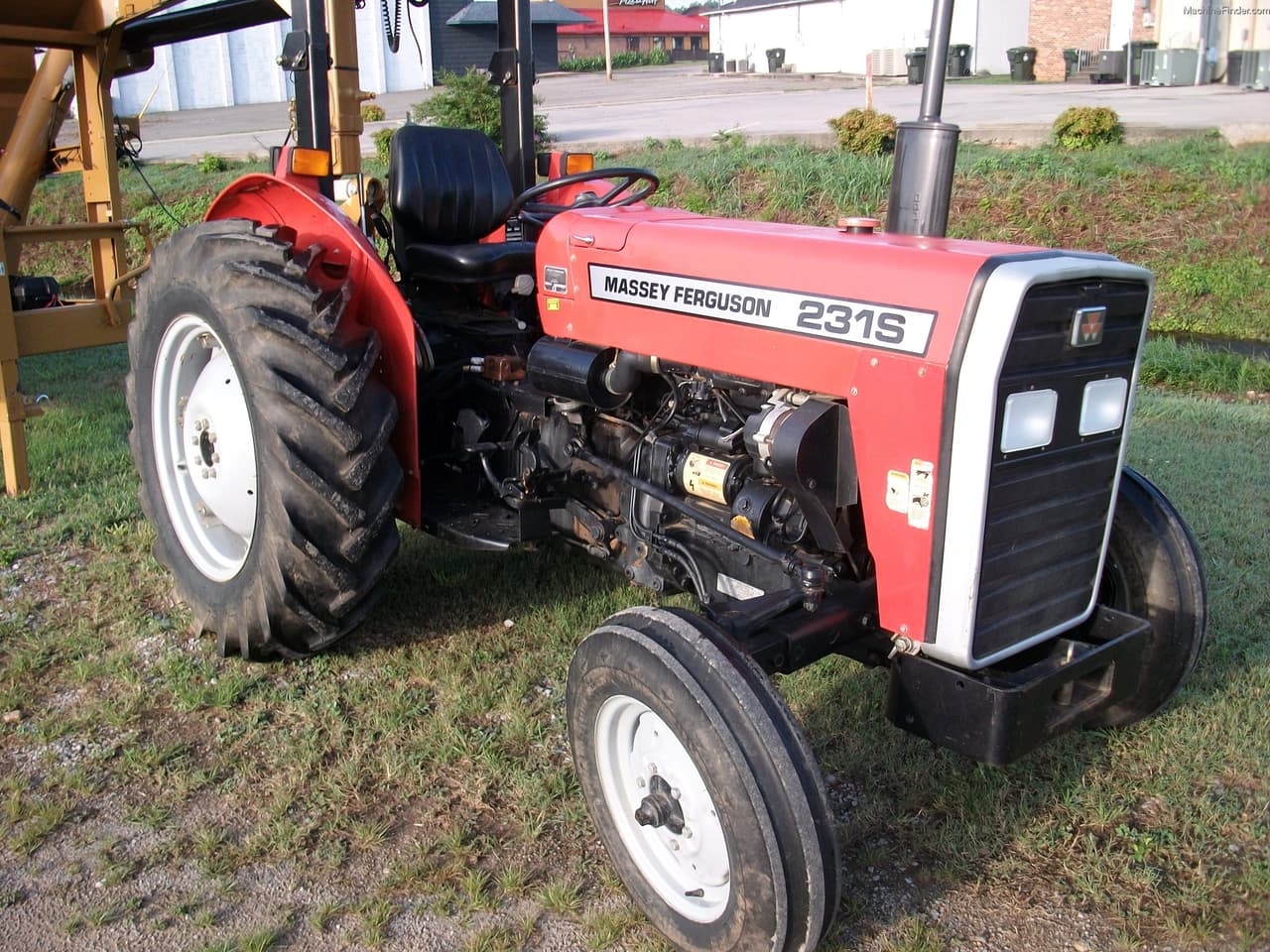

Massey Ferguson 231S

Last Updated: June 2024

Overview

The Massey Ferguson 231S is a utility tractor that was part of the 200 One series, produced in Istanbul, Turkey, from 1999 to 2003. Powered by a Perkins 903.27 engine, this model features a three-cylinder, naturally aspirated diesel engine with a 165 cubic inch displacement. With a power output of 45 HP at 2250 RPM, the tractor also has liquid-type cooling system and a 12-volt electric starter. The 231S has an 8-speed sliding gear transmission, with power assist steering and a three-point hitch of category II/I. It is designed as a 2WD (4x2) chassis and is capable of carrying an operating weight of 4120 lbs. This tractor was designed with the possibility to be fitted with a Massey Ferguson 232 loader, adding to its utility and versatility.
Show more...

Key Specifications

Category: Utility

Power Output: 45

Transmission: Sliding Gear

Drive Type: 2WD

Operating Weight: 4120

Fuel Type: Diesel

Image Gallery

Massey Ferguson 231S Tractor Massey Ferguson 231S Tractor Massey Ferguson 231S Tractor Massey Ferguson 231S Tractor Massey Ferguson 231S Tractor Massey Ferguson 231S Tractor

Massey Ferguson 231S vs. Similar Tractors

Power Output
Average
Greater than 43% of similar tractors.
Operating Weight
Average
Greater than 37% of similar tractors.

Technical Specifications

Engine

Manufacturer
Perkins
Model
903.27
Cooling Type
Liquid
Cylinder Orientation
Inline
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Naturally Aspirated
Cylinders
3
Displacement (ci)
165
Bore (in)
3.74
Stroke (in)
5
Rated RPM
2250
Power Output (hp)
45

Transmission

Type
Sliding Gear
Forward Gears
8
Reverse Gears
2
Total Gears
-

Dimensions

Length (in)
-
Width (in)
-
Height (in)
-
Operating Weight (lb)
4120

Power Take-Off (PTO)

PTO Type
Live with two stage clutch
PTO Speed 1 (rpm)
540
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
Power
Coolant Capacity (qts)
11.2
Front Tire Diameter (in)
16
Front Tire Width (in)
-
Rear Tire Diameter (in)
28
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag
Manufacture - End Year
2003
Hitch Type
Three-Point Hitch
Hitch Category
II/I
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
Two-post folding ROPS and Canopy (optional)
Starter Type
Electric
Brake Type
-
Hydraulic System Type
-
