Massey Ferguson 2235

Last Updated: June 2024

Overview

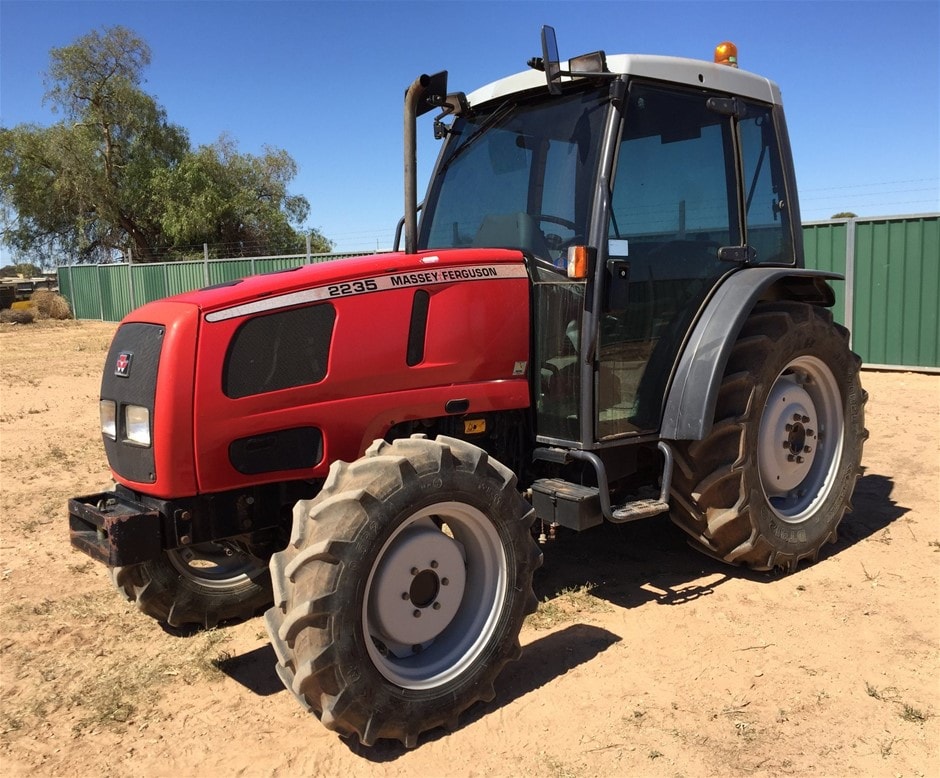

The Massey Ferguson 2235 is classified as a compact utility tractor. It features a powerful 80 hp Perkins diesel engine, with a displacement of 258.3 cubic inches and a direct injection fuel system. This model was produced between the years 2002 and 2004, and it offers a liquid-cooled engine design that reaches its maximum power output at 2200 RPM. The tractor is based on a 4x2 2WD chassis design, with power steering for easier handling. It comes equipped with a combination of transmission types, including a 15-speed sync shuttle and a two-speed power shift known as Speedshift, providing 30 forward and reverse gears. The tractor has an operating weight ranging from 6614 pounds in its 2WD form to 6834 pounds when equipped with 4WD. The generous dimensions and weight of this model suggest a robust and versatile machine for a range of agricultural tasks.
Show more...

Key Specifications

Category: Utility

Power Output: 80

Transmission: Sync Shuttle / Speedshift / Two-Speed Power Shift

Operating Weight: 6614 (2WD) / 6834 (4WD)

Fuel Type: Diesel

Massey Ferguson 2235 vs. Similar Tractors

Power Output
Above Average
Greater than 71% of similar tractors.
Operating Weight
Excellent
Greater than 98% of similar tractors.

Technical Specifications

Engine

Manufacturer
Perkins
Model
1004-42
Cooling Type
Liquid-Cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Direct Injection
Cylinders
4
Displacement (ci)
258.3
Bore (in)
4.055
Stroke (in)
5
Rated RPM
2200
Power Output (hp)
80

Transmission

Type
Sync Shuttle / Speedshift / Two-Speed Power Shift
Forward Gears
15 (under Sync Shuttle) / 30 (under Speedshift Two-Speed Power Shift)
Reverse Gears
15 (under Sync Shuttle) / 30 (under Speedshift Two-Speed Power Shift)
Total Gears
-

Dimensions

Length (in)
158.3
Width (in)
77.9
Height (in)
Unknown (95.7 inches with cab)
Operating Weight (lb)
6614 (2WD) / 6834 (4WD)

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
-
Steering Type
Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
Unknown (specifies 300/70R20 which is a metric measurement)
Front Tire Width (in)
-
Rear Tire Diameter (in)
Unknown (specifies 480/70R24 which is a metric measurement)
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Lawn/Turf
Manufacture - End Year
2004
Hitch Type
Unknown (specifies Rear Type: II, which implies a three-point type but is not explicit)
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
Unknown (specifies Height with cab, which implies there is a cab option)
Starter Type
12-Volt Electric Starter
Brake Type
-
Hydraulic System Type
-
