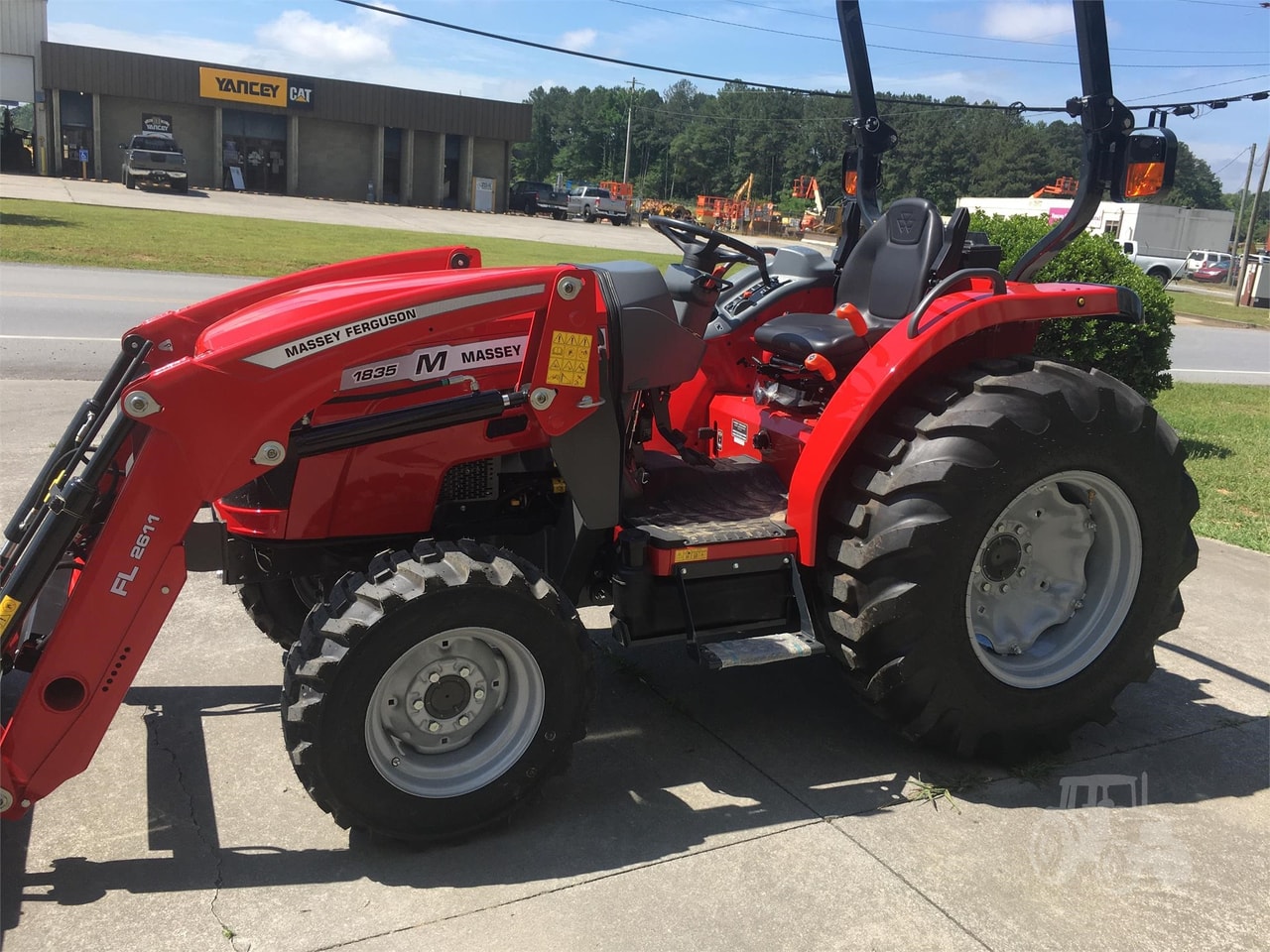

Massey Ferguson 1835M

Last Updated: June 2024

Overview

The Massey Ferguson 1835M is a versatile and powerful utility tractor, designed to meet the needs of small-scale farming, landscaping, and other maintenance duties. Equipped with a robust Iseki E3FH engine, the 1835M features a 3-cylinder, turbocharged diesel engine rated at 36.2 horsepower and a displacement of 111.4 cubic inches. It adheres to Tier IV emissions standards, ensuring environmentally friendly operation. To suit various jobs, the tractor comes with a dual transmission type: a 12-gear power shuttle system for precise control and an optional hydrostatic system with infinite ranges. It offers peak performance at 2600 RPM, and the engine's reliability is further established with common rail direct injection and a dry air cleaner system. This model comes with multiple tire options to cater to different grounds, including agricultural, lawn/turf, and industrial setups. The tractor is offered with both ROPS and cab configurations, balancing safety and comfort. It started production in 2020, and the manufactured end year remains unknown, implying current production continuity. The tractor also includes an open-center hydraulic system for efficient power management.
Show more...

Key Specifications

Category: Utility

Power Output: 36.2

Transmission: Power shuttle / Hydrostatic (dual type listed)

Operating Weight: 3472 (ROPS) / 3858 (Cab)

Fuel Type: Diesel

Massey Ferguson 1835M vs. Similar Tractors

Power Output
Average
Greater than 33% of similar tractors.
Operating Weight
Above Average
Greater than 85% of similar tractors.

Technical Specifications

Engine

Manufacturer
Iseki
Model
E3FH
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged
Cylinders
3
Displacement (ci)
111.4
Bore (in)
3.43
Stroke (in)
4.03
Rated RPM
2600
Power Output (hp)
36.2

Transmission

Type
Power shuttle / Hydrostatic (dual type listed)
Forward Gears
12
Reverse Gears
12
Total Gears
-

Dimensions

Length (in)
122
Width (in)
67.5
Height (in)
99.2 (ROPS) / 91.3 (Cab)
Operating Weight (lb)
3472 (ROPS) / 3858 (Cab)

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
-
Drive Type
-
Steering Type
Power (assumed from "Steering flow: 7 gpm")
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag: 8-16 (Front) / 13.6-24 (Rear), Turf: 27x8.50-15 (Front) / 41x14.00-20 (Rear), Industrial: 10-16.5 (Front) / 14.9-24 (Rear)
Manufacture - End Year
-
Hitch Type
Three-Point Hitch (assumed from "Rear Type: I")
Hitch Category
Category 3 (assumed from "Rear Type: I")
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
ROPS / Cab
Starter Type
Electric
Brake Type
-
Hydraulic System Type
Open Center
