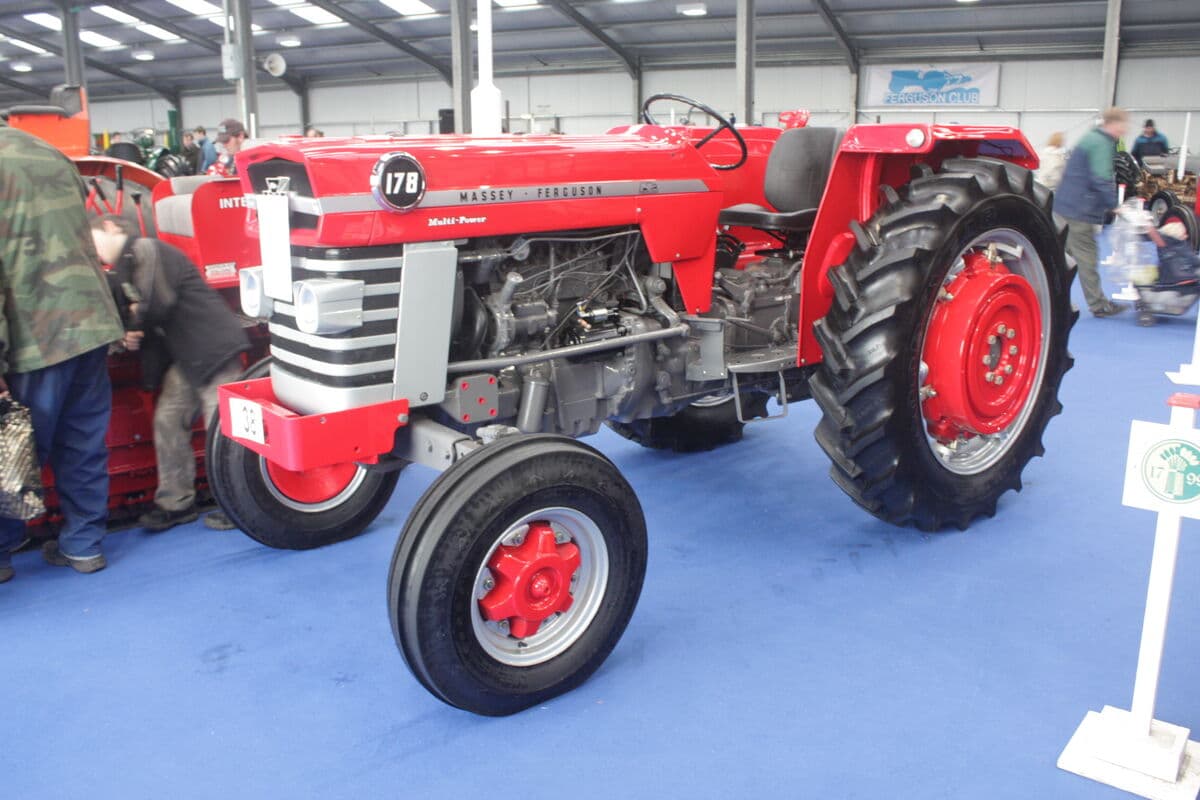

Massey Ferguson 178

Last Updated: June 2024

Overview

The Massey Ferguson 178 is a utility tractor well-suited for a variety of tasks on the farm. It was manufactured with a rugged chassis, conducive to consistent performance across diverse agricultural tasks. The tractor is equipped with a 4x2 2WD chassis, power-assisted steering for easier maneuverability, and a partial powershift transmission, which allows the operator to shift gears more efficiently while the tractor is in motion. This model has a combination of 12 forward and 4 reverse gears to adapt to various conditions. The iconic Perkins A4.248 diesel engine ensures reliability, with a liquid-cooled 4-cylinder design providing a displacement of 247.8 cubic inches, producing 73 horsepower at a rated RPM of 2000. The tractor's practical design extends to its dimensions, with a length of 136 inches, width of 72 inches, and a height at the steering wheel of 67 inches, coupled with an operating weight of 6,878 pounds making it substantial yet maneuverable. Notably, it sports agricultural tires standard with the make.
Show more...

Key Specifications

Category: Utility

Power Output: 73

Transmission: Partial Powershift and Unsynchronized

Drive Type: 2WD

Operating Weight: 6878

Fuel Type: Diesel

Massey Ferguson 178 vs. Similar Tractors

Power Output
Average
Greater than 66% of similar tractors.
Operating Weight
Average
Greater than 52% of similar tractors.

Technical Specifications

Engine

Manufacturer
Perkins
Model
A4.248
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
-
Cylinders
4
Displacement (ci)
247.8
Bore (in)
3.975
Stroke (in)
5
Rated RPM
2000
Power Output (hp)
73

Transmission

Type
Partial Powershift and Unsynchronized
Forward Gears
12
Reverse Gears
4
Total Gears
-

Dimensions

Length (in)
136
Width (in)
72
Height (in)
67
Operating Weight (lb)
6878

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
Power assist
Coolant Capacity (qts)
28.8
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag
Manufacture - End Year
-
Hitch Type
Category II
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric
Brake Type
-
Hydraulic System Type
-
