Massey Ferguson 175

Last Updated: June 2024

Overview

The Massey Ferguson 175 is a traditional utility tractor, renowned for its reliability and versatility, designed by Massey Ferguson primarily for various agricultural tasks. This model was produced between 1964 and 1975, and it is recognized for its three options in partial power shift transmissions. The 175 is powered by a choice of Perkins or Continental gasoline or diesel four-cylinder engines that provide approximately 63 horsepower at a rated RPM of 2000. Known for its robust construction, it features a liquid cooling system, dry air cleaner, and traditional power assist steering for better maneuverability. With a solid chassis, the 2WD tractor is an economical choice for diverse farming needs.
Show more...

Key Specifications

Category: Utility

Power Output: 63

Transmission: Partial power shift

Drive Type: 2WD

Operating Weight: 5925, 6125

Fuel Type: Diesel, Gasoline

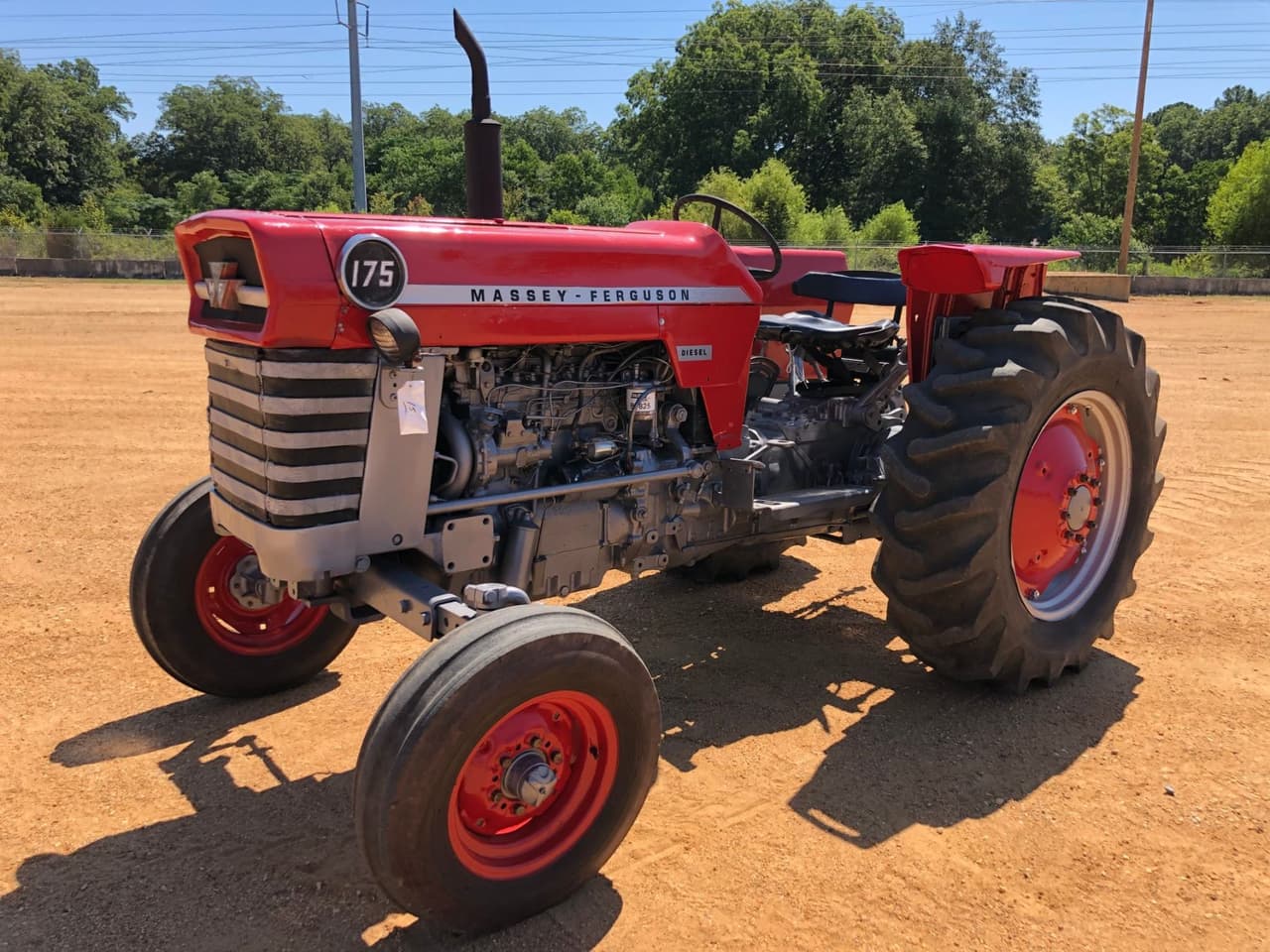

Image Gallery

Massey Ferguson 175 Tractor Massey Ferguson 175 Tractor Massey Ferguson 175 Tractor Massey Ferguson 175 Tractor Massey Ferguson 175 Tractor Massey Ferguson 175 Tractor Massey Ferguson 175 Tractor Massey Ferguson 175 Tractor

Massey Ferguson 175 vs. Similar Tractors

Power Output
Average
Greater than 59% of similar tractors.
Hitch Capacity
Average
Greater than 62% of similar tractors.
Operating Weight
Average
Greater than 47% of similar tractors.

Technical Specifications

Engine

Manufacturer
Perkins, Continental
Model
Perkins A4.236, Perkins AG4.236, Continental G206
Cooling Type
Liquid-cooled
Cylinder Orientation
Inline
Valve Configuration
-
Fuel Type
Diesel, Gasoline
Induction Type
Naturally aspirated
Cylinders
4
Displacement (ci)
236.0, 206.0
Bore (in)
3.86
Stroke (in)
5
Rated RPM
2000
Power Output (hp)
63

Transmission

Type
Partial power shift
Forward Gears
12
Reverse Gears
4
Total Gears
-

Dimensions

Length (in)
138
Width (in)
72.8
Height (in)
65
Operating Weight (lb)
5925, 6125

Power Take-Off (PTO)

PTO Type
Live or independent
PTO Speed 1 (rpm)
540
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
Power assist
Coolant Capacity (qts)
13.4
Front Tire Diameter (in)
16
Front Tire Width (in)
6.5
Rear Tire Diameter (in)
28
Rear Tire Width (in)
16.9
Front/Rear Rim Diameter (in)
-
Tire Type
Ag
Manufacture - End Year
1975
Hitch Type
Three-Point Hitch
Hitch Category
II
Hitch Position
Rear
Hitch Capacity (lb)
3375
Operator Station Type
Open operator station
Starter Type
Electric
Brake Type
Mechanical disc
Hydraulic System Type
Open center
