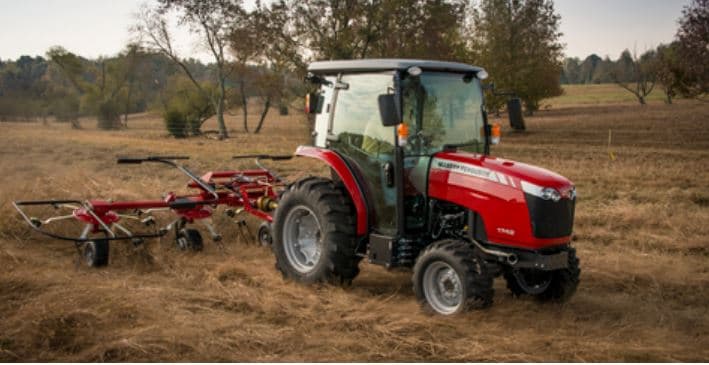

Massey Ferguson 1749

Last Updated: June 2024

Overview

The Massey Ferguson 1749 is a compact utility tractor designed for a variety of tasks in landscaping, small-scale farming, and other property maintenance roles. Featuring a reliable Mitsubishi K38 turbocharged intercooled diesel 3-cylinder liquid-cooled engine, it offers a power output of 48.3 hp with a displacement of 101 ci (cubic inches). The tractor is equipped with a 4x4 MFWD 4WD chassis, providing enhanced traction and capability on diverse terrains. Its operator-friendly features include power steering and a choice of a 12-speed power shuttle or hydrostatic transmission system, which complement the convenience of the open-center gear pump hydraulic system. The 12 forward and reverse gears give the operator various speed options to tackle different tasks with efficiency. The tractor's braking is managed by internal wet disc brakes, and it comes standard with a three-point hitch with a lift capacity of over 2500 lbs. The offered configurations include options for tires suitable for agricultural, turf, or industrial applications, ensuring adaptability to various work environments. Weighing between 3913 to 4354 pounds depending on whether it's equipped with ROPS or a cab, the Massey Ferguson 1749 features a wheelbase of 76 inches, which contributes to its stability. The tractor's dimensions, which include a length of 132.3 inches, a width of 65.4 inches, and a height of 92.9 inches, make it suitable for operations in tight spaces where larger tractors wouldn't fit. Produced from 2013 to 2018, the 1700 series to which this model belongs is known for its robustness and longevity, further enhanced by its Tier IV compliant emission system utilizing a diesel oxidation catalyst and a diesel particulate filter.
Show more...

Key Specifications

Category: Utility

Power Output: 48.3

Transmission: Power shuttle, Hydrostatic

Drive Type: 4WD

Operating Weight: 3913 to 4354

Fuel Type: Diesel

Massey Ferguson 1749 vs. Similar Tractors

Power Output
Average
Greater than 46% of similar tractors.
Hitch Capacity
Average
Greater than 42% of similar tractors.
Operating Weight
Above Average
Greater than 86% of similar tractors.

Technical Specifications

Engine

Manufacturer
Mitsubishi
Model
K38
Cooling Type
Liquid-cooled
Cylinder Orientation
Inline
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged Intercooled
Cylinders
3
Displacement (ci)
101
Bore (in)
3.386
Stroke (in)
3.74
Rated RPM
2500
Power Output (hp)
48.3

Transmission

Type
Power shuttle, Hydrostatic
Forward Gears
12
Reverse Gears
12
Total Gears
24

Dimensions

Length (in)
132.3
Width (in)
65.4
Height (in)
92.9
Operating Weight (lb)
3913 to 4354

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
16 (Standard ag), 15 (Turf), 16.5 and unknown (Industrial)
Front Tire Width (in)
9.5 (Standard ag), 10.50 (Turf), Unknown (Industrial)
Rear Tire Diameter (in)
28 (Standard ag), 20 (Turf), 24 (Industrial)
Rear Tire Width (in)
13.6 (Standard ag), 18.00 (Turf), Unknown (Industrial)
Front/Rear Rim Diameter (in)
-
Tire Type
Ag, Turf, Industrial
Manufacture - End Year
2018
Hitch Type
Three-Point Hitch
Hitch Category
Category 1
Hitch Position
Rear
Hitch Capacity (lb)
2535.4 lbs
Operator Station Type
ROPS or Cab
Starter Type
Electric
Brake Type
Internal wet disc brakes
Hydraulic System Type
Open center gear pump
