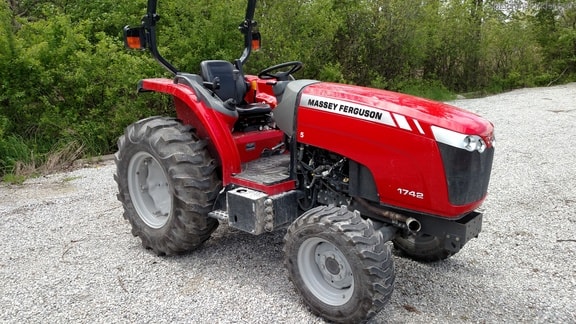

Massey Ferguson 1742

Last Updated: June 2024

Overview

The Massey Ferguson 1742 is a compact utility tractor that offers versatility and power in a relatively small package. It is designed with a 4-wheel drive chassis and power steering for easy maneuverability. The tractor is equipped with a three-cylinder 1.7 L Mitsubishi K38 engine that delivers 41.6 horsepower with a turbocharged and intercooled induction system. The 1742 model is available with two types of transmissions: a 12-speed power shuttle and an infinite (3-range) hydrostatic transmission, allowing the operator to select the best option for their particular needs. Its lift capacity at the three-point hitch is 2535 lbs, ensuring compatibility with a wide range of attachments. It started production in 2013 and continued through 2018, with the option of having a foldable ROPS or a Cab for operator comfort.
Show more...

Key Specifications

Category: Utility

Power Output: 41.6

Transmission: Power shuttle

Drive Type: 4WD

Operating Weight: ROPS: 3638, Cab: 4068

Fuel Type: Diesel

Image Gallery

Massey Ferguson 1742 Tractor Massey Ferguson 1742 Tractor Massey Ferguson 1742 Tractor Massey Ferguson 1742 Tractor Massey Ferguson 1742 Tractor Massey Ferguson 1742 Tractor Massey Ferguson 1742 Tractor Massey Ferguson 1742 Tractor

Massey Ferguson 1742 vs. Similar Tractors

Power Output
Average
Greater than 39% of similar tractors.
Hitch Capacity
Average
Greater than 42% of similar tractors.
Operating Weight
Average
Greater than 32% of similar tractors.

Technical Specifications

Engine

Manufacturer
Mitsubishi
Model
K38
Cooling Type
Liquid-cooled
Cylinder Orientation
Inline
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged intercooled
Cylinders
3
Displacement (ci)
101
Bore (in)
3.39
Stroke (in)
3.74
Rated RPM
2500
Power Output (hp)
41.6

Transmission

Type
Power shuttle
Forward Gears
12
Reverse Gears
12
Total Gears
-

Dimensions

Length (in)
130.7
Width (in)
64.2
Height (in)
91.3
Operating Weight (lb)
ROPS: 3638, Cab: 4068

Power Take-Off (PTO)

PTO Type
Rear: Independent with electro-hydraulic clutch, Middle: Optional
PTO Speed 1 (rpm)
540
PTO Speed 2 (rpm)
2000
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
Ag: Unknown, Lawn/turf: 27, Industrial: Unknown
Front Tire Width (in)
Ag: Unknown, Lawn/turf: 8.50, Industrial: Unknown
Rear Tire Diameter (in)
Ag: Unknown, Lawn/turf: 41, Industrial: Unknown
Rear Tire Width (in)
Ag: Unknown, Lawn/turf: 14.00, Industrial: Unknown
Front/Rear Rim Diameter (in)
-
Tire Type
Ag, Lawn/turf, Industrial
Manufacture - End Year
2018
Hitch Type
Three-Point Hitch
Hitch Category
I
Hitch Position
Rear
Hitch Capacity (lb)
2535 lbs
Operator Station Type
Two-post folding ROPS or Cab (optional)
Starter Type
Electric
Brake Type
Wet disc
Hydraulic System Type
Open center gear pump
