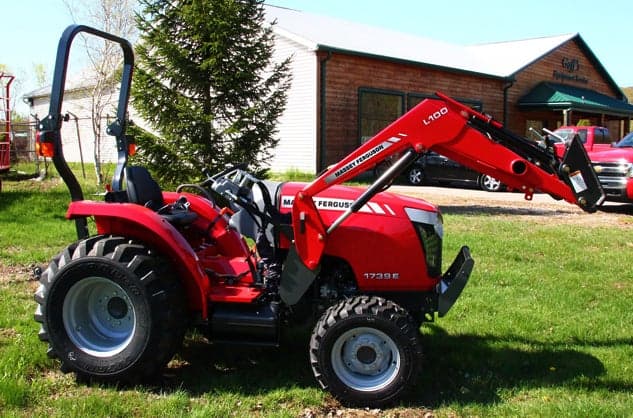

Massey Ferguson 1739E

Last Updated: June 2024

Overview

The Massey Ferguson 1739E is a robust compact utility tractor designed for various agricultural tasks. Produced by the well-known manufacturer Massey Ferguson, a part of AGCO, since 2013, this model comes equipped with a reliable Shibaura N843T-F three-cylinder turbocharged diesel engine. The tractor provides two transmission options—a 9-speed gear transmission or a hydrostatic one with infinite (3-range) forward and reverse gears, adapting to different working conditions. The 1739E boasts a 4WD configuration for enhanced traction along with hydrostatic power steering and wet disc brakes which ensure operational control and safety. Additional features include a two-post foldable ROPS that protects the operator and a convenient hydraulic system with an open-center gear pump that facilitates effective power delivery for attachments. The tractor is Tier IV emissions rated, using an advanced engine emission control technology including internal exhaust-gas recirculation (iEGR), diesel oxidation catalyst (DOC), and a regenerating diesel particulate filter (DPF).
Show more...

Key Specifications

Category: Utility

Power Output: 39.5

Transmission: Gear or Hydrostatic

Drive Type: MFWD 4WD

Operating Weight: 2756 (Gear), 2767 (Hydro)

Fuel Type: Diesel

Massey Ferguson 1739E vs. Similar Tractors

Power Output
Average
Greater than 36% of similar tractors.
Hitch Capacity
Average
Greater than 38% of similar tractors.
Operating Weight
Below Average
Greater than 22% of similar tractors.

Technical Specifications

Engine

Manufacturer
Shibaura
Model
N843T-F
Cooling Type
Liquid-cooled
Cylinder Orientation
Inline
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged
Cylinders
3
Displacement (ci)
91.3
Bore (in)
3.31
Stroke (in)
3.54
Rated RPM
2600
Power Output (hp)
39.5

Transmission

Type
Gear or Hydrostatic
Forward Gears
9 (Gear), Infinite (3-range) (Hydrostatic)
Reverse Gears
3 (Gear), Infinite (3-range) (Hydrostatic)
Total Gears
-

Dimensions

Length (in)
116.1
Width (in)
52.4
Height (in)
97.2
Operating Weight (lb)
2756 (Gear), 2767 (Hydro)

Power Take-Off (PTO)

PTO Type
Live
PTO Speed 1 (rpm)
540
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
MFWD 4WD
Steering Type
Hydrostatic power
Coolant Capacity (qts)
5.3
Front Tire Diameter (in)
27 (Lawn/turf and Industrial)
Front Tire Width (in)
8.50 (Lawn/turf and Industrial)
Rear Tire Diameter (in)
38 (Lawn/turf), 19.5 (Industrial)
Rear Tire Width (in)
14.00 (Lawn/turf), Unknown (Industrial)
Front/Rear Rim Diameter (in)
-
Tire Type
Lawn/turf and Industrial
Manufacture - End Year
-
Hitch Type
Three-point hitch
Hitch Category
Category I
Hitch Position
Rear
Hitch Capacity (lb)
2205
Operator Station Type
Two-post foldable ROPS
Starter Type
Electric
Brake Type
Wet disc
Hydraulic System Type
Open center gear pump
