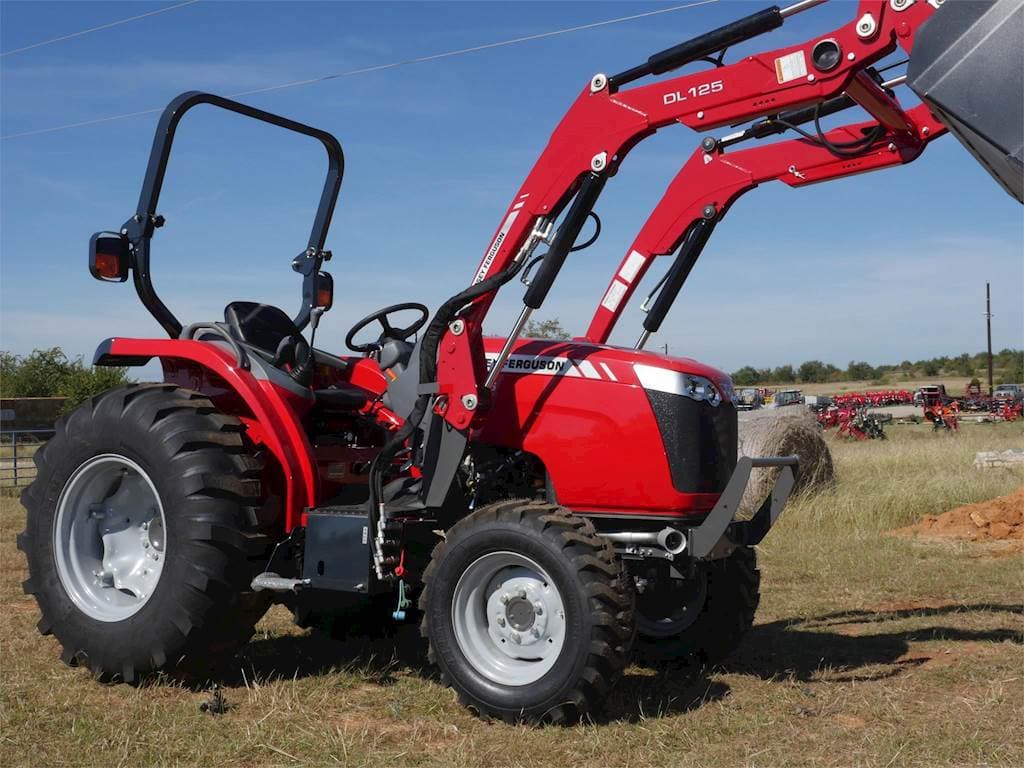

Massey Ferguson 1736

Last Updated: June 2024

Overview

The Massey Ferguson 1736 is a robust compact utility tractor designed to handle a variety of tasks for small-scale farming, landscaping, and maintenance duties. Produced between 2013 and 2018, this tractor gained popularity for its versatility and reliability, providing a solid foundation for both residential and commercial use. Powering the MF 1736 is a Mitsubishi K38 three-cylinder turbocharged diesel engine with a displacement of 101 cubic inches, which outputs 36.2 horsepower at 2500 RPM. Its advanced fuel system and emission control technologies ensure the tractor complies with Tier IV regulations. It is equipped with two transmission options: a 12-speed power shuttle and an infinite (3-range) hydrostatic, allowing for flexible operations in varied task requirements. The tractor's wet disc brakes and power steering system ensure smooth maneuverability and safety during operation. Add to the functionality, this model also comes with power steering, an open center hydraulic system with a flow of 11.6 gpm (gallons per minute), and a three-point hitch with a lift capacity of 2535 pounds at the hitch ends. Buyers had the option of a foldable ROPS or a cab configuration, providing comfort and protection across various working conditions. Its front and rear tire configurations are accommodating for agricultural, lawn, turf, and industrial applications, making it a multi-purpose machine for a multitude of terrains.
Show more...

Key Specifications

Category: Utility

Power Output: 36.2

Transmission: Power shuttle / Hydrostatic

Drive Type: 4WD

Operating Weight: 3362 (ROPS) / 3803 (Cab)

Fuel Type: Diesel

Massey Ferguson 1736 vs. Similar Tractors

Power Output
Average
Greater than 33% of similar tractors.
Hitch Capacity
Average
Greater than 42% of similar tractors.
Operating Weight
Above Average
Greater than 85% of similar tractors.

Technical Specifications

Engine

Manufacturer
Mitsubishi
Model
K38
Cooling Type
Liquid-cooled
Cylinder Orientation
Inline
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged intercooled
Cylinders
3
Displacement (ci)
101
Bore (in)
3.39
Stroke (in)
3.74
Rated RPM
2500
Power Output (hp)
36.2

Transmission

Type
Power shuttle / Hydrostatic
Forward Gears
12 (Power shuttle) / Infinite (3-range) (Hydrostatic)
Reverse Gears
12 (Power shuttle) / Infinite (3-range) (Hydrostatic)
Total Gears
-

Dimensions

Length (in)
121.7
Width (in)
64.2
Height (in)
90.9
Operating Weight (lb)
3362 (ROPS) / 3803 (Cab)

Power Take-Off (PTO)

PTO Type
Optional Mid PTO / Independent Rear PTO
PTO Speed 1 (rpm)
2000 (Mid PTO) / 540 (Rear PTO)
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag, Lawn/turf, Industrial
Manufacture - End Year
2018
Hitch Type
Three-Point Hitch
Hitch Category
Category 1
Hitch Position
Rear
Hitch Capacity (lb)
2535 lbs
Operator Station Type
Two-post foldable ROPS / Cab (optional)
Starter Type
Electric
Brake Type
Wet disc
Hydraulic System Type
Open center gear pump
