Massey Ferguson 1734E

Last Updated: June 2024

Overview

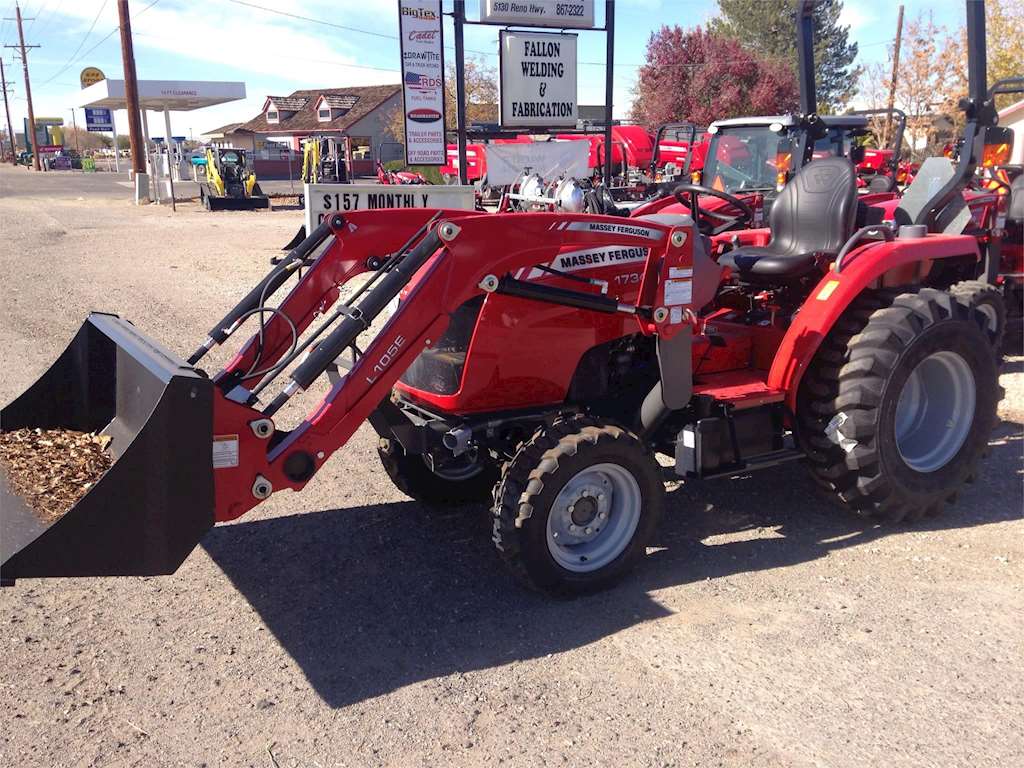

The Massey Ferguson 1734E is a compact utility tractor that is part of AGCO's 1700 series. It was introduced in 2013 and is still a current model as of the latest information. The 1734E features a 34 hp Shibaura N843T-F turbocharged diesel engine with 3 cylinders, and liquid cooling. Weighing between 2734 and 2745 pounds, depending on the transmission, it comes with hydrostatic power steering, wet disc brakes, a 9-speed gear transmission or a hydrostatic transmission, and a Category 1 three-point hitch. Its four-wheel drive chassis (4x4 MFWD 4WD) ensures capability and versatility in various working conditions. It's equipped with a two-post folding ROPS, has a wheelbase of 65.9 inches, and can work with attachments like the Massey Ferguson L100 loader.
Show more...

Key Specifications

Category: Utility

Power Output: 34

Transmission: Gear type with dry disc clutch / Hydrostatic

Drive Type: 4WD

Operating Weight: Gear: 2734 / Hydro: 2745

Fuel Type: Diesel

Image Gallery

Massey Ferguson 1734E Tractor Massey Ferguson 1734E Tractor Massey Ferguson 1734E Tractor Massey Ferguson 1734E Tractor Massey Ferguson 1734E Tractor Massey Ferguson 1734E Tractor

Massey Ferguson 1734E vs. Similar Tractors

Power Output
Below Average
Greater than 30% of similar tractors.
Hitch Capacity
Average
Greater than 38% of similar tractors.
Operating Weight
Above Average
Greater than 83% of similar tractors.

Technical Specifications

Engine

Manufacturer
Shibaura
Model
N843T-F
Cooling Type
Liquid-cooled
Cylinder Orientation
Inline
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged
Cylinders
3
Displacement (ci)
91.3
Bore (in)
3.307
Stroke (in)
3.543
Rated RPM
2600
Power Output (hp)
34

Transmission

Type
Gear type with dry disc clutch / Hydrostatic
Forward Gears
9 forward
Reverse Gears
3 reverse
Total Gears
-

Dimensions

Length (in)
116.5
Width (in)
52.4
Height (in)
97.6
Operating Weight (lb)
Gear: 2734 / Hydro: 2745

Power Take-Off (PTO)

PTO Type
Live
PTO Speed 1 (rpm)
540
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Hydrostatic power
Coolant Capacity (qts)
5.3
Front Tire Diameter (in)
27
Front Tire Width (in)
8.5
Rear Tire Diameter (in)
38
Rear Tire Width (in)
14
Front/Rear Rim Diameter (in)
-
Tire Type
Lawn/turf, Industrial
Manufacture - End Year
-
Hitch Type
Three-Point Hitch
Hitch Category
Category 1
Hitch Position
Rear
Hitch Capacity (lb)
2205
Operator Station Type
Two-post folding ROPS
Starter Type
Electric
Brake Type
Wet disc
Hydraulic System Type
Open center
