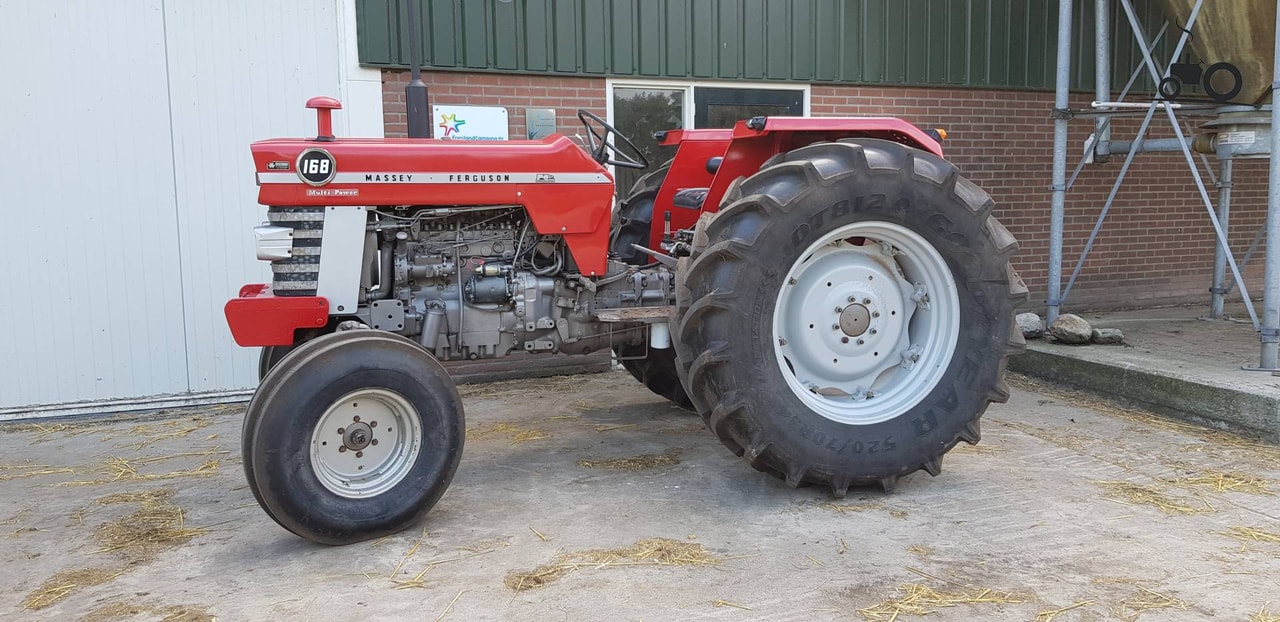

Massey Ferguson 168

Last Updated: June 2024

Overview

The Massey Ferguson 168 is a row-crop tractor that was designed to be a versatile asset for various agricultural tasks. With its 2WD (4x2) chassis, the Massey Ferguson 168 can manage various operations, including plowing, planting, and harvesting. It comes equipped with a powerful Perkins A4.236 diesel engine that offers 69 horsepower, a displacement of 236 cubic inches, and operates at a rated RPM of 2000. The engine's liquid cooling system has a capacity of 14.4 quarts to maintain optimal temperatures during heavy-duty use. The tractor's transmission is a "Multi Power" type with 12 forward and 4 reverse gears, facilitating various speeds and efficient work in diverse field conditions. The operator's experience with the tractor's dimensions, weight, and tire configurations would be expected to contribute to its stability and effectiveness in different agricultural tasks.
Show more...

Key Specifications

Category: Row Crop

Power Output: 69

Transmission: Multi Power

Drive Type: 2WD

Operating Weight: 4866

Fuel Type: Diesel

Massey Ferguson 168 vs. Similar Tractors

Power Output
Poor
Greater than 9% of similar tractors.
Operating Weight
Below Average
Greater than 20% of similar tractors.

Technical Specifications

Engine

Manufacturer
Perkins
Model
A4.236
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
-
Cylinders
4
Displacement (ci)
236
Bore (in)
3.85
Stroke (in)
4.8
Rated RPM
2000
Power Output (hp)
69

Transmission

Type
Multi Power
Forward Gears
12
Reverse Gears
4
Total Gears
-

Dimensions

Length (in)
138
Width (in)
72
Height (in)
66.3
Operating Weight (lb)
4866

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
-
Coolant Capacity (qts)
14.4
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag
Manufacture - End Year
-
Hitch Type
Three-Point Hitch
Hitch Category
II/I
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric, 12 volts
Brake Type
-
Hydraulic System Type
-
