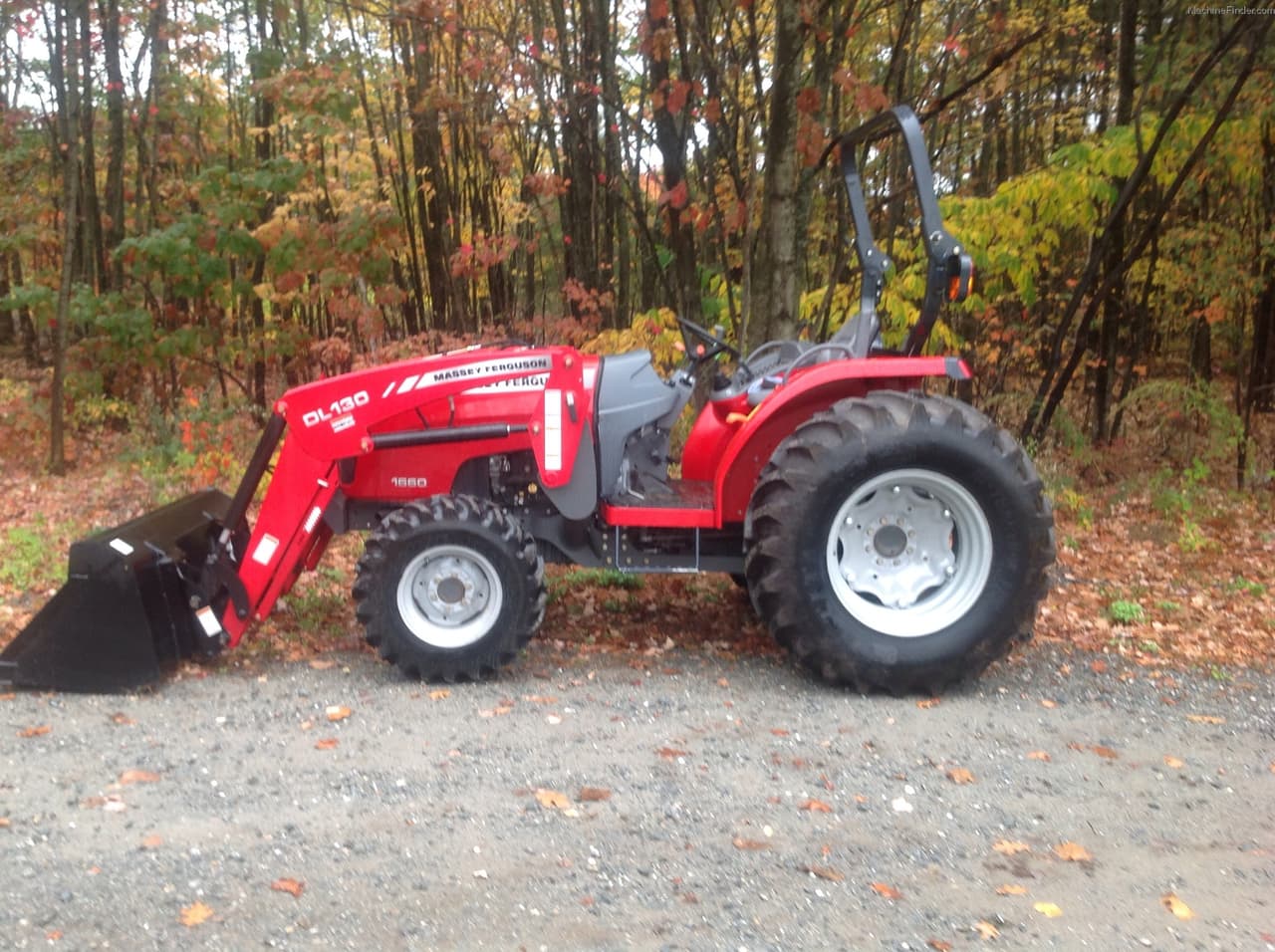

Massey Ferguson 1660

Last Updated: June 2024

Overview

The Massey Ferguson 1660 is a compact utility tractor that was manufactured between 2009 and 2013. It is equipped with a 60hp (44.7 kW) diesel engine provided by Iseki, featuring a liquid cooling system and a rated RPM of 2500. The engine displacement is 180.4 cubic inches, and the cooling system capacity is 8 quarts. This model comes standard with a power steering system and 4-wheel drive, encapsulated within a 4x4 MFWD 4WD chassis design. The Massey Ferguson 1660 offers two types of transmissions, PowerShuttle and DynaQPS, both with 12 forward and 12 reverse gears. The tractor is designed with a Category I three-point hitch and has a maximum capacity of 8378 pounds. It supports multiple tire options catering to agricultural, turf, and industrial needs. Factory standard ag tires measure 9.5x16 for the front and 16.9x26 for the rear. Dimensions for the tractor are a length of 134.6 inches, a width of 70.9 inches, and it varies in height from 91.9 inches with a cab to 104.1 inches with ROPS. Depending on the setup, the operating weight ranges from 4079 pounds with ROPS to 4453 pounds with a cab. This model possesses the versatility and power needed for a variety of tasks in a compact utility tractor.
Show more...

Key Specifications

Category: Utility

Power Output: 60

Transmission: PowerShuttle, DynaQPS

Drive Type: 4WD

Operating Weight: 4079 (with ROPS), 4453 (with cab)

Fuel Type: Diesel

Massey Ferguson 1660 vs. Similar Tractors

Power Output
Average
Greater than 58% of similar tractors.
Hitch Capacity
Above Average
Greater than 84% of similar tractors.
Operating Weight
Average
Greater than 37% of similar tractors.

Technical Specifications

Engine

Manufacturer
Iseki
Model
-
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
-
Cylinders
4
Displacement (ci)
180.4
Bore (in)
-
Stroke (in)
-
Rated RPM
2500
Power Output (hp)
60

Transmission

Type
PowerShuttle, DynaQPS
Forward Gears
12
Reverse Gears
12
Total Gears
-

Dimensions

Length (in)
134.6
Width (in)
70.9
Height (in)
104.1 (with ROPS), 91.9 (with cab)
Operating Weight (lb)
4079 (with ROPS), 4453 (with cab)

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Power
Coolant Capacity (qts)
8
Front Tire Diameter (in)
16 for standard ag tire (assumed from tire spec), Unknown specific diameters for other tire types
Front Tire Width (in)
-
Rear Tire Diameter (in)
26 for standard ag tire (assumed from tire spec), Unknown specific diameters for other tire types
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag, Turf, Industrial
Manufacture - End Year
2013
Hitch Type
Three-Point Hitch
Hitch Category
I
Hitch Position
Rear
Hitch Capacity (lb)
8378 (maximum capacity, may not be actual lift capacity)
Operator Station Type
ROPS, Cab
Starter Type
Electric
Brake Type
-
Hydraulic System Type
Open Center
