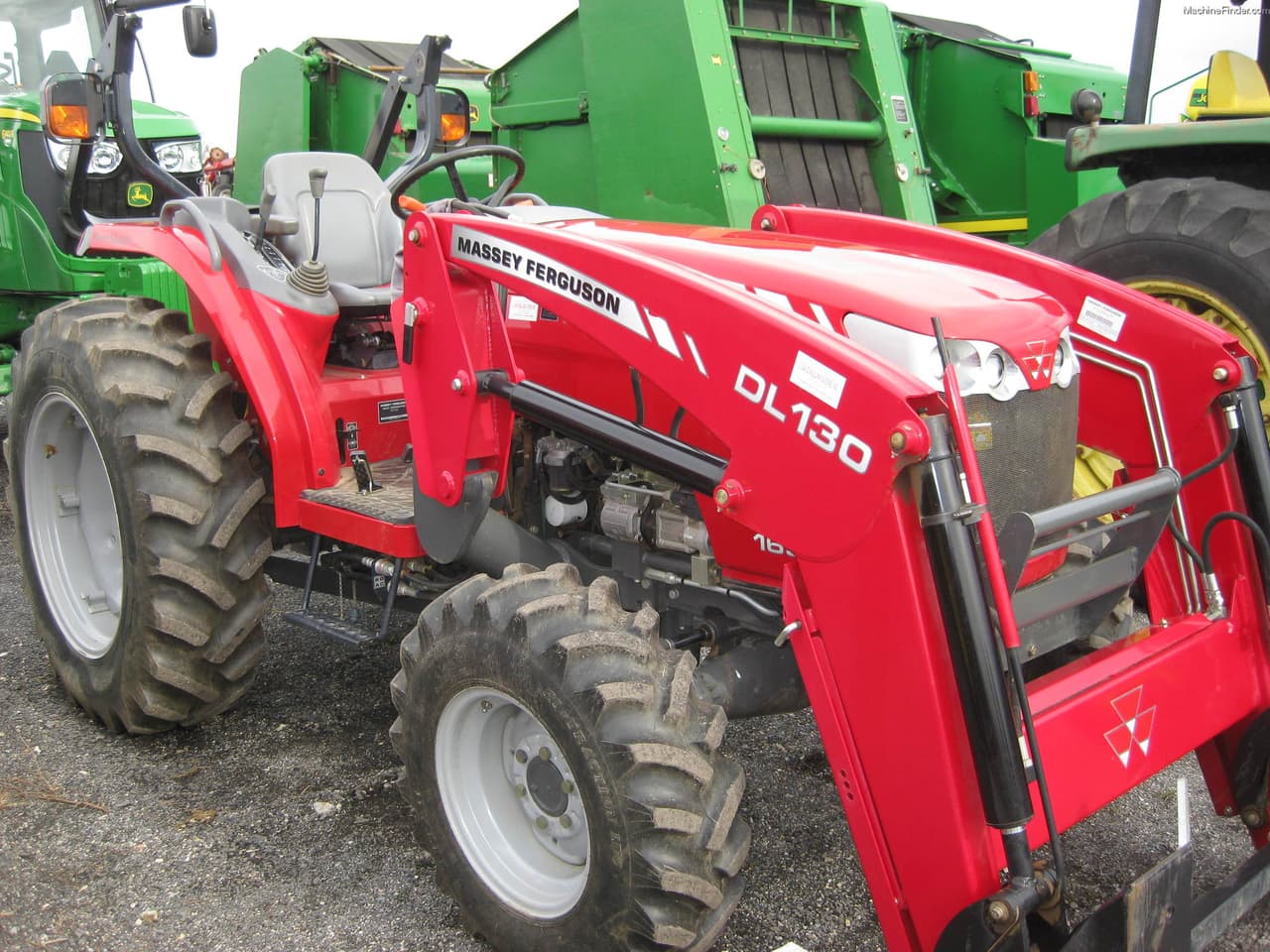

Massey Ferguson 1652

Last Updated: June 2024

Overview

The Massey Ferguson 1652 is a compact utility tractor that was manufactured between 2009 and 2013. It is a versatile machine suited for a variety of tasks around farms and properties. The 1652 model was designed with a 4-wheel drive chassis, which, along with its power steering, provided enhanced maneuverability and control. It features a 4-cylinder Iseki diesel engine with a displacement of 180.4 ci (3.0 L), liquid cooling, dry air cleaner, and rated at 52.2 horsepower at 2500 RPM. This tractor could be equipped with different transmission options, such as PowerShuttle, DynaQPS, and Hydrostatic, indicating a range of functionality for different types of work. The tractor's operating weight varies with the presence of ROPS or a cab, and its physical dimensions are crafted to make it sufficient for a multitude of tasks without occupying too much space. The open center hydraulic system and category I hitch (rear type I) suggest that it is well-equipped for a decent range of implements and attachments.
Show more...

Key Specifications

Category: Utility

Power Output: 52.2

Transmission: PowerShuttle, DynaQPS, Hydrostatic

Drive Type: 4WD

Operating Weight: 3780 (ROPS), 4134 (Cab)

Fuel Type: Diesel

Massey Ferguson 1652 vs. Similar Tractors

Power Output
Average
Greater than 50% of similar tractors.
Operating Weight
Average
Greater than 33% of similar tractors.

Technical Specifications

Engine

Manufacturer
Iseki
Model
-
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Natural Aspiration (assumed since no turbochargers or superchargers are mentioned)
Cylinders
4
Displacement (ci)
180.4
Bore (in)
-
Stroke (in)
-
Rated RPM
2500
Power Output (hp)
52.2

Transmission

Type
PowerShuttle, DynaQPS, Hydrostatic
Forward Gears
-
Reverse Gears
-
Total Gears
12

Dimensions

Length (in)
132.7
Width (in)
67.3
Height (in)
103.1 (ROPS), 90.2 (Cab)
Operating Weight (lb)
3780 (ROPS), 4134 (Cab)

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Power
Coolant Capacity (qts)
8
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag, Lawn/Turf, Industrial (Different options provided)
Manufacture - End Year
2013
Hitch Type
Category I (assumed from "Rear Type: I")
Hitch Category
Category 3
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric
Brake Type
-
Hydraulic System Type
Open Center
