Overview

The Massey Ferguson 165 is a row-crop tractor that was produced from 1964 to 1975. It has a 2WD chassis with power steering and a partial power shift transmission with 12 forward gears and 4 reverse gears. Equipped with a variety of engines, including the Perkins AD4.203, A4.212, AG4.212, and a Continental model, it offered a power output range of approximately 58 to 60 horsepower with a rated RPM of 2000. The tractor could be operated with either diesel or gasoline with different configurations of engine displacement and oil capacity. It was designed with a liquid cooling system and an open operator station. Its standard braking system was mechanical dry disc, and the hydraulic system featured an open center design. The tractor also provided a rear PTO speed of 540 rpm and a hitch lift capacity of approximately 3595 pounds.
Show more...

Key Specifications

Category: Row Crop

Power Output: Multiple - 58.3, 59.9, 60 (Different sources provided different numbers, but are similar)

Transmission: Partial power shift

Drive Type: 2WD

Operating Weight: Multiple - 5005, 5830 (Different configurations)

Fuel Type: Multiple - Diesel and Gasoline

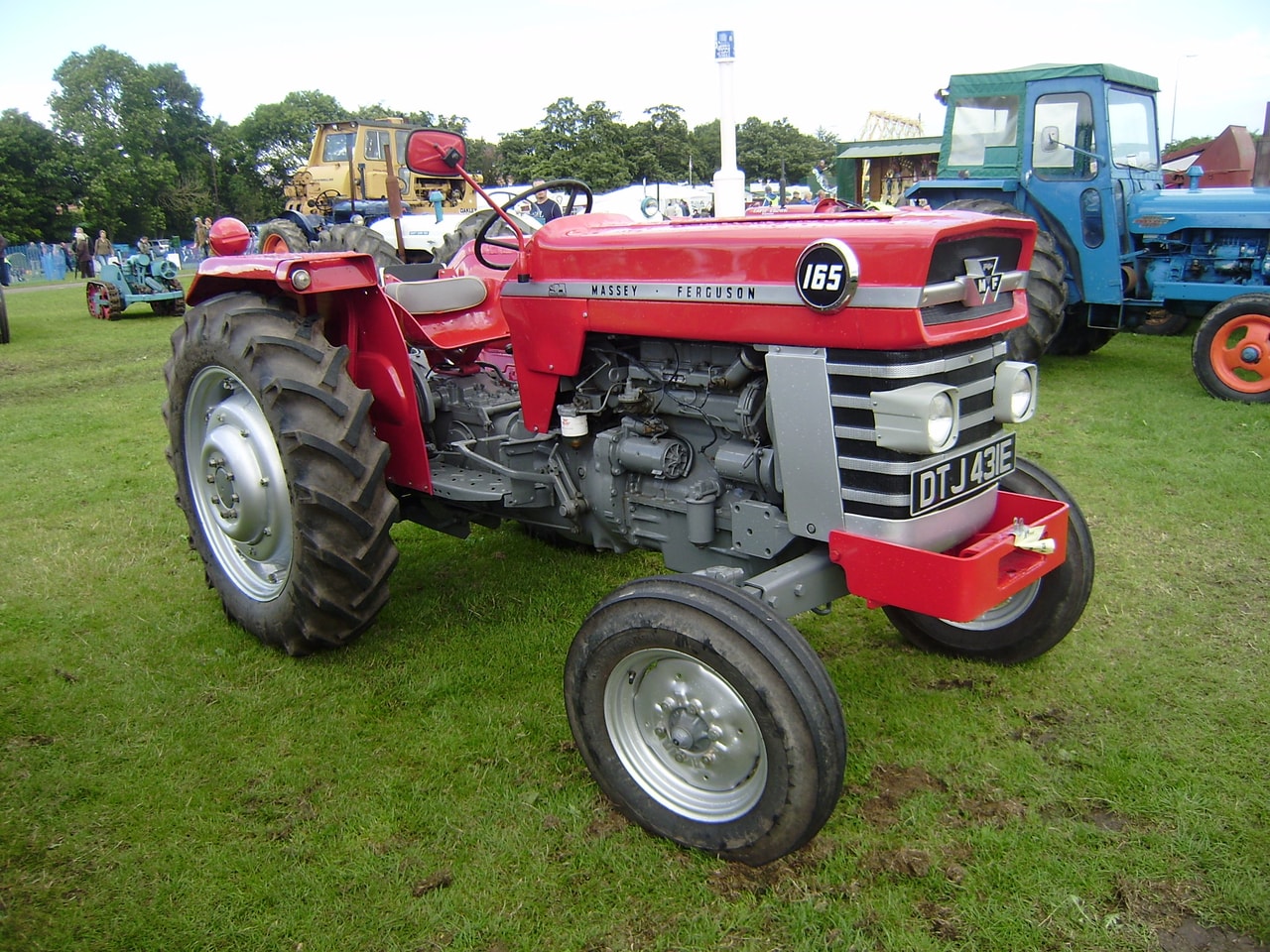

Image Gallery

Massey Ferguson 165 Tractor Massey Ferguson 165 Tractor Massey Ferguson 165 Tractor Massey Ferguson 165 Tractor Massey Ferguson 165 Tractor Massey Ferguson 165 Tractor Massey Ferguson 165 Tractor Massey Ferguson 165 Tractor Massey Ferguson 165 Tractor Massey Ferguson 165 Tractor

Massey Ferguson 165 vs. Similar Tractors

Hitch Capacity
Average
Greater than 34% of similar tractors.
Operating Weight
Below Average
Greater than 21% of similar tractors.

Technical Specifications

Engine

Manufacturer
Multiple - Perkins and Continental (Assumed based on the multiple occurrences of these manufacturers)
Model
Multiple - Perkins AD4.203, Perkins A4.212, Perkins AG4.212, Continental (Specifics Unknown)
Cooling Type
Liquid-cooled
Cylinder Orientation
Inline
Valve Configuration
-
Fuel Type
Multiple - Diesel and Gasoline
Induction Type
-
Cylinders
4
Displacement (ci)
Multiple - 203.5, 176.0, 212.0
Bore (in)
Multiple - 3.58, 3.86
Stroke (in)
Multiple - 5.00, 4.37, 4.50
Rated RPM
2000
Power Output (hp)
Multiple - 58.3, 59.9, 60 (Different sources provided different numbers, but are similar)

Transmission

Type
Partial power shift
Forward Gears
12
Reverse Gears
4
Total Gears
-

Dimensions

Length (in)
124.4
Width (in)
72 (Assumed based on the width given in cm)
Height (in)
68.5
Operating Weight (lb)
Multiple - 5005, 5830 (Different configurations)

Power Take-Off (PTO)

PTO Type
Live or independent
PTO Speed 1 (rpm)
540
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
Power (Assumed as the most common information amongst the data)
Coolant Capacity (qts)
Multiple - 14.4, 11.4
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag (Assumed based on the usual use for a Row-Crop tractor)
Manufacture - End Year
1975
Hitch Type
-
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
3595
Operator Station Type
Open operator station
Starter Type
Electric
Brake Type
Mechanical dry disc
Hydraulic System Type
Open center
